Sugatsune HG-DTB4-R: Detent Torque Hinge (right) - Mirror Stainless Steel

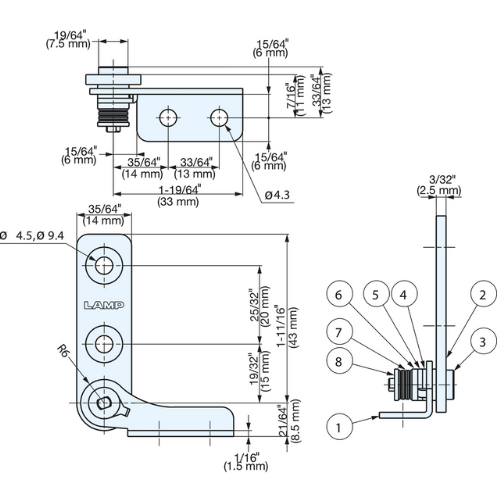

Spec Drawing
Sugatsune HG-DTB4-R: Detent Torque Hinge (right) - Mirror Stainless Steel
Spec Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HG-DTB4-R: Detent Torque Hinge (right) - Mirror Stainless Steel

Sugatsune
|
SKU: suga-HG-DTB4-R
In stock
(0)
$17.11
-15% $20.13 $17.11
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

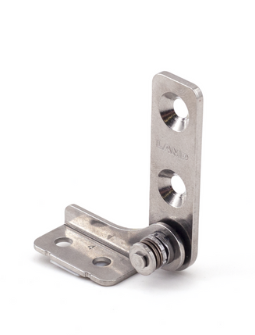

Sugatsune HG-DTB4-R: Detent Torque Hinge (right) in Mirror Stainless Steel finish.

  • Built-in detent feature firmly keeps lid closed
  • No additional catch required
  • Right orientation
  • 304 grade stainless steel
  • Length when closed: 1.5"
  • Torque rating; 3.55 lbs./inch
  • Torque = door weight x .5 x door height
  • Adjustable: No
  • Mounting hardware included: No
  • Fastener type: 4mm or #8 screw

Specifications

Height: 0.63″
Width: 0.75″
