Forms+Surfaces 1500 Series Quadrant Door Pull - 92-1/4" to 100"
Forms+Surfaces 1500 Series Quadrant Door Pull - 92-1/4" to 100"

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Forms+Surfaces

Forms+Surfaces 1500 Series Quadrant Door Pull - 92-1/4" to 100"

SKU: Forms+Surfaces-1500-HDQUA006
(0)
$369.90
-10% $411.00 $369.90
In stock

Ask an expert!

Email 888-566-2748

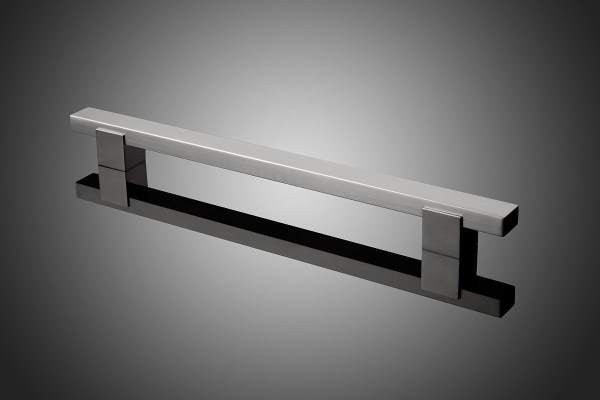

Forms+Surfaces 1500-HDQUA006: 1500 Series Quadrant Door Pull with variable overall length from 92-1/4" to 100".
  • Quadrant door pulls blend superb craftsmanship, bold looks and cost-effective design versatility.

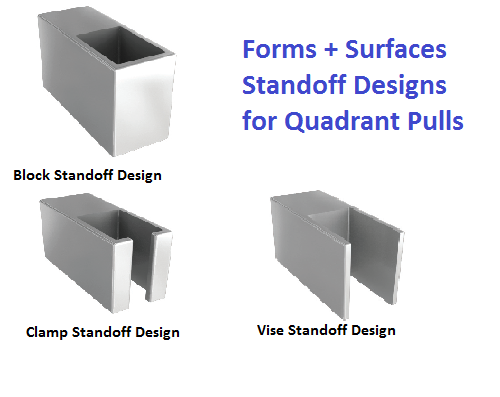

  • Pulls consist of two basic elements; grips (the handle) and standoffs.

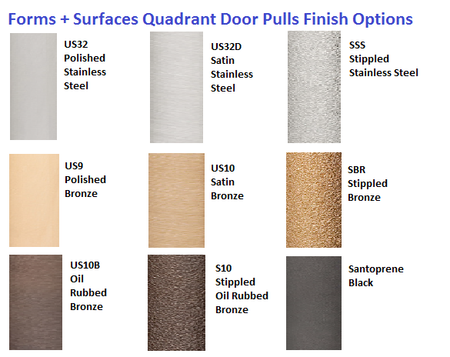

  • Material options include stainless steel, bronze and black santoprene elastomer.
  • Grips, standoffs materials and finishes can be combined in countless ways to create custom looking designs.
  • Rectangular grips can be orientated narrow side facing out (Quadrant 1000 Series) or wide side facing out (Quadrant 1500 Series).
  • Overall length from 92-1/4" to 100".
  • Center to center length is variable.
  • To avoid flexing, center to center mounting lengths should be no more than 87" for stainless steel grips and 75" center to center for bronze grips.
  • Longer center to center lengths will require an intermediate standoff.

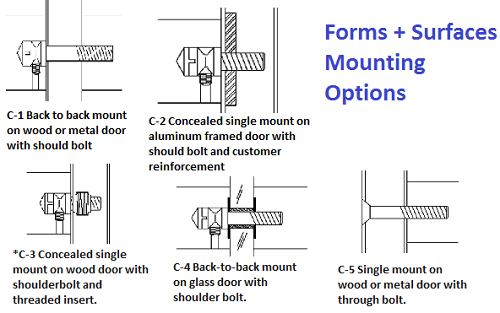

  • All standoff options may be single mounted on wood or metal doors.
  • May be back-to-back mounted on wood, metal or glass doors.
  • For back-to-back applications a quantity of 2 pulls must be ordered.

NOTE: Forms+Surfaces door pulls are made to order and are not returnable
Height: 116″
Width: 0″
Depth: 2.64″
