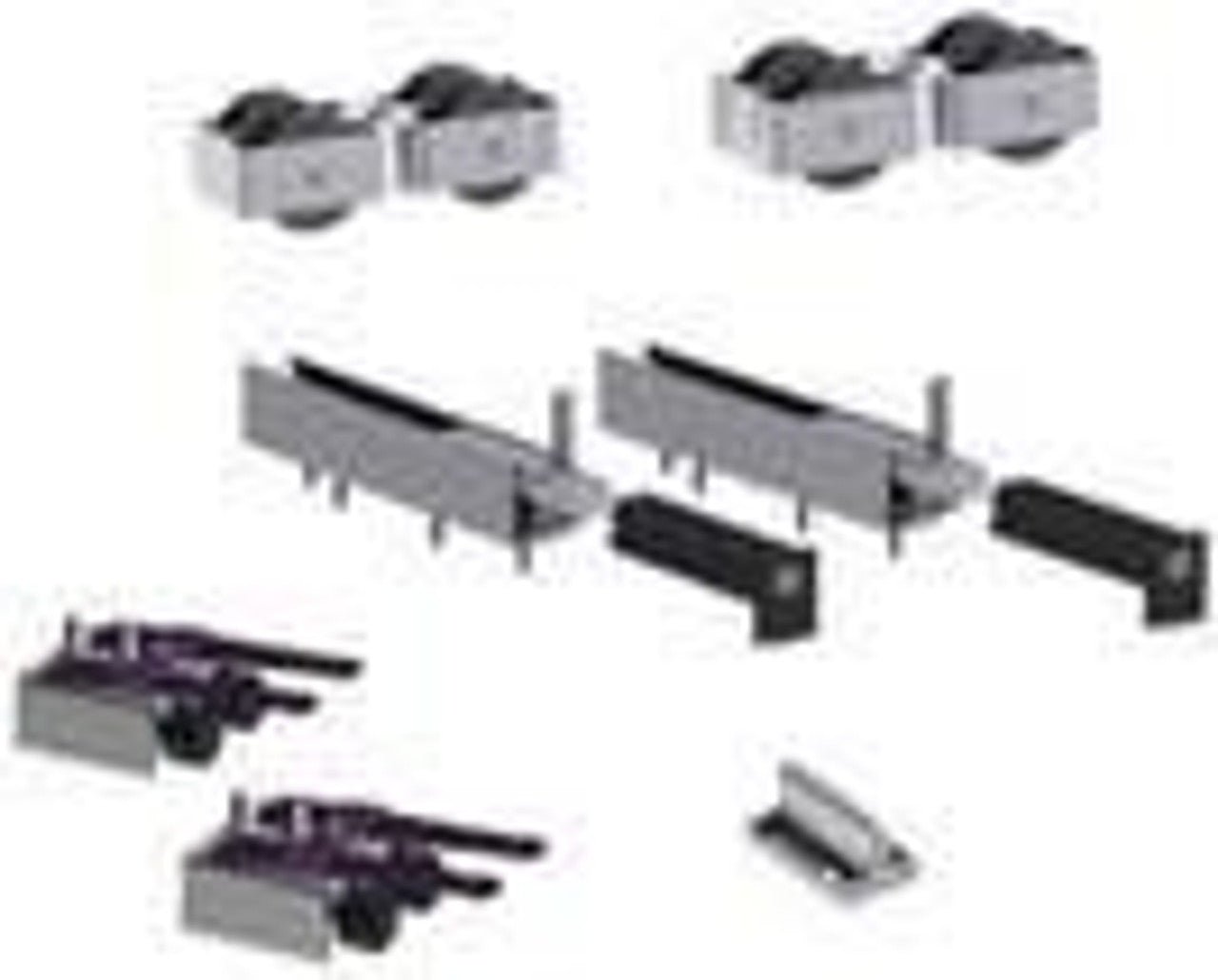

Sugatsune SDR-A125TR-PRT: SDR-A125 Top Recessed Mount Sliding Door Hardware Kit.
- Standard close, no dampening feature
- Rollers are recess-mounted into top of door
- Double rollers with ball bearings
- Low-profile minimum gap of 1/8" at top of door
- Vertical adjustment: +/- 1/16"
- Ceiling or barn door style mounting options
- 3000mm mounting track must be ordered separately for complete hardware set, part number: suga-SDR-A125-3000
Door dimensions:
- Maximum door weight: 275 lbs.
- Minimum door thickness:1-3/8"
- Minimum door width: 19-11/16"
Optional Parts (order separately):
- 3000mm aluminum track for false ceiling (order instead of suga-SDR-A125-3000): suga-SDR-A125-12532
- Clip-on facia: suga-SDR-A125-10433
- Clip-on bracket for timber: suga-SDR-A-6056
- End caps for top track (pair): suga-SDR-A125-12557
- Aluminum Separator: suga-SDR-A81-6961
- Bottom Guide Roller: suga-SDR-A-4140
- Bottom guide channel for roller: suga-SDR-A-4131
- Wall mount short bracket (Order 1 for every 8" of top track plus one for each end): suga-SDR-A300-30064
