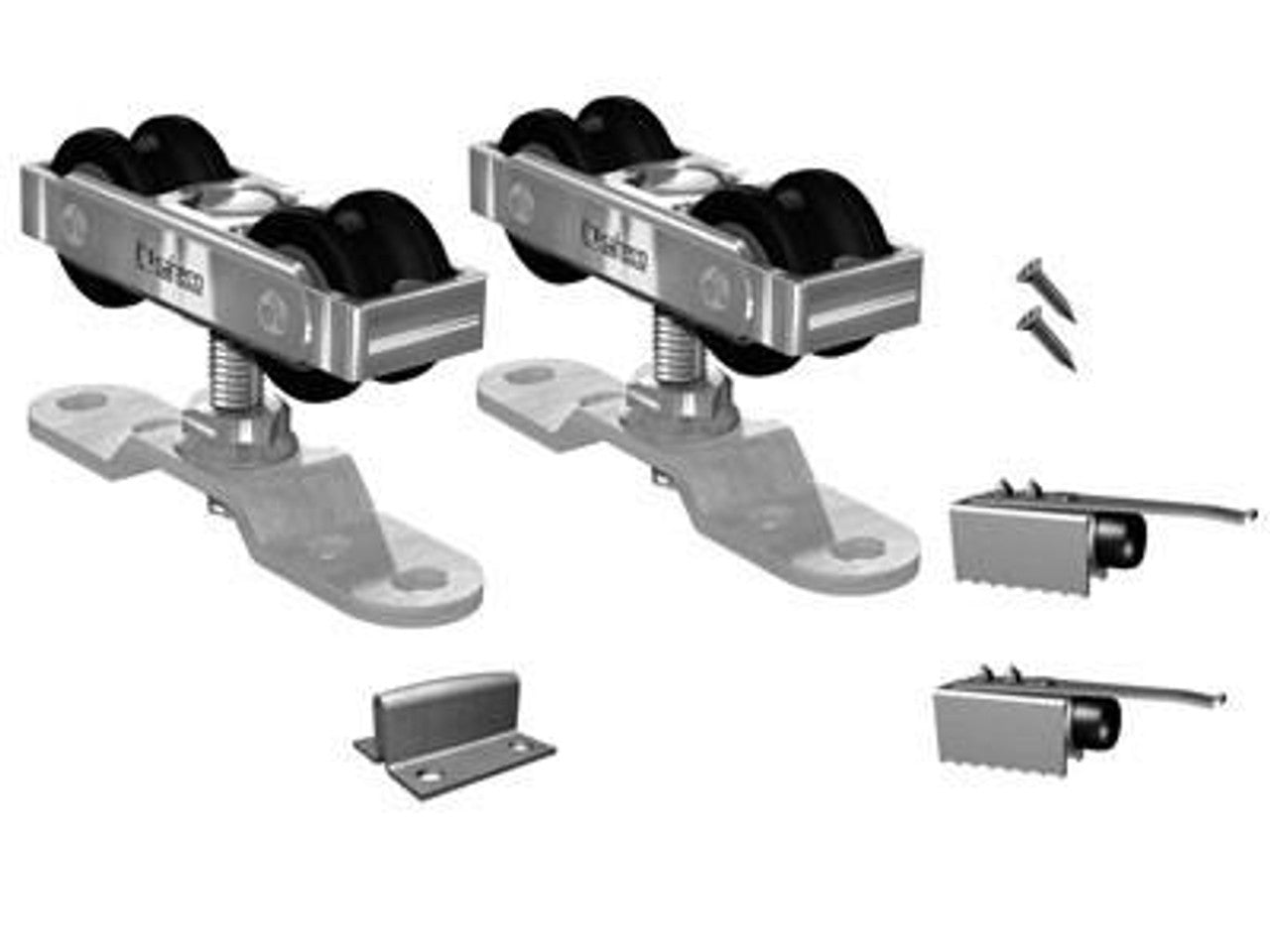

SDR A125 Top Surface Mount Sliding Door Hardware Kit
Regular price
$184.79
Regular price
-15%
$217.40
Sale price
$184.79
IMPORTANT: This item has specific information available that needs to be reviewed before purchasing. Click the button below to see more.
View Complete Product Information HereCouldn't load pickup availability
Have Questions? Ask an Expert!
Sugatsune SDR-A125TS-PRT: SDR-A125 Top Surface Mount Sliding Door Hardware Kit.
- Standard close, no dampening feature
- Rollers are surface-mounted to top of door
- Double rollers with ball bearings
- Vertical adjustment: +/- 1/8"
- Ceiling or barn door style mounting options
- 3000mm mounting track must be ordered separately for complete hardware set, part number: suga-SDR-A125-3000
Door dimensions:
- Maximum door weight: 275 lbs.
- Minimum door thickness:1-3/8"
- Minimum door width: 19-11/16"
Optional Parts (order separately):
- 3000mm aluminum track for false ceiling (order instead of suga-SDR-A125-3000): suga-SDR-A125-12532
- Clip-on facia: suga-SDR-A125-10433
- Clip-on bracket for timber: suga-SDR-A-6056
- End caps for top track (pair): suga-SDR-A125-12557
- Aluminum Separator: suga-SDR-A81-6961
- Bottom Guide Roller: suga-SDR-A-4140
- Bottom guide channel for roller: suga-SDR-A-4131
- Wall mount short bracket (Order 1 for every 8" of top track plus one for each end): suga-SDR-A300-30064
