Home » Sugatsune XL-GH03-48-8GC: 54mm Half Overlay Glass Door Hinge - Gold
Sugatsune XL-GH03-48-8GC: 54mm Half Overlay Glass Door Hinge - Gold

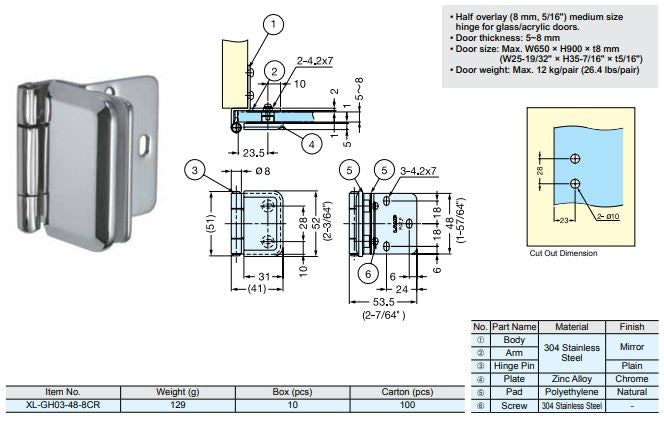

Spec Sheet
Sugatsune XL-GH03-48-8GC: 54mm Half Overlay Glass Door Hinge - Gold

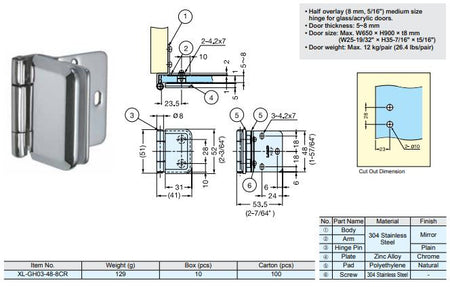

Spec Sheet

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune XL-GH03-48-8GC: 54mm Half Overlay Glass Door Hinge - Gold

Sugatsune
|
SKU: suga-XL-GH03-48-8GC
Only 2 left
(0)
$36.47
-15% $42.90 $36.47

IMPORTANT: This item has specific information available that needs to be reviewed before purchasing. Click the button below to see more.

View Complete Product Information Here
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune Hardware XL-GH03-48-8GC: 54mm Half Overlay Glass Door Hinge in Gold finish.
  • For half overlay glass/acrylic doors
  • 5/16" overlay
  • Door dimensions:
    -Maximum width: 25-19/32"
    -Maximum height: 35-7/16"
    -Thickness: 3/16" to 5/16"
  • Load capacity: 26.4 lbs./pair
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 2.01″
Width: 1.61″
Depth: 2.01″
