Description

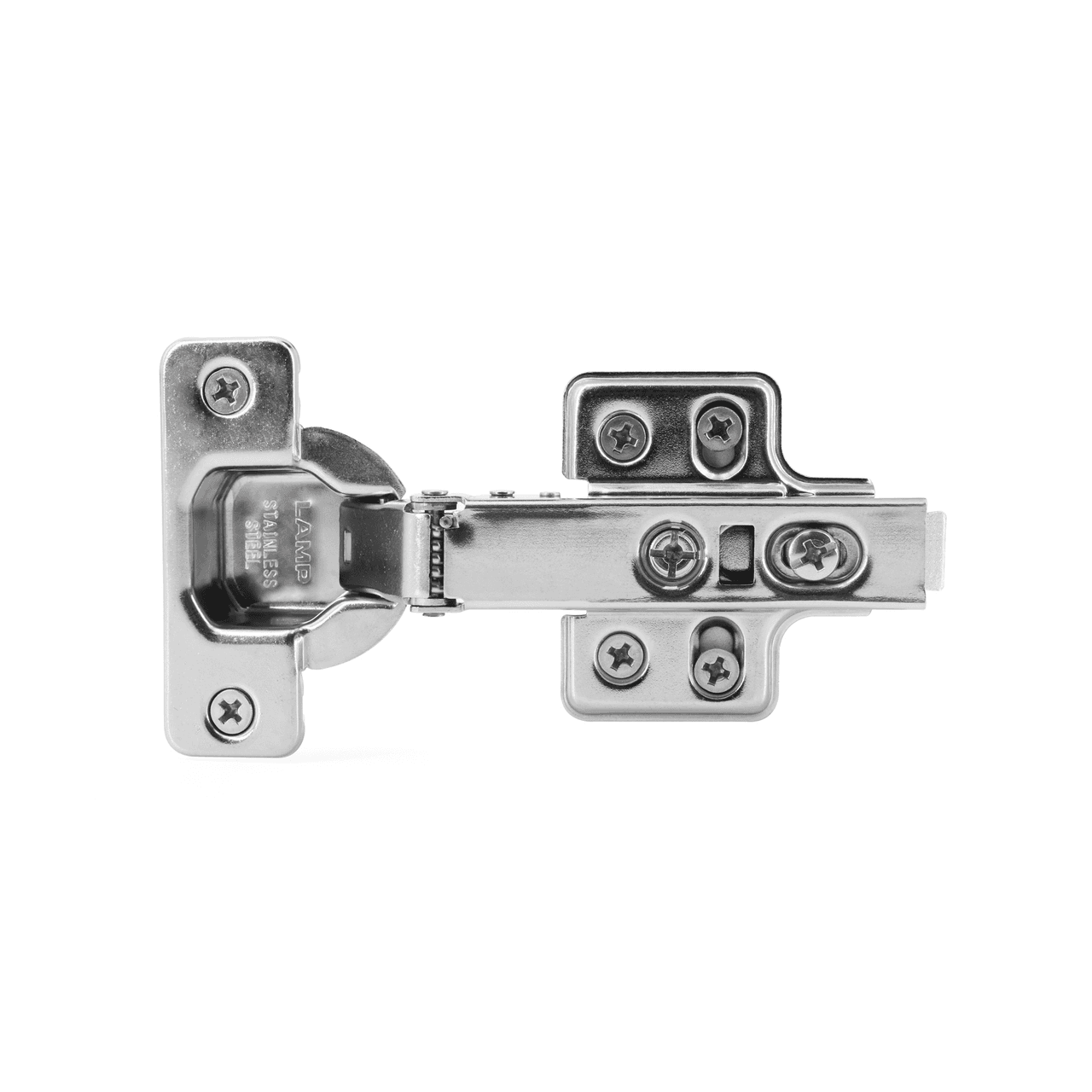

Sugatsune 180SUS-C46-19T: Self-Close Concealed Cabinet Hinge in Polished Stainelss Steel.

• 304 grade stainless steel construction for outdoor and salt environments
• For overlay doors
• Resin casing protects damper from environmental damage
• Convenient clip-on mounting system with easy release dismount
• Self-closing to firmly close door
• Mounting plate required for complete set, sold separately. Order suga-180SUS-6P
• 3-way adjustability: overlay, depth and vertical
• Mounting hardware included

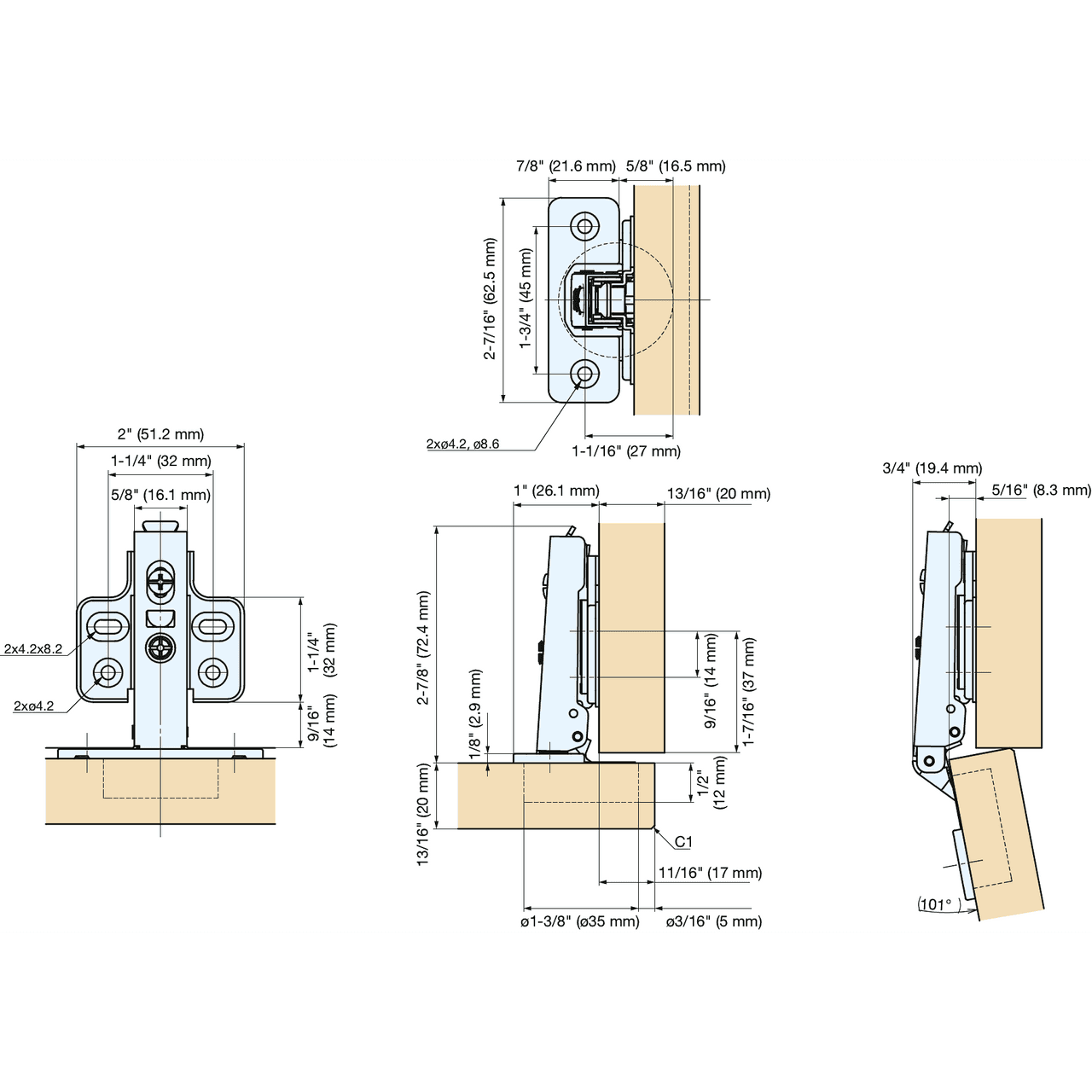

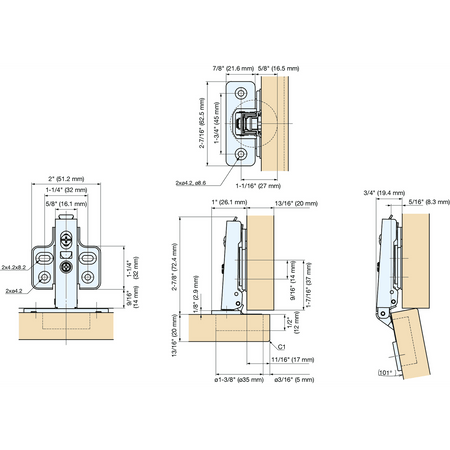

  Door Dimensions

  • Overlay: 9-16" to 3/4"
  • Maximum opening angle: 105°
  • Door thickness: 9/16" to 13/16"
  • Maximum weight, 2 hinges: 11 lbs.
  • Maximum weight, 3 hinges: 17.6 lbs.
  • Maximum weight, 4 hinges: 24.3 lbs.
  • Maximum weight, 5 hinges: 28.6 lbs.
  • Door height with 2 hinges: 17-3/4" to 35-7/16"
  • Maximum height, 3 hinges: 63"
  • Maximum height, 4 hinges: 78-3/4"
  • Maximum height, 5 hinges: 94-1/2"

Click here to view catalog

Specifications

Height: 3.3228346456692917″
Width: 2.4606299212598426″
Depth: 1.0275590551181104″
Country of Origin: China
