Description

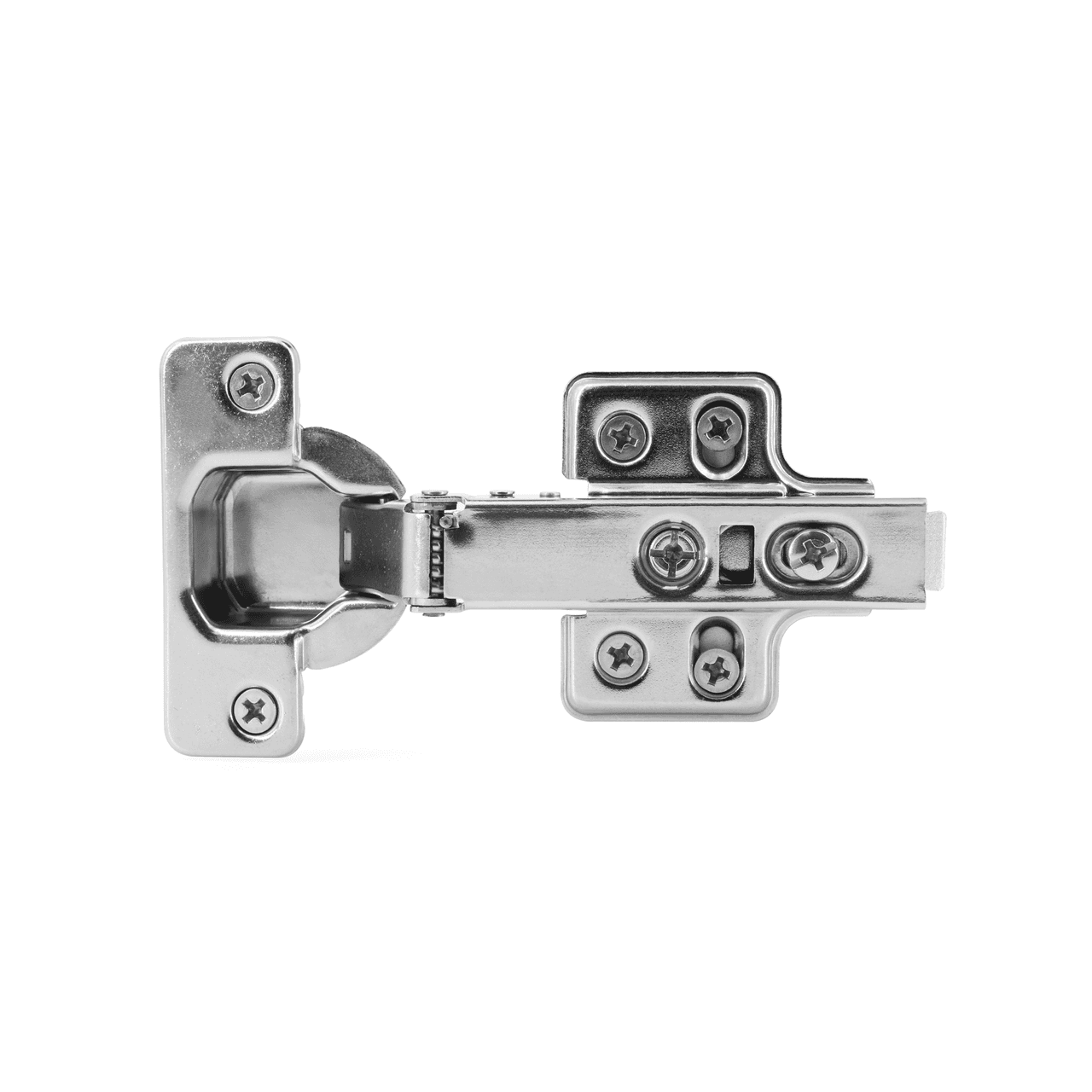

Sugatsune 180SUS-D46-19T: Soft-Close Concealed Euro-Style Cabinet Hinge in Polished Stainless Steel.

• 304 grade stainless steel allows for use in outdoor environments
• Resin casing protects damper from corrosive elements
• Convenient clip-on mounting system with easy-release dismount lever
Mounting plate (required for complete set) sold separately. Order part number suga-180SUS-P6T
• Soft-close feature helps prevent door slamming shut
• For overlay doors
• Overlay amount: 9-16" to 13/16"
• 105° opening angle
• 3-way adjustable: overlay, depth, vertical
• Includes stainless steel mounting screws
• Maximum door dimensions with 2 hinges: 17-3/4" - 35-7/16" high x 17-3/4" wide x 11 lbs.
• Maximum door dimensions with 3 hinges: 63" high x 17-3/4" wide x 17.6 lbs.
• Maximum door dimensions with 4 hinges: 78-3/4" high x 17-3/4" wide x 24.3 lbs.
• Maximum door dimensions with 5 hinges: 94-1/2" High x 17-3/4" wide x 28.6 lbs.

Specifications

Height: 3.3228346456692917″
Width: 2.4606299212598426″
Depth: 1.0275590551181104″
Country of Origin: China
