Home » Sugatsune PAS-80: 80mm Overlay Door Pivot Hinge (pair) - Satin Nickel

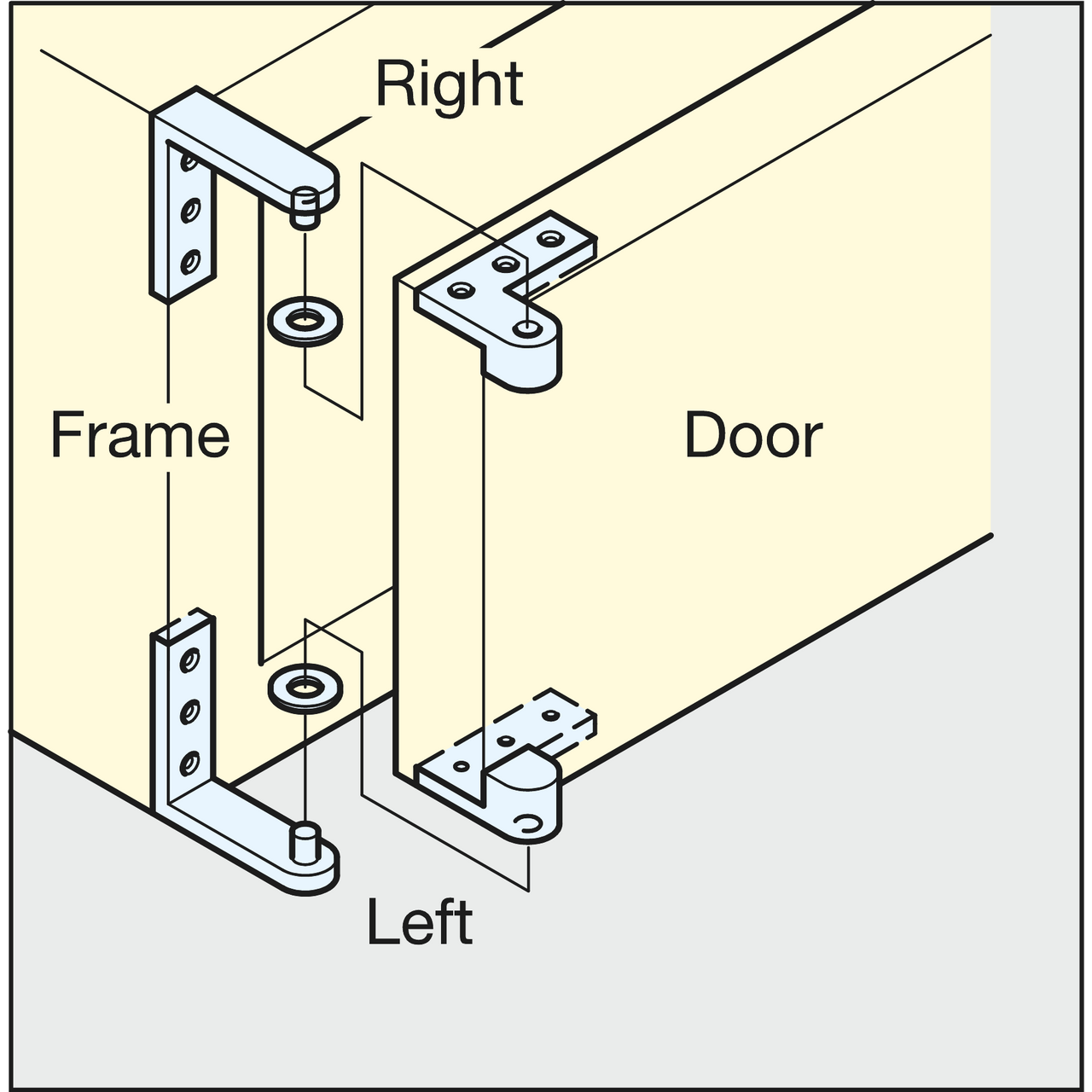

Line Drawing
Sugatsune PAS-80: 80mm Overlay Door Pivot Hinge (pair) - Satin Nickel
Line Drawing
Sugatsune PAS-80: 80mm Overlay Door Pivot Hinge (pair) - Satin Nickel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune PAS-80: 80mm Overlay Door Pivot Hinge (pair) - Satin Nickel

Sugatsune
|
SKU: suga-PAS-80
Out of stock
(0)
$143.74
-15% $169.10 $143.74
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune PAS-80: 80mm Overlay Door Pivot Hinge (pair) in Satin Nickel finish.
  • Sold as a left and right pair, one of each needed per door
  • Door specifications:
    -Maximum width: 17-3/4"
    -Maximum height: 27-9/16"
    -Maximum thickness: 1"
    -Maximum weight: 8.8 lbs./pair
  • Mounting hardware included

Specifications

Height: 70″
Width: 47.5″
Depth: 80″
