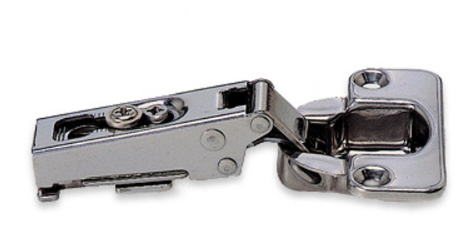

Sugatsune 304B-46/19: 19mm Overlay Free-swing Concealed Hinge - Polished Stainless Steel
Sugatsune 304B-46/19: 19mm Overlay Free-swing Concealed Hinge - Polished Stainless Steel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune 304B-46/19: 19mm Overlay Free-swing Concealed Hinge - Polished Stainless Steel

Sugatsune
|
SKU: suga-304B-46/19
In stock
(0)
$7.48
-15% $8.80 $7.48
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

Sugatsune 304B-46/19: 19mm Overlay Free-swing Concealed Hinge - Polished Stainless Steel

  • 19mm Overlay
  • 100 Degree opening
  • 304 grade stainless steel

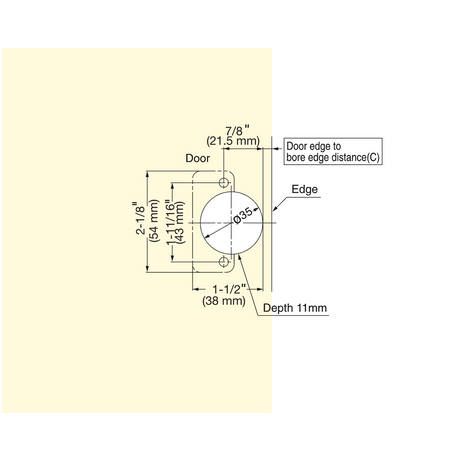

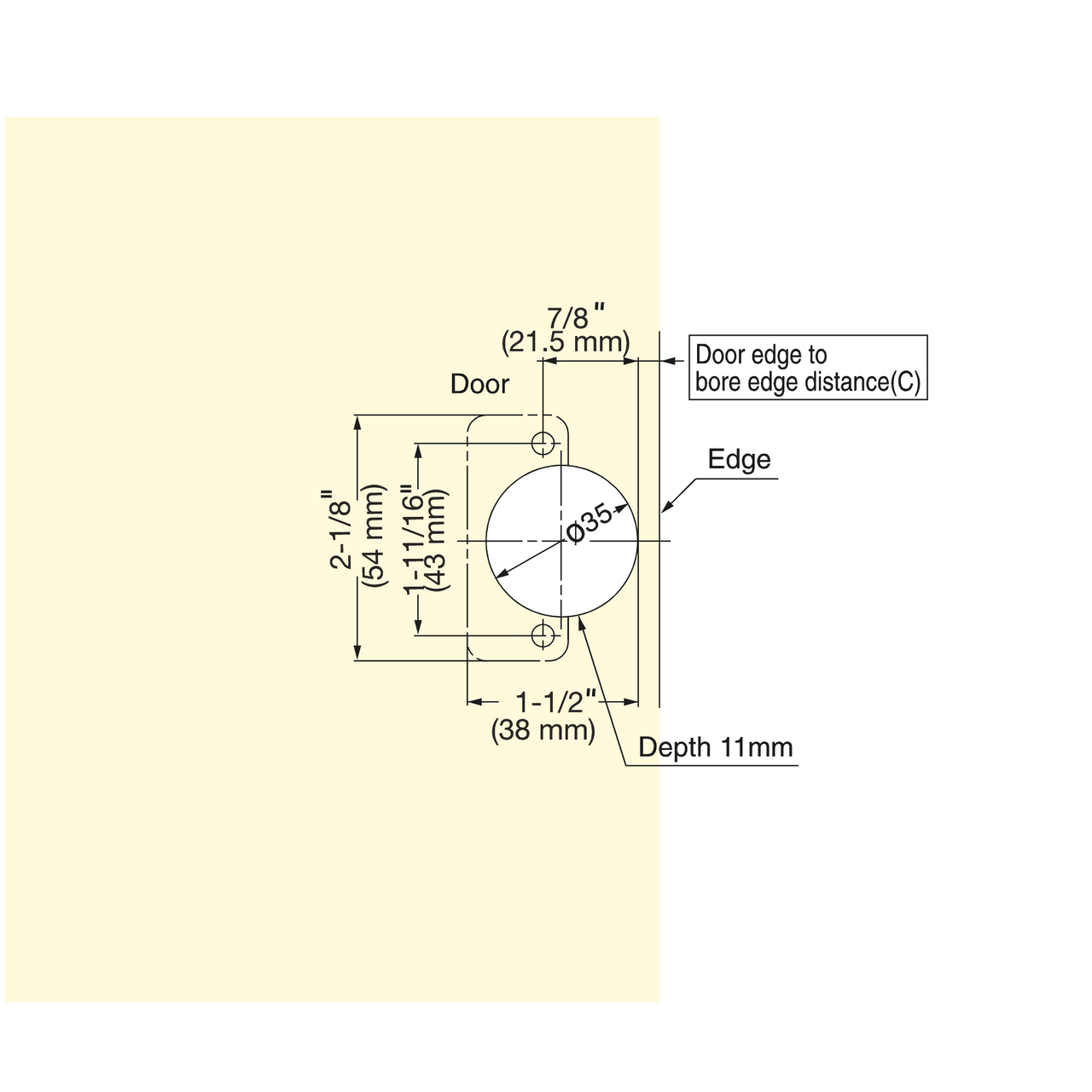

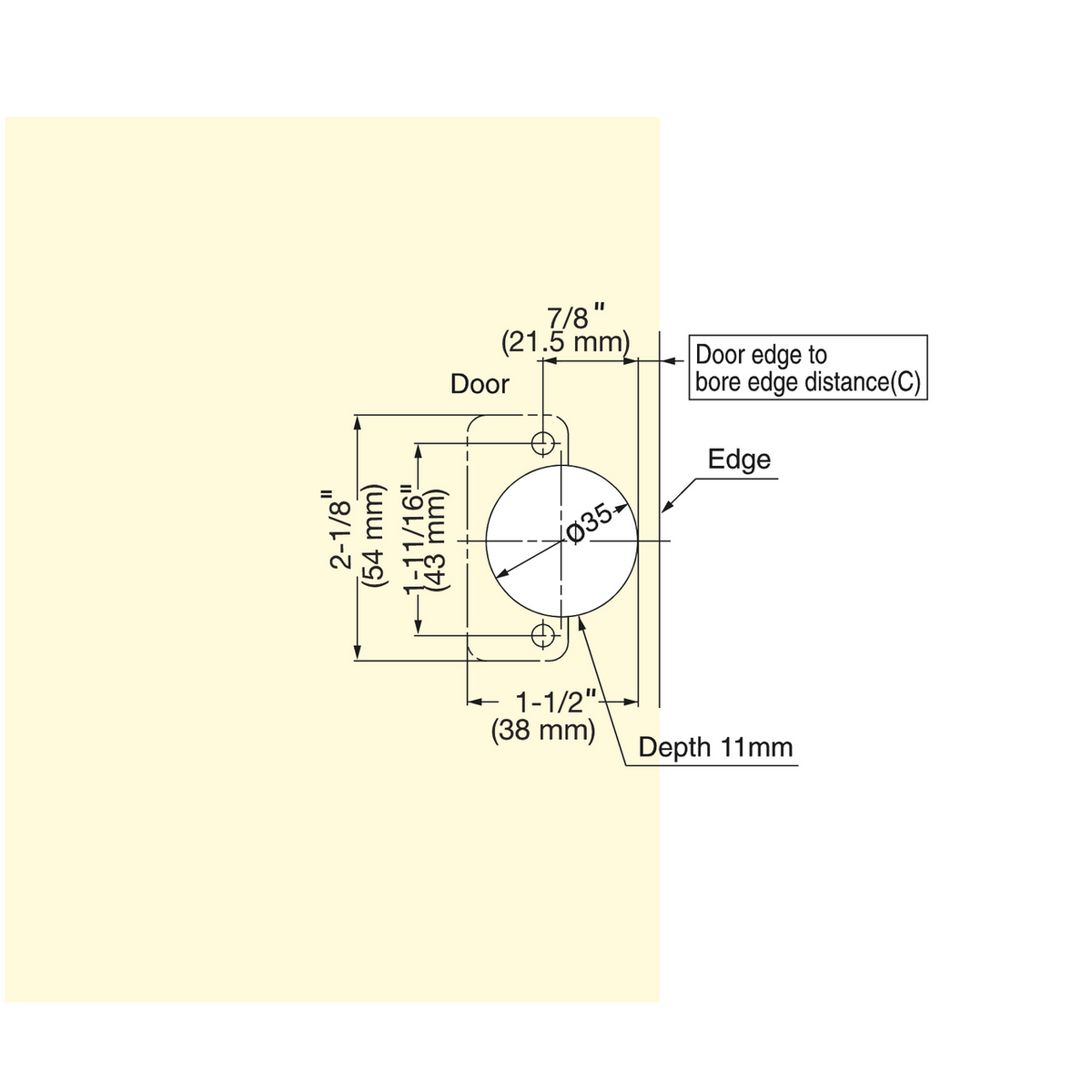

  • Cup diameter: 35mm
  • Bore depth: 11mm
  • Hinges should be installed within 4" of top and bottom edges of door
  • Install at least 12" apart
  • Lubricate after installation and periodically thereafter
  • Door Dimensions:
    -Maximum width: 17-3/4"
    -Thickness: 3/4"
  • Maximum height and weight:
    -2 hinges: 35-1/2" and up to 11 lbs.
    -3 hinges: 63" and up to 17.5 lbs.
    -4 hinges: 73-3/4" and up to 24 lbs.
    -5 hinges: 94-1/2" and up to 28.5 lbs.
  • Mounting plate required, sold separately, order part number: suga-304B-P3A, suga-304B-P4A/32 or suga-304B-P4A/32-3W
  • Face frame cabinet mounting bracket available, sold separately. Order part number suga-FFCB-HG-1
  • Mounting screws included

Specifications

Height: 2.13″
Width: 1.5″
