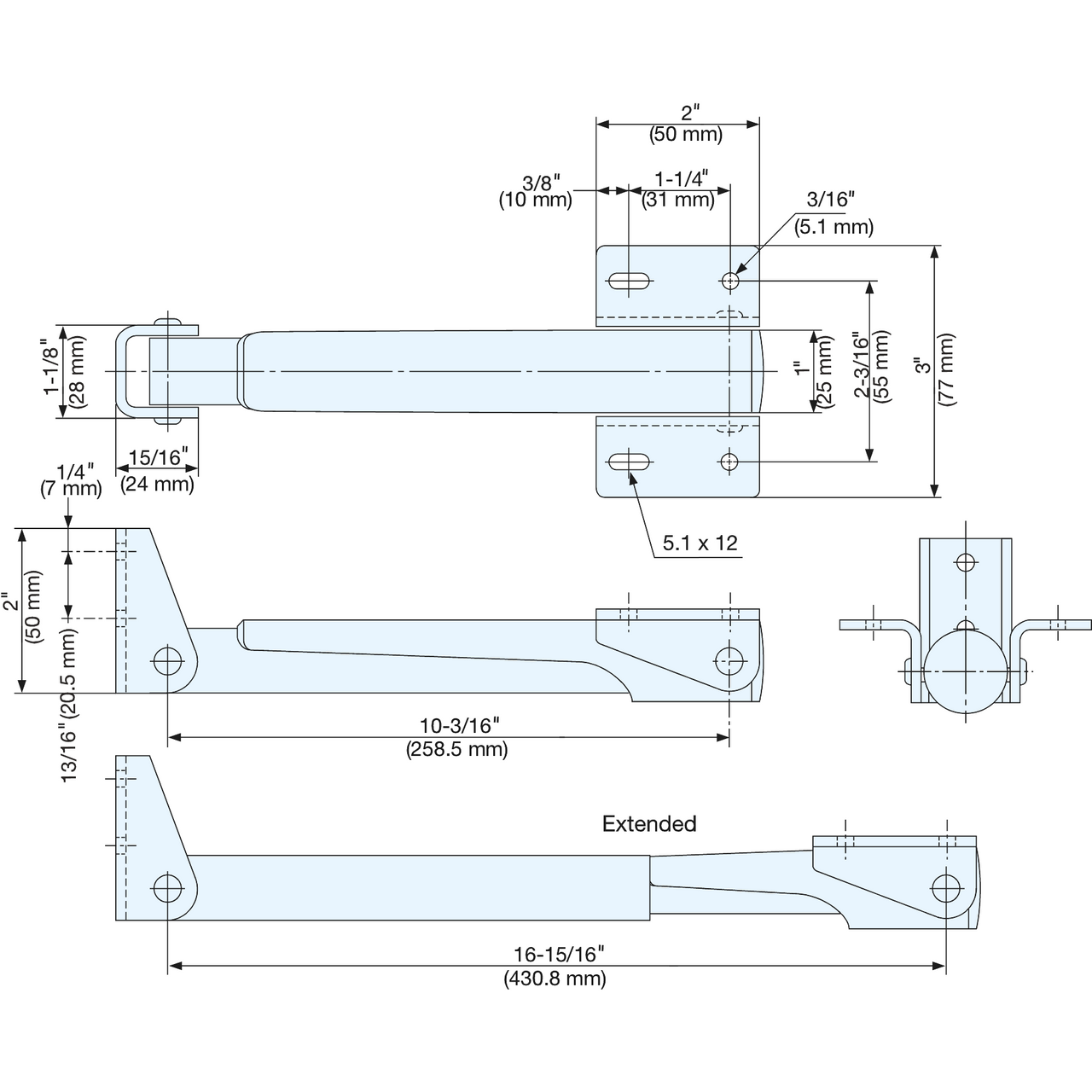

Line Drawing
Sugatsune 38845-25/BLK: 430mm Folding Bracket - Black Aluminum
Sugatsune 38845-25/BLK: 430mm Folding Bracket - Black Aluminum
Line Drawing
Line Drawing
Sugatsune 38845-25/BLK: 430mm Folding Bracket - Black Aluminum
Line Drawing
Sugatsune 38845-25/BLK: 430mm Folding Bracket - Black Aluminum
Sugatsune 38845-25/BLK: 430mm Folding Bracket - Black Aluminum
Line Drawing
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune 38845-25/BLK: 430mm Folding Bracket - Black Aluminum

Sugatsune
|
SKU: suga-38845-25/BLK
In stock
(0)
$131.75
-15% $155.00 $131.75
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

Sugatsune 38845-25/BLK: 430mm Folding Bracket in Black Aluminum

  • Automatically locks in the open position.
  • Press lever to release.
  • Extended length is 430.8mm.
  • For panel thickness from 19/32" to 1-3/8"
  • Load capacity: 132 lbs. per bracket
  • For panel widths up to 23-5/8" use 1 bracket.
  • For panels from 23-5/8" to 51-3/16" (maximum width) use 2 brackets.
  • Mounting hardware not included.
Click here to view catalog

Specifications

Height: 1.97″
Width: 17.56″
Depth: 3.03″
