Sugatsune PH-80: 80mm Inset Door Pivot Hinge (pair) - Satin Nickel

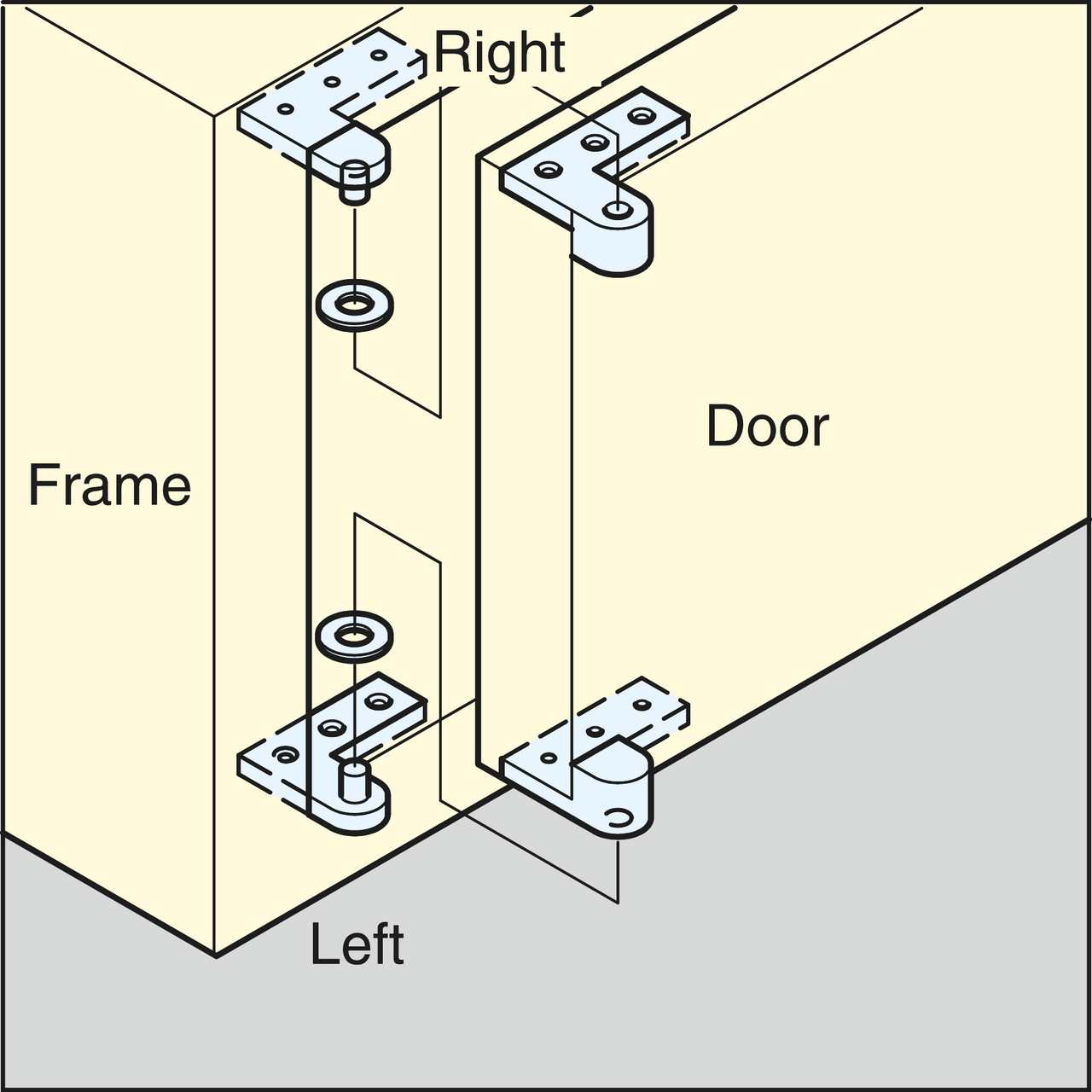

Line Drawing
Sugatsune PH-80: 80mm Inset Door Pivot Hinge (pair) - Satin Nickel
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune PH-80: 80mm Inset Door Pivot Hinge (pair) - Satin Nickel

Sugatsune
|
SKU: suga-PH-80
In stock
(0)
$129.03
-15% $151.80 $129.03

IMPORTANT!

This item has specific information available that should be reviewed before purchasing. Please click the button below to see more.

View Sugatsune Catalog
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

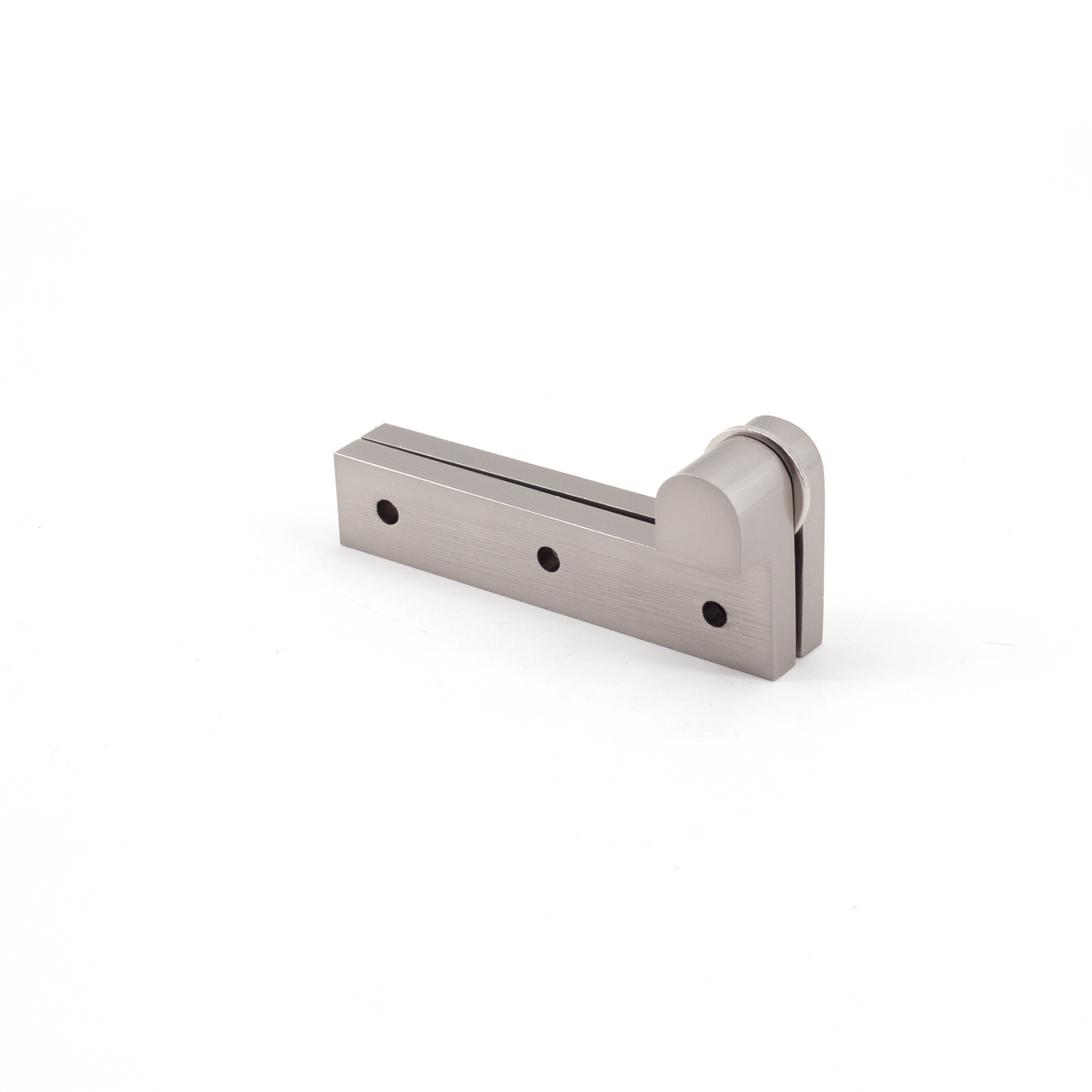

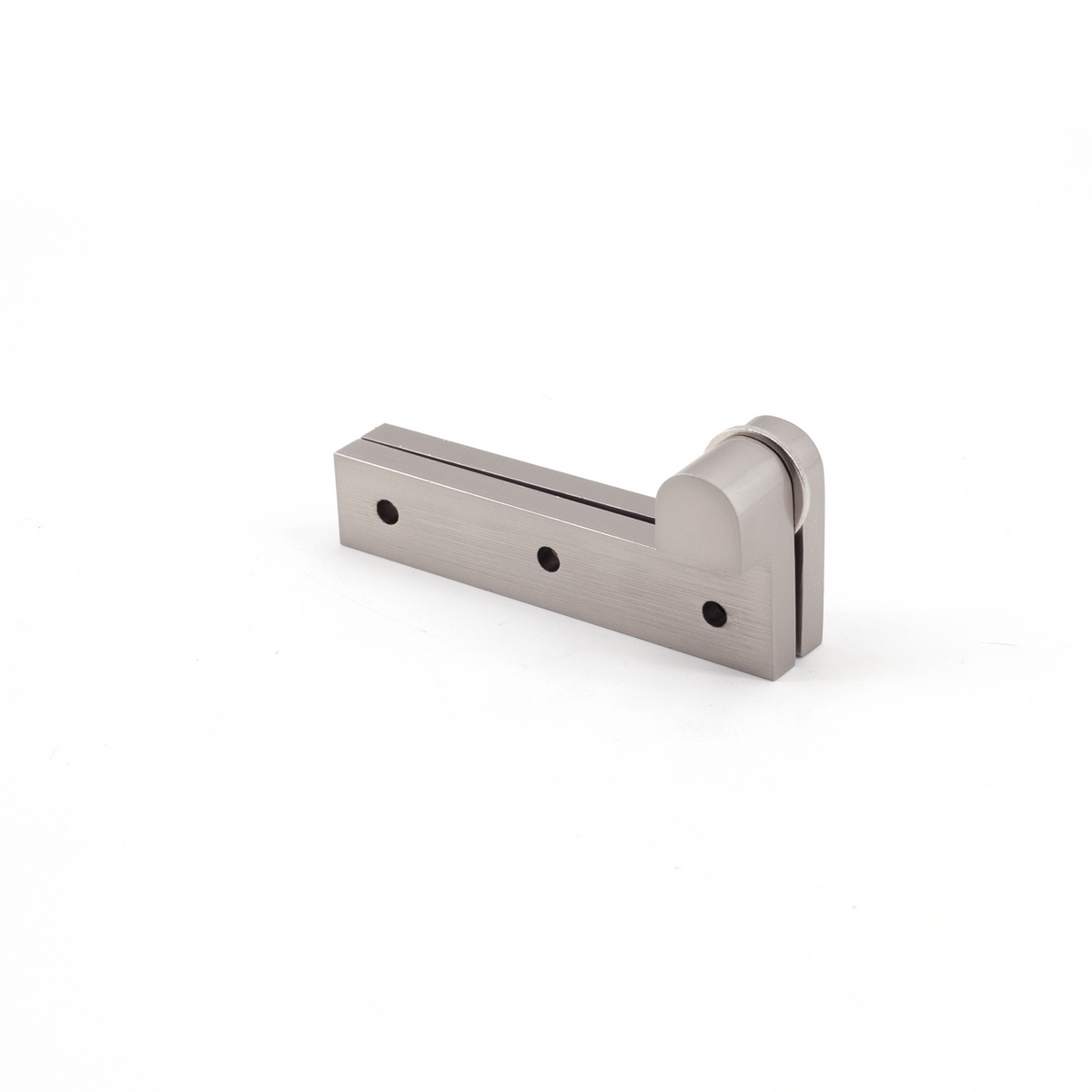

Sugatsune PH-80: 80mm Inset Door Pivot Hinge (pair) in Satin Nickel finish.

  • Intended for smaller cabinetry applications
  • Sold as a pair, left and right
  • One pair needed per door
  • Door dimensions:
    -Maximum width: 17-3/4"
    -Maximum height: 27-9/16"
    _Maximum weight: 5.7 lbs./pair
    -Minimum thickness: 35/64"
  • Mounting hardware included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 22″
Width: 33.75″
Depth: 80.75″
