Sugatsune PL-60L: 61mm Overlay Door Pivot Hinge (left) - Stainless Steel
Sugatsune PL-60L: 61mm Overlay Door Pivot Hinge (left) - Stainless Steel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune PL-60L: 61mm Overlay Door Pivot Hinge (left) - Stainless Steel

Sugatsune
|
SKU: suga-PL-60L
In stock
(0)
$8.08
-15% $9.50 $8.08

IMPORTANT!

This item has specific information available that should be reviewed before purchasing. Please click the button below to see more.

View Sugatsune Catalog
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune PL-60L: 61mm Overlay Door Pivot Hinge in plain Stainless Steel.
  • Left hand hinge
  • For overlay door applications
  • Material: 430 grade stainless steel
  • Maximum door size:
    -Width: 17-3/4"
    -Height: 27-9/16"
    -Thickness: 7/8"
    -Weight: 5.7 lbs./pair
  • Order one left hand and one right hand hinge per door. Corresponding right hand hinge is part number suga-PL-60R, sold separately

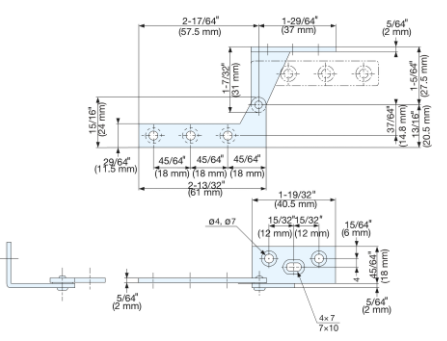

  • Image and drawing show left hand version
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 3.7″
Width: 1.89″
