Home » Sugatsune NSDX-10RK: Adjustable Soft Down Lid Stay (right) - Nickel
Sugatsune NSDX-10RK: Adjustable Soft Down Lid Stay (right) - Nickel

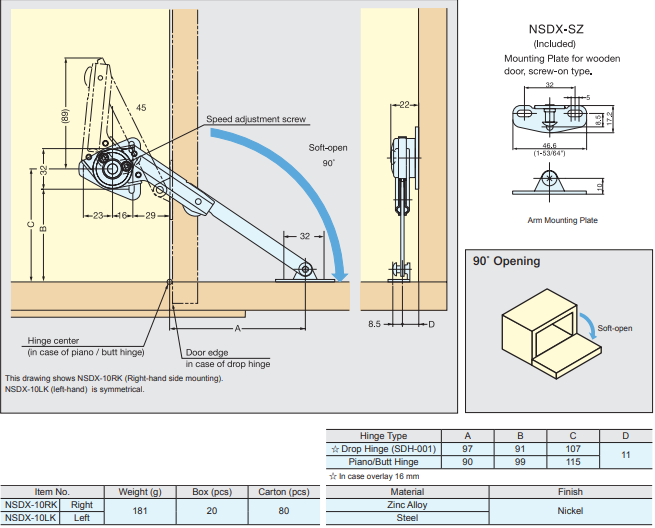

Line Drawing
Sugatsune NSDX-10RK: Adjustable Soft Down Lid Stay (right) - Nickel
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune NSDX-10RK: Adjustable Soft Down Lid Stay (right) - Nickel

Sugatsune
|
SKU: suga-NSDX-10RK
In stock
(0)
$28.05
-15% $33.00 $28.05
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune NSDX-10RK: Adjustable Soft Down Lid Stay (right) in Nickel finish.
  • Sugatsune Lapcon technology
  • For downward opening flap door or panel
  • Designed to hold door in closed position
  • Use with piano, butt or drop hinges
  • Speed adjustment screw located on front for easy adjustment
  • Torque calculation: Torque = door height x 1/2 x door weight
  • Torque per stay: 19 to 60 lbs./inch
  • Torque per pair: 38 to 120 lbs./inch
  • Separate mounting bracket available for face frame cabinets. Order part number suga-FFCB-SD-1
  • Mounting hardware included
