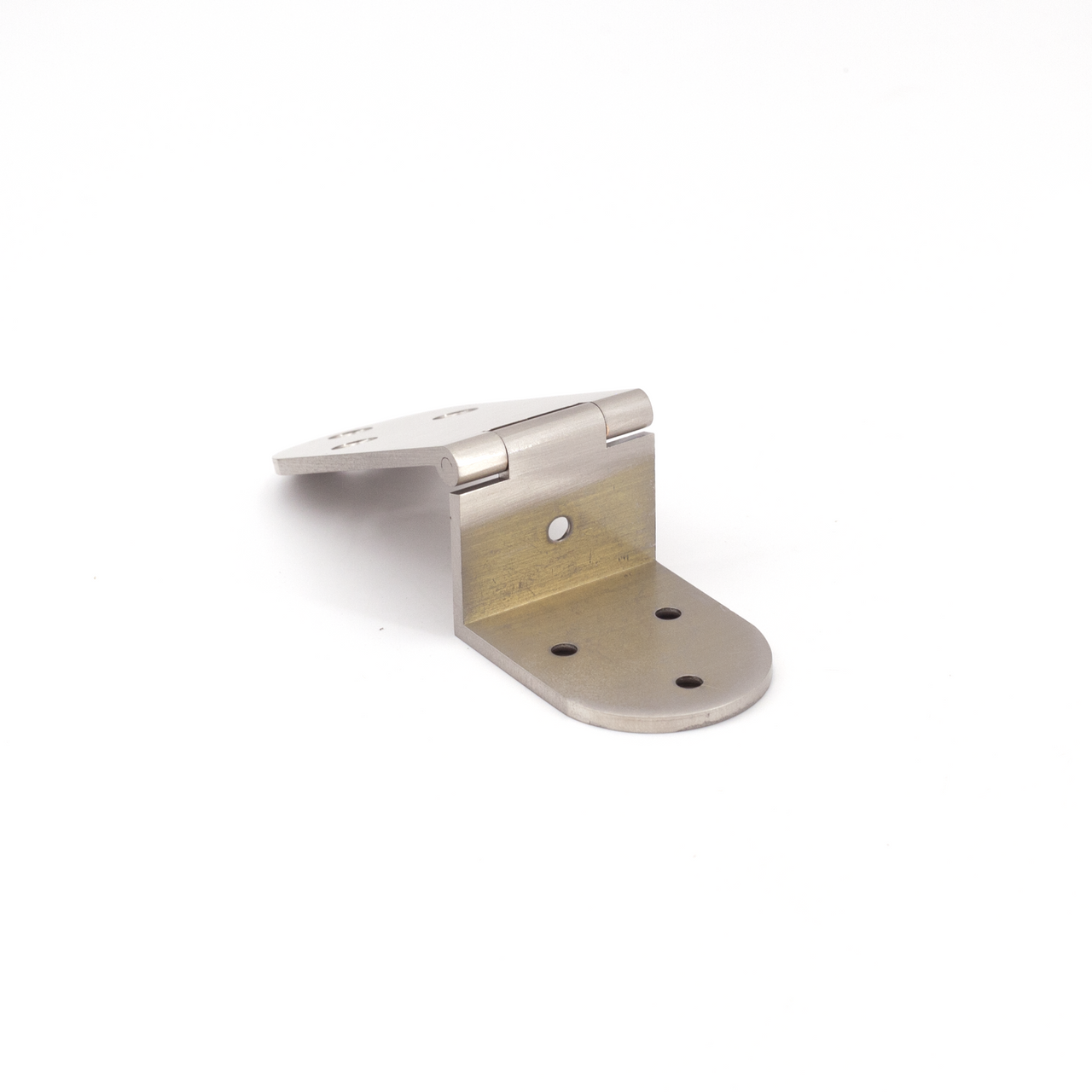

Sugatsune AHA-24/SN: 24.5mm Overlay Door Angle Hinge - Satin Nickel
Sugatsune AHA-24/SN: 24.5mm Overlay Door Angle Hinge - Satin Nickel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune AHA-24/SN: 24.5mm Overlay Door Angle Hinge - Satin Nickel

Sugatsune
|
SKU: suga-AHA-24/SN
In stock
(0)
$65.71
-15% $77.30 $65.71
Click here to view the Sugatsune catalog page for more information about this item
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune AHA-24/SN: 24.5mm Overlay Door Angle Hinge - Satin Nickel
  • Recommended Door Dimensions:
    -Thickness for recess mount: 1-1/16".
    -Thickness for surface mount: 1".
    -Maximum width: 17-3/4".
    -Maximum height: 27-9/16"
    -Maximum weight: 5.7 lbs. per pair.
  • Sold by each.
Click here to view the Sugatsune catalog page for more information about this item

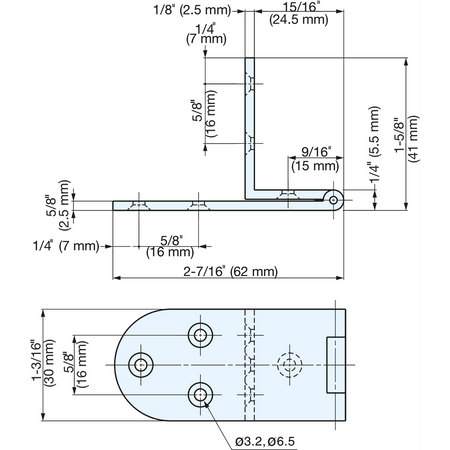

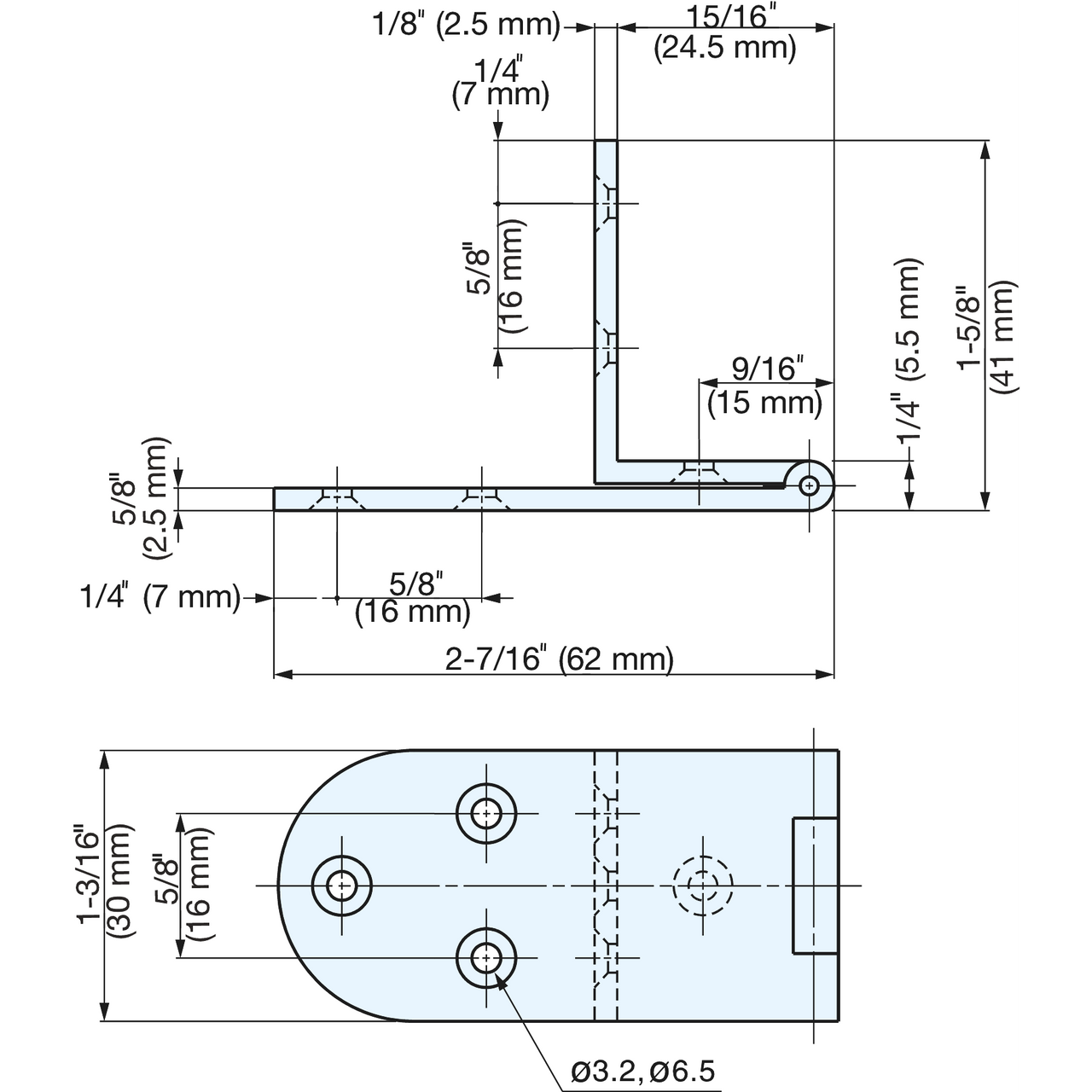

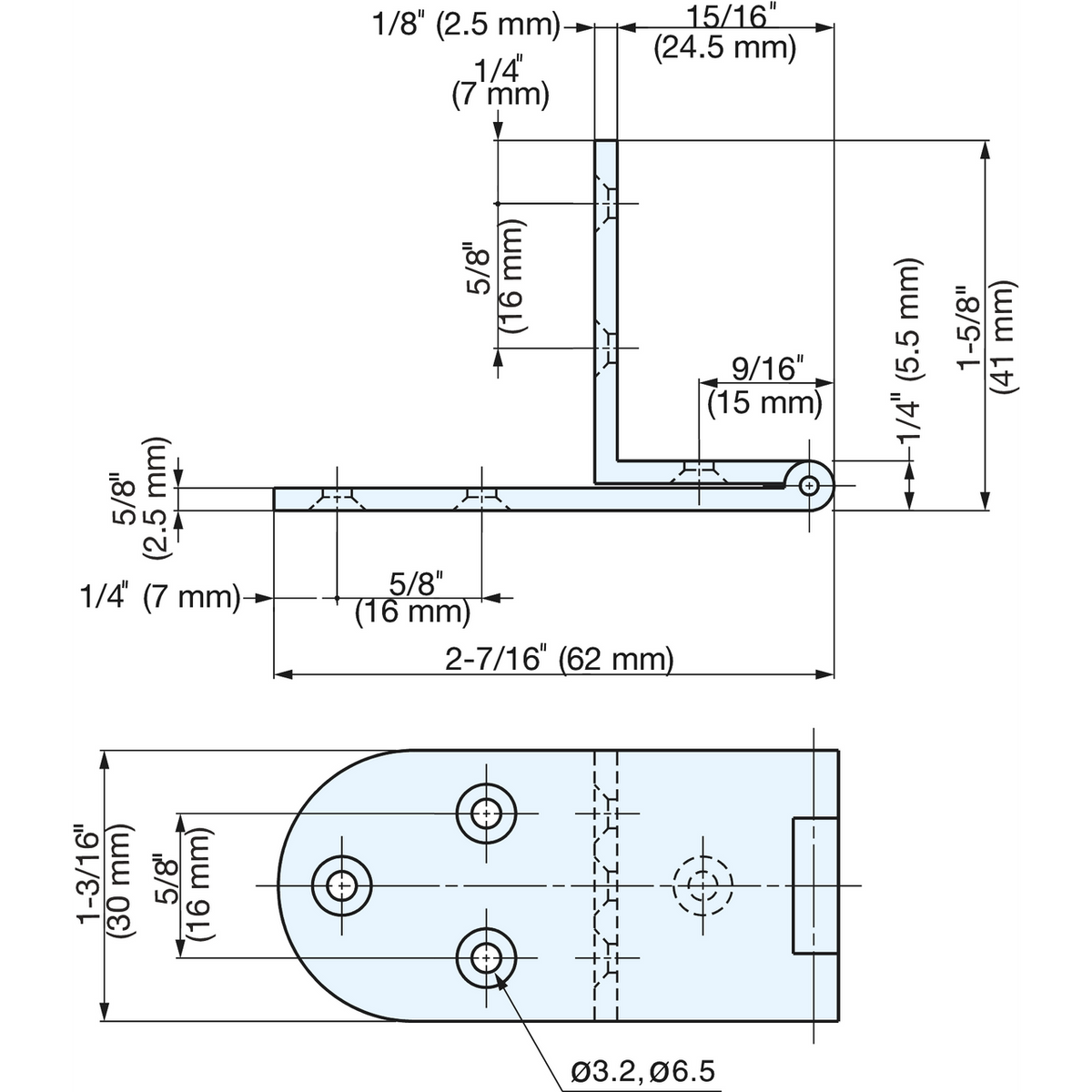

Specifications

Height: 1.18″
Width: 2.44″
