Home » Sugatsune AHW-24-SN: 30.5mm Overlay Door Offset Angle Hinge - Satin Nickel

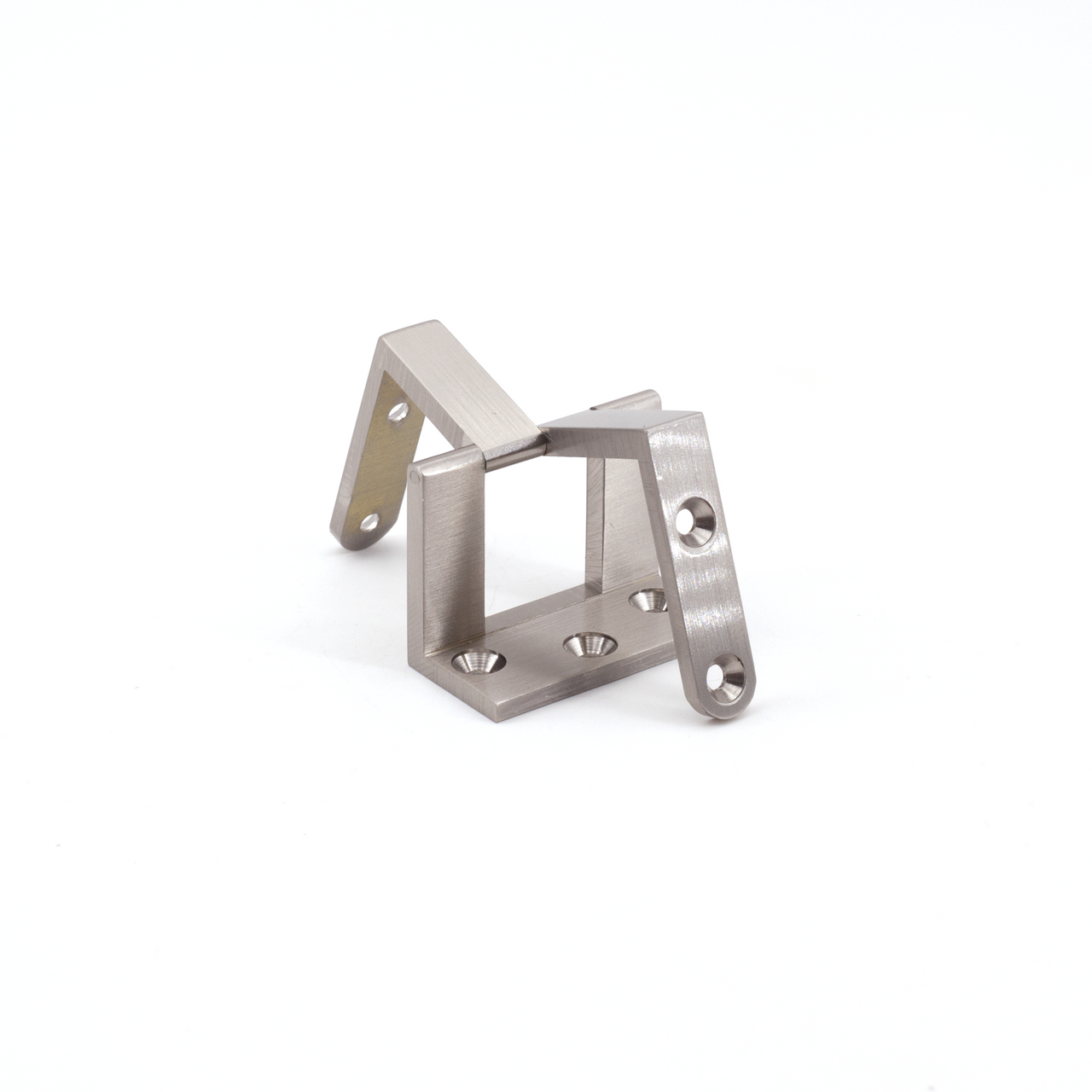

Sugatsune AHW-24-SN: 30.5mm Overlay Door Offset Angle Hinge - Satin Nickel
Sugatsune AHW-24-SN: 30.5mm Overlay Door Offset Angle Hinge - Satin Nickel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune AHW-24-SN: 30.5mm Overlay Door Offset Angle Hinge - Satin Nickel

Sugatsune
|
SKU: suga-AHW-24/SN
Only 1 left
(0)
$57.88
-15% $68.10 $57.88
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune AHW-24-SN: 30.5mm Overlay Door Offset Angle Hinge - Satin Nickel

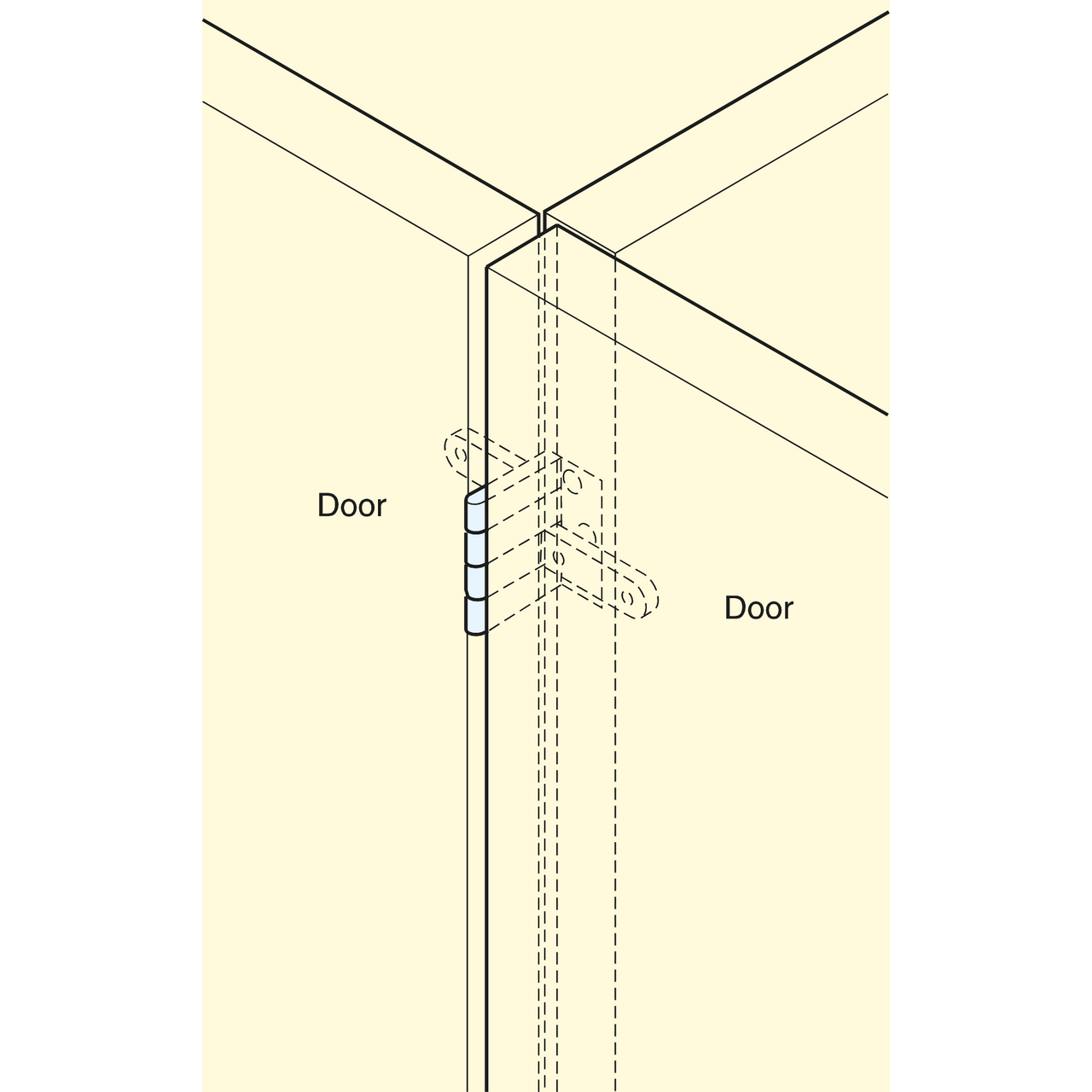

  • Recommended Door Specifications:
    -Thickness for recess mount: 1-1/16"
  • Thickness for surface mount: 1"
    -Width: 17-3/4"
    -Height: 27-9/16"
  • Weight: 5.7 lbs./pair
  • 3.5 x 16 mounting screws included
  • Sold by each

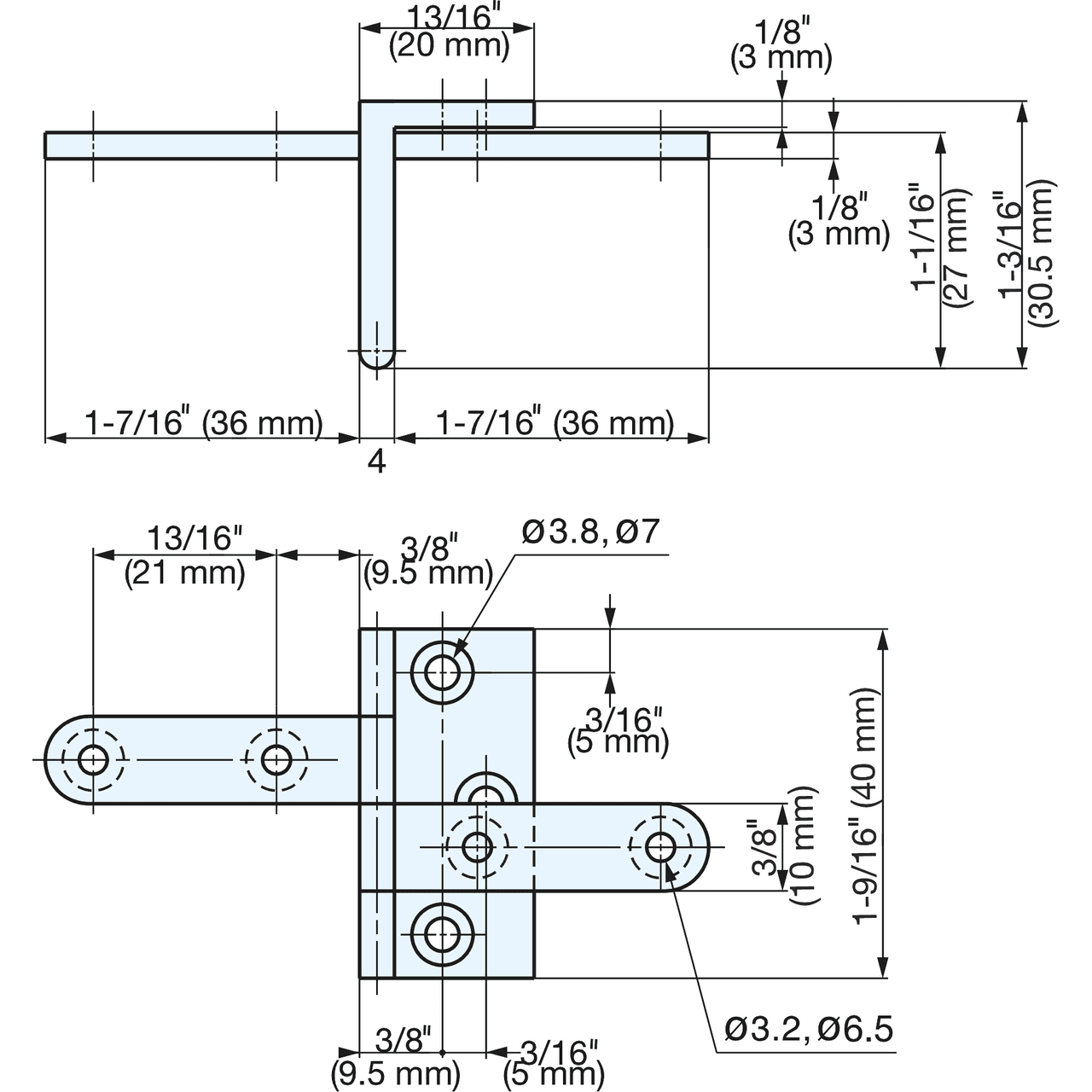

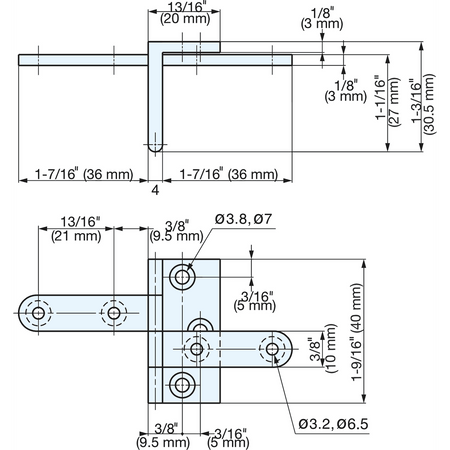

Specifications

Height: 1.57″
Width: 2.99″
