Home » Sugatsune ALT-ST20-D10LL-22:Overlay Soft-Close Pocket Door System Kit with 22" Slides
Sugatsune ALT-ST20-D10LL-22: 22" Overlay Pocket Door System Kit
Sugatsune ALT-ST20-D10LL-22: 22" Overlay Pocket Door System Kit
Sugatsune ALT-ST20-D10LL-22: 22" Overlay Pocket Door System Kit
Sugatsune ALT-ST20-D10LL-22: 22" Overlay Pocket Door System Kit

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune ALT-ST20-D10LL-22:Overlay Soft-Close Pocket Door System Kit with 22" Slides

Sugatsune
|
SKU: suga-ALT-ST20-D10LL-22
Out of stock
(0)
$406.30
-15% $478.00 $406.30
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

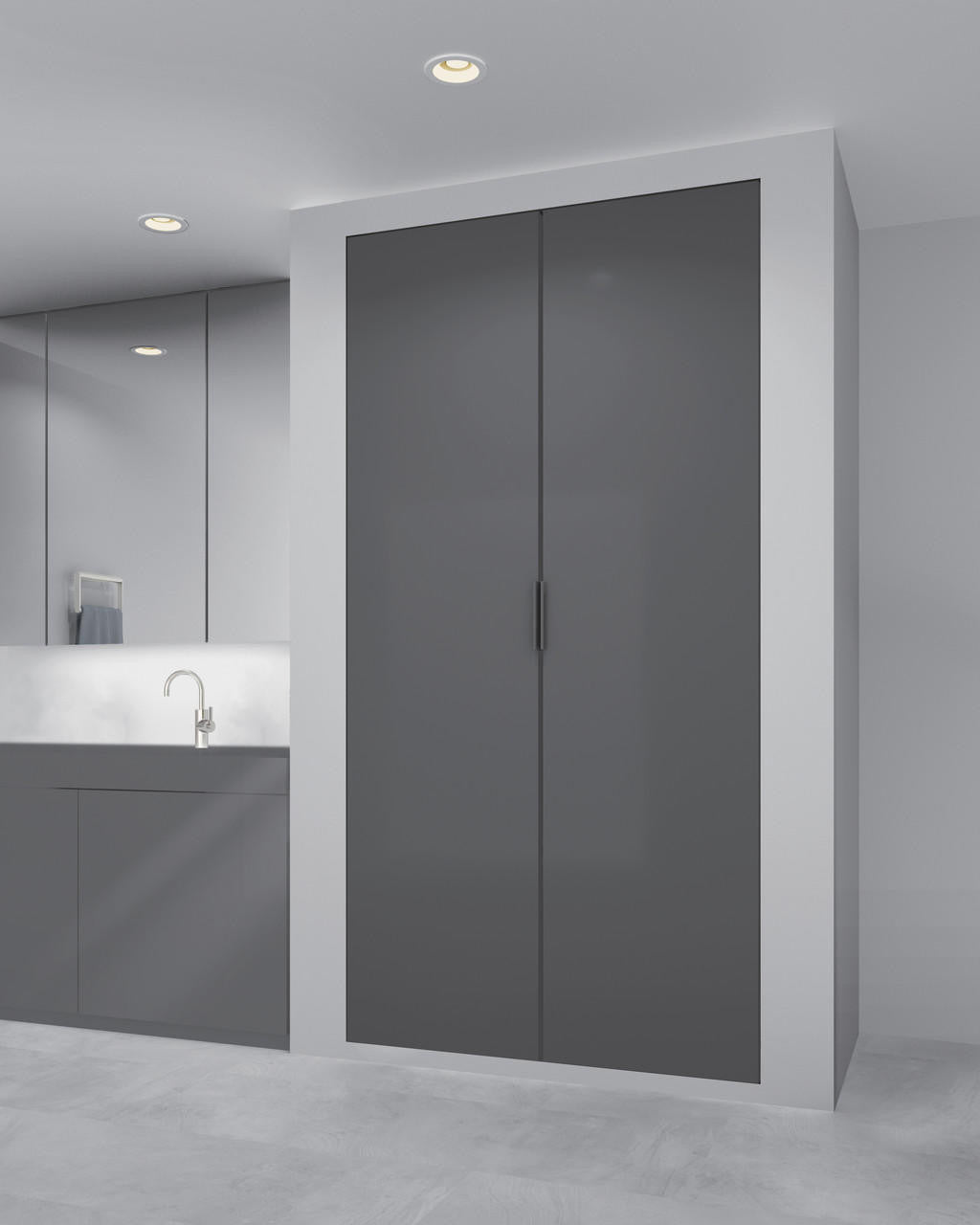

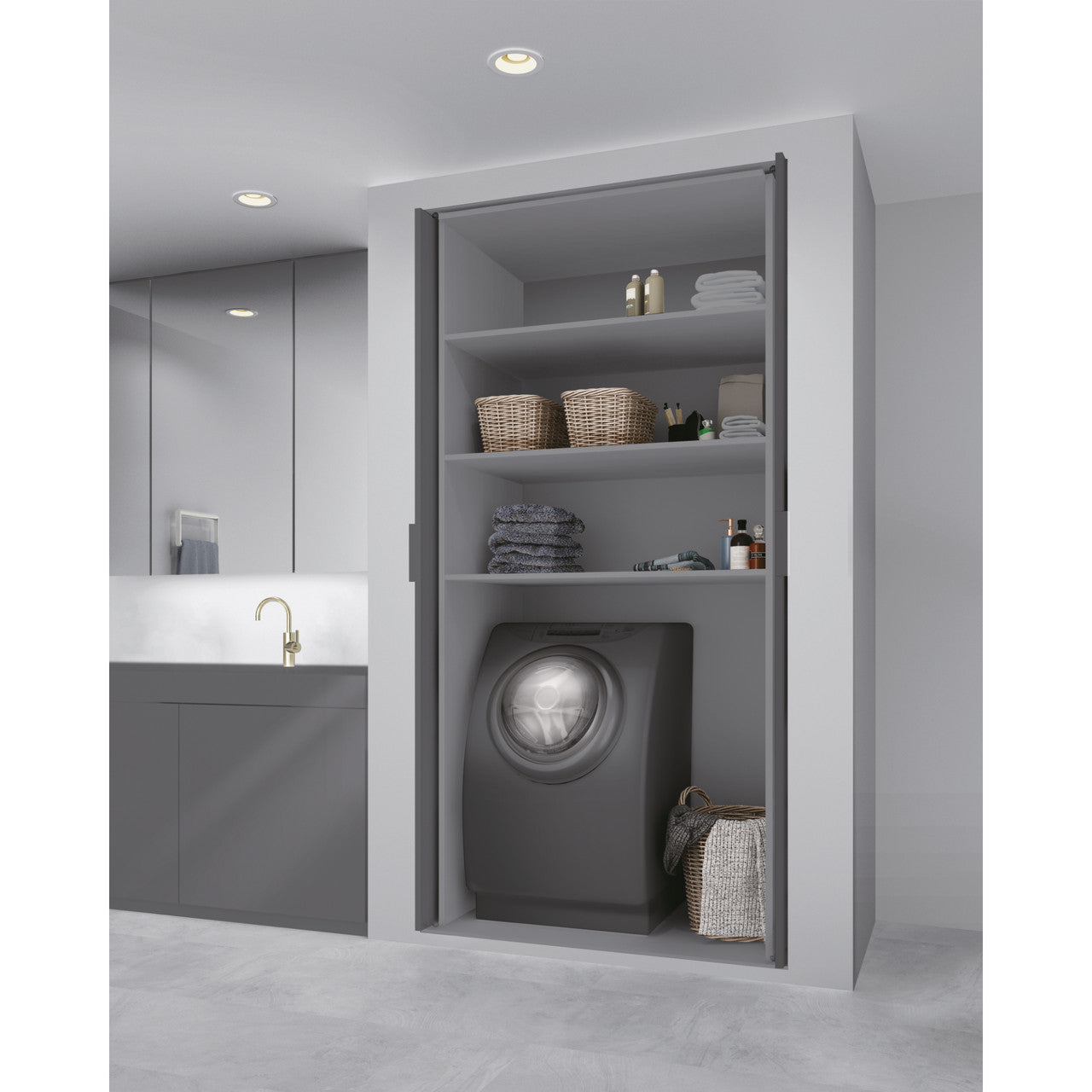

Sugatsune ALT-ST20-D10LL-22:Overlay Soft-Close Pocket Door System Kit with 22" SlidesDesigned to allow doors to recede inside cabinets. Doors will occupy minimal amout of space, providing full access to cabinet interior.
Features
  • Soft-Close
  • Door allignment adjustability
  • Hanging angle can be easily adjusted to prevent door sag
  • Hinges include a built-in catch to hold doors securely closed

Dimensions & Specifications
  • Overlay: Up to 3/8" (10mm)
  • Slide Length: 22"
  • Minimum cabinet depth: 22-1/2"
  • Door Storage Amount: 16-9/16"
  • Maximum door width: 24"
  • Door Height: 78-3/4" to 94-1/2"
  • Door thickness: 11/16" to 13/16"
  • Maximum door weight: 44 lbs.
  • Number of slides/hinges: 4
Kit for single door. Order two kits for double door application.

Specifications

Height: 1.38″
Width: 22.25″
Depth: 0.38″
