Sugatsune ARN-2-H-S : Aileron Heavy Duty Lift-Assist & Soft-Close Lid Stay Set (top opening) - Grey
Sugatsune ARN-2-H-S : Aileron Heavy Duty Lift-Assist & Soft-Close Lid Stay Set (top opening) - Grey

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune ARN-2-H-S : Aileron Heavy Duty Lift-Assist & Soft-Close Lid Stay Set (top opening) - Grey

Sugatsune
|
SKU: suga-ARN-2-H-S
Out of stock
(0)
$55.96
-15% $65.84 $55.96
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

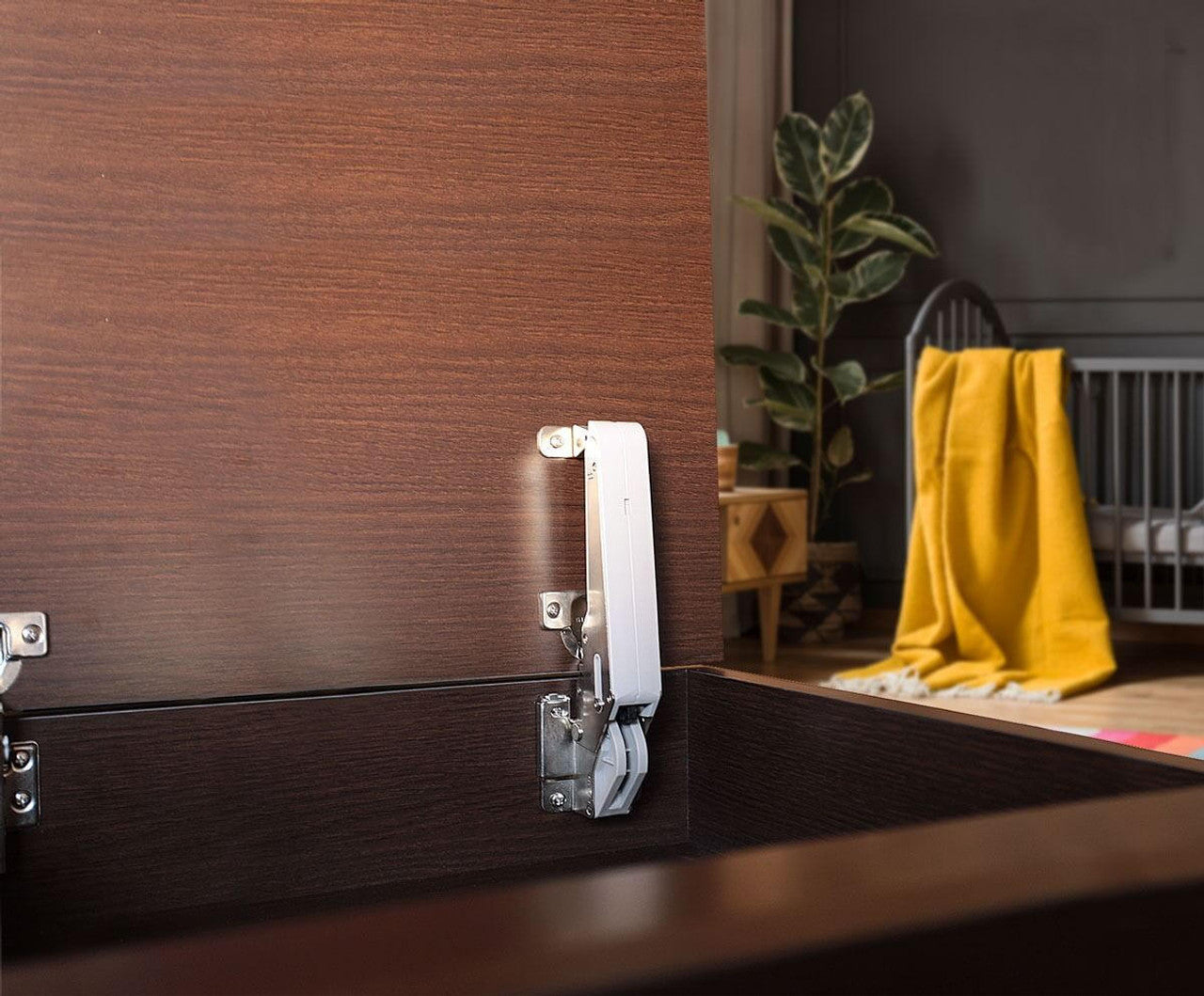

Sugatsune ARN-2-H-S: Aileron Heavy Duty Lift-Assist & Soft-Close Lid Stay Set (top opening) in Grey.
Features

  • Lift-assist function allows for light opening of doors
  • Free-stop function that enables doors to hold in position (30° max)
  • Soft-close function enables door to close gently (30°to 0°)
  • Integrated design combines a concealed hinge and lid stay
  • Adjustable closing speed


Torque Specifications

  • Torque range: 53.1 to 70.8 lbs./inch
  • Torque calculation: Torque = door height (in inches) x .5 x weight (in lbs.)
  • Door weight must include all attached accessories


Set Includes:

  • Aileron Lid Stay x 1
  • Mounting Plate for Aileron Lid Stay x 1
  • 360-D26-19 Olympia Concealed Hinge x 1
  • 360-P6WT Mounting Plate x 1
  • Mounting Screws x 17

Specifications

Height: 2.75″
Width: 6.75″
Depth: 2.5″
