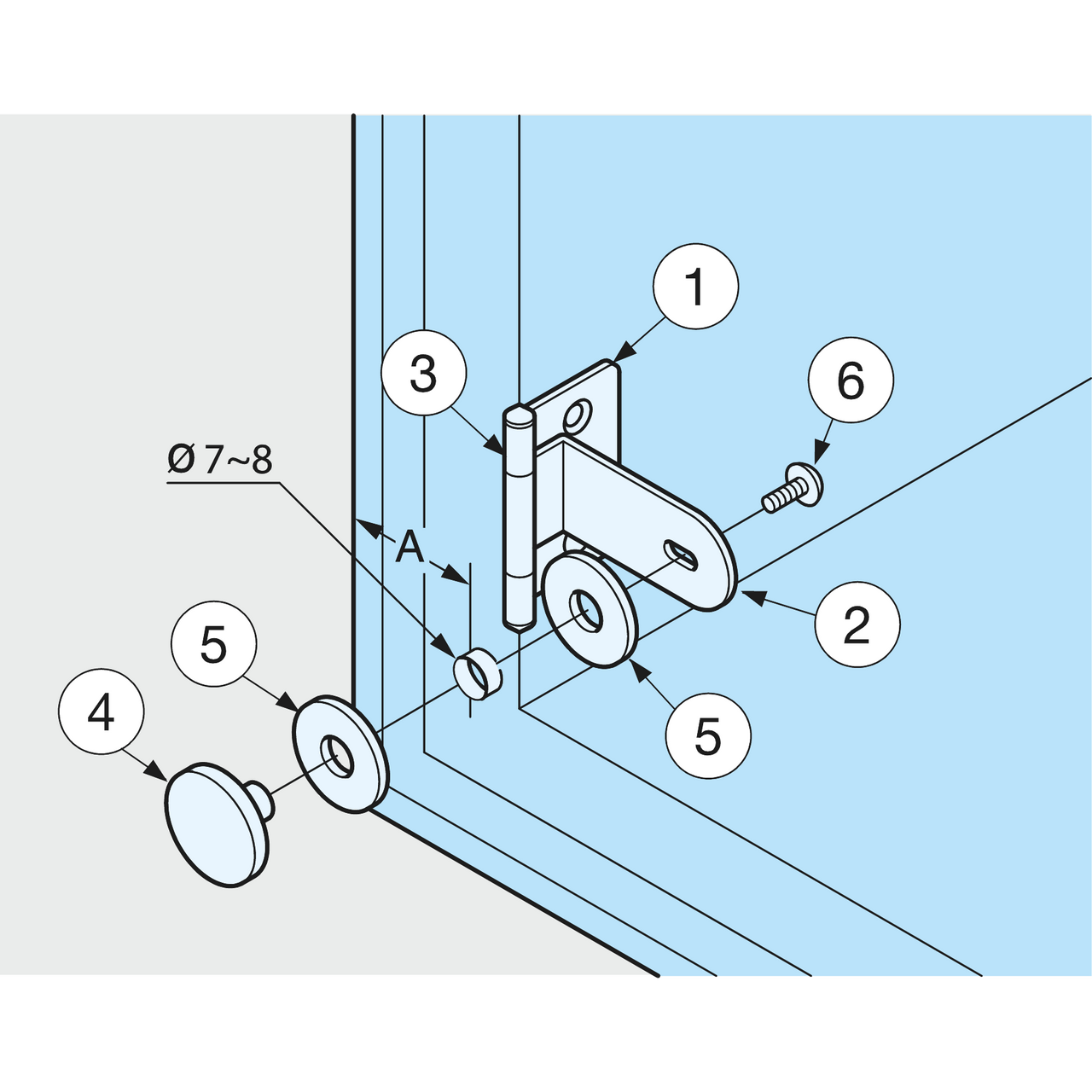

Line Drawing
Sugatsune GH-34/8/CR-P: Half Overlay Glass Door Hinge - Polished Chrome
Line Drawing
Sugatsune GH-34/8/CR-P: Half Overlay Glass Door Hinge - Polished Chrome

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

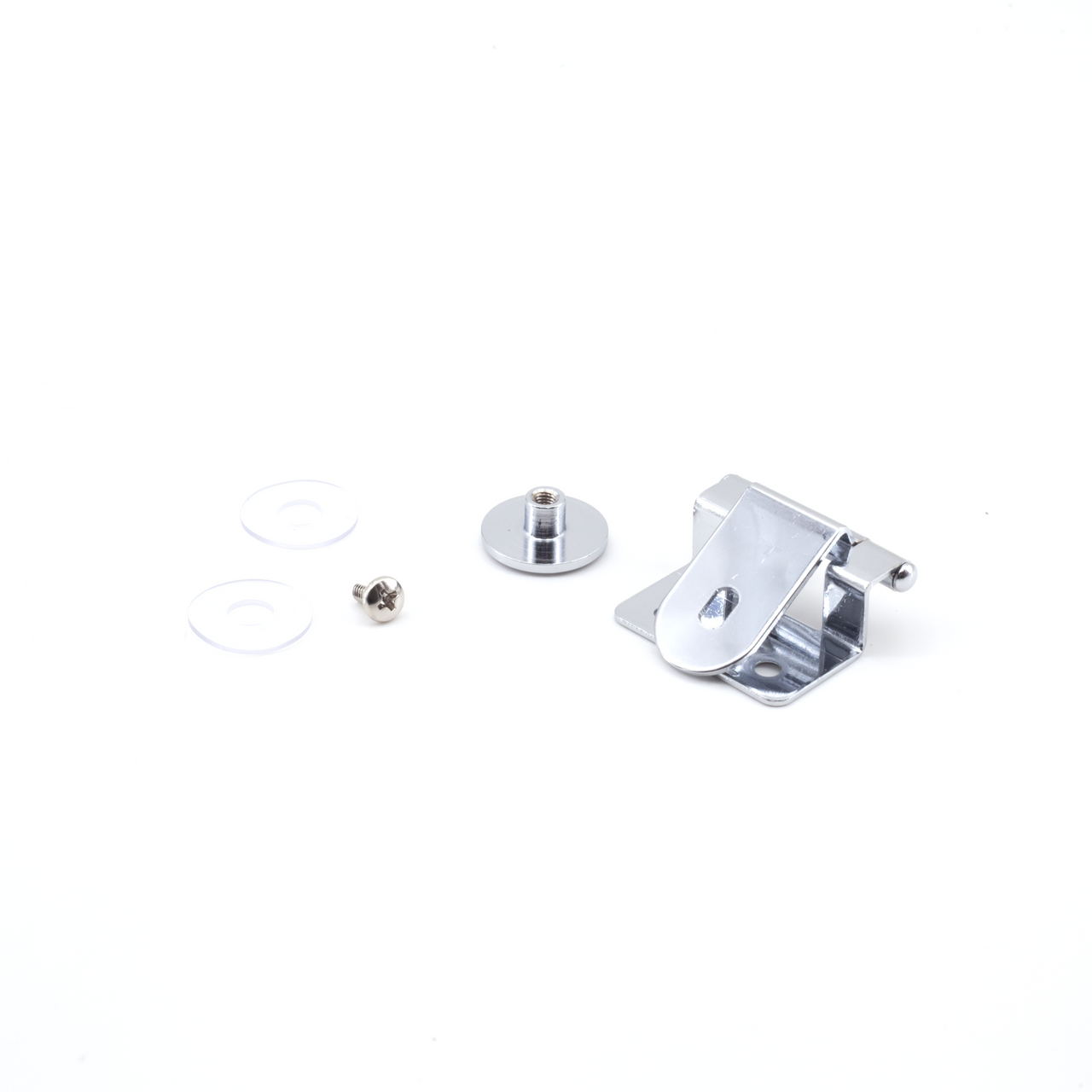

Sugatsune GH-34/8/CR-P: Half Overlay Glass Door Hinge - Polished Chrome

Sugatsune
|
SKU: suga-GH-34/8/CR-P
In stock
(0)
$10.29
-15% $12.10 $10.29
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune GH-34/8/CR-P: Half Overlay Glass Door Hinge in Polished Chrome finish.
  • Half-overlay
  • For glass/acrylic doors
  • For door thickness of 4 to 6mm
  • Maximum door size of 27-9/16" high x 17-3/4" wide
  • Maximum door weight: 8.8 lbs./pair
  • Sold individually
Click here to view catalog

Specifications

Height: 1.5″
Width: 1.2″
Depth: 1.34″
