Home » Sugatsune GH-450G/SN: Glass Door Hinge For Glass Frame w/o Catch -Satin Nickel

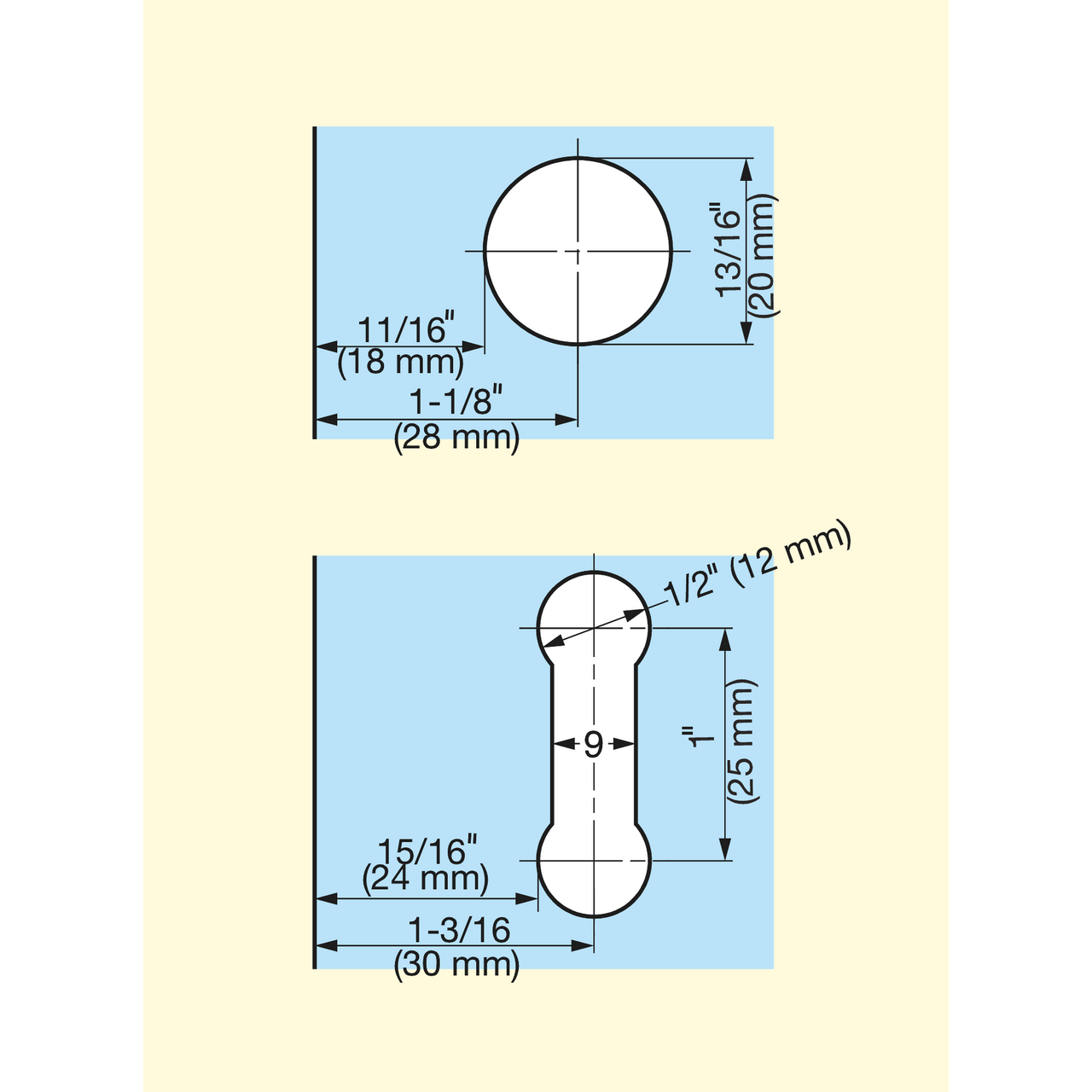

Line Drawing
Sugatsune GH-450G/SN: Glass Door Hinge For Glass Frame w/o Catch -Satin Nickel
Line Drawing
Sugatsune GH-450G/SN: Glass Door Hinge For Glass Frame w/o Catch -Satin Nickel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune GH-450G/SN: Glass Door Hinge For Glass Frame w/o Catch -Satin Nickel

Sugatsune
|
SKU: suga-GH-450G/SN
In stock
(0)
$197.02
-15% $231.79 $197.02
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

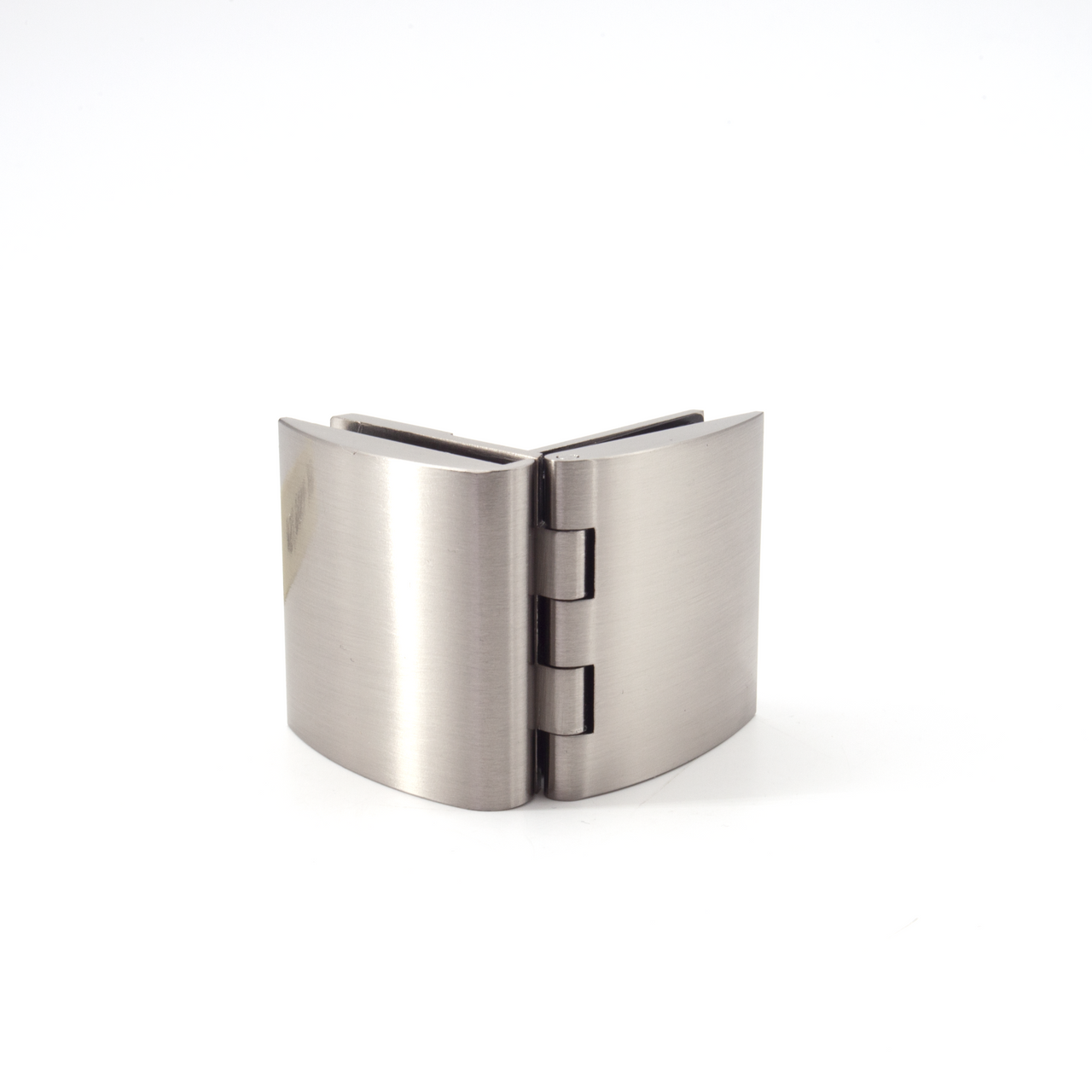

Sugatsune GH-450G/SN: Glass Door Hinge For Glass Frame without Catch in Satin Nickel finish.
  • For glass frame use
  • Suitable for showcases
  • Glass door thickness : 5 - 8mm
  • Adjustable: Vertical - 2mm, Horizontal - 2.5mm
  • Maximum door weight: 32 lbs.
  • Screws not included
  • Image Displayed in Satin Nickel.
  • Spacers included to accommodate different glass thickness

Specifications

Height: 1.77″
Width: 1.88″
Depth: 2.44″
