Home » Sugatsune GH-456C/SN: 45mm Overlay Glass Door Hinge w/Catch - Satin Nickel

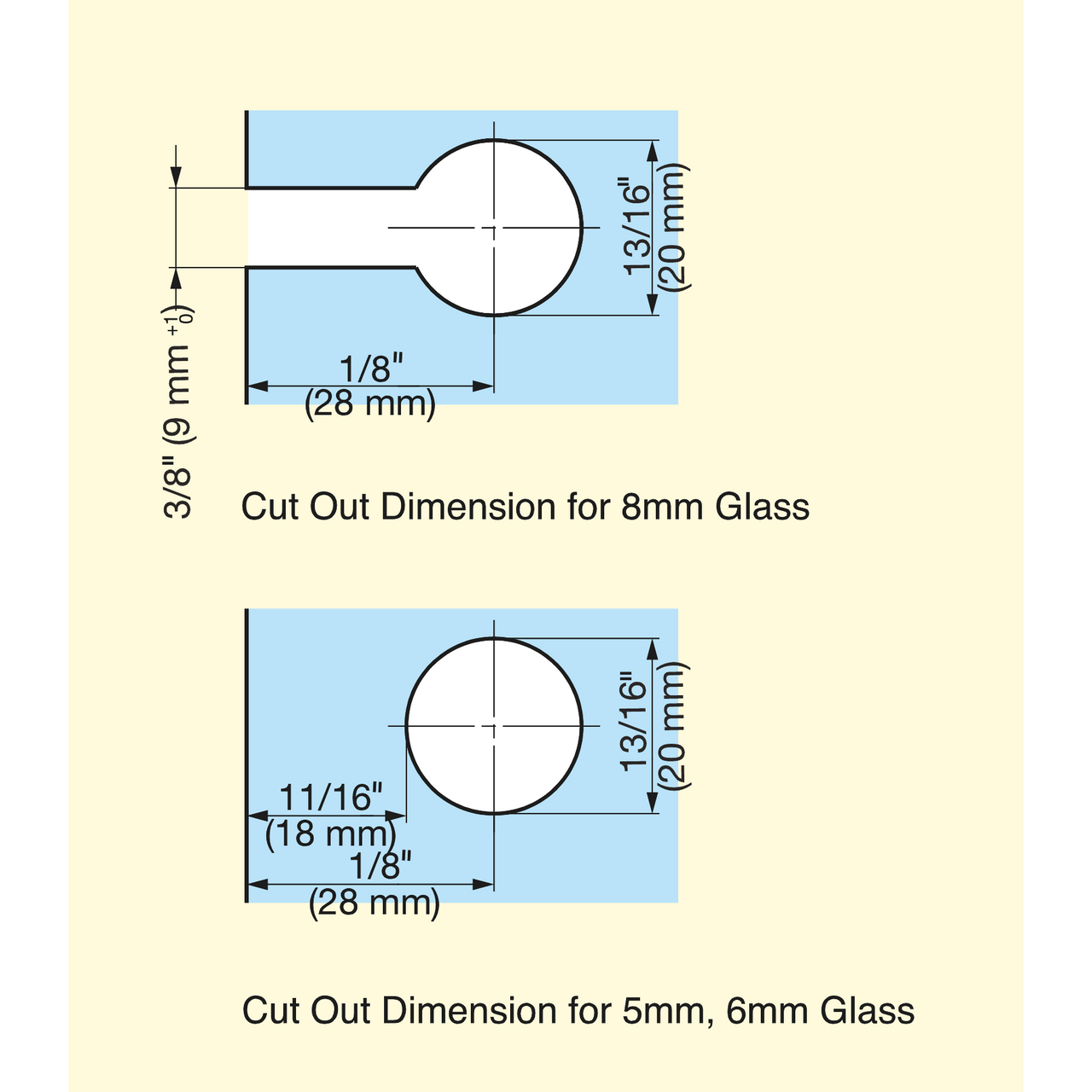

Line Drawing
Sugatsune GH-456C/SN: 45mm Overlay Glass Door Hinge w/Catch - Satin Nickel
Line Drawing
Sugatsune GH-456C/SN: 45mm Overlay Glass Door Hinge w/Catch - Satin Nickel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

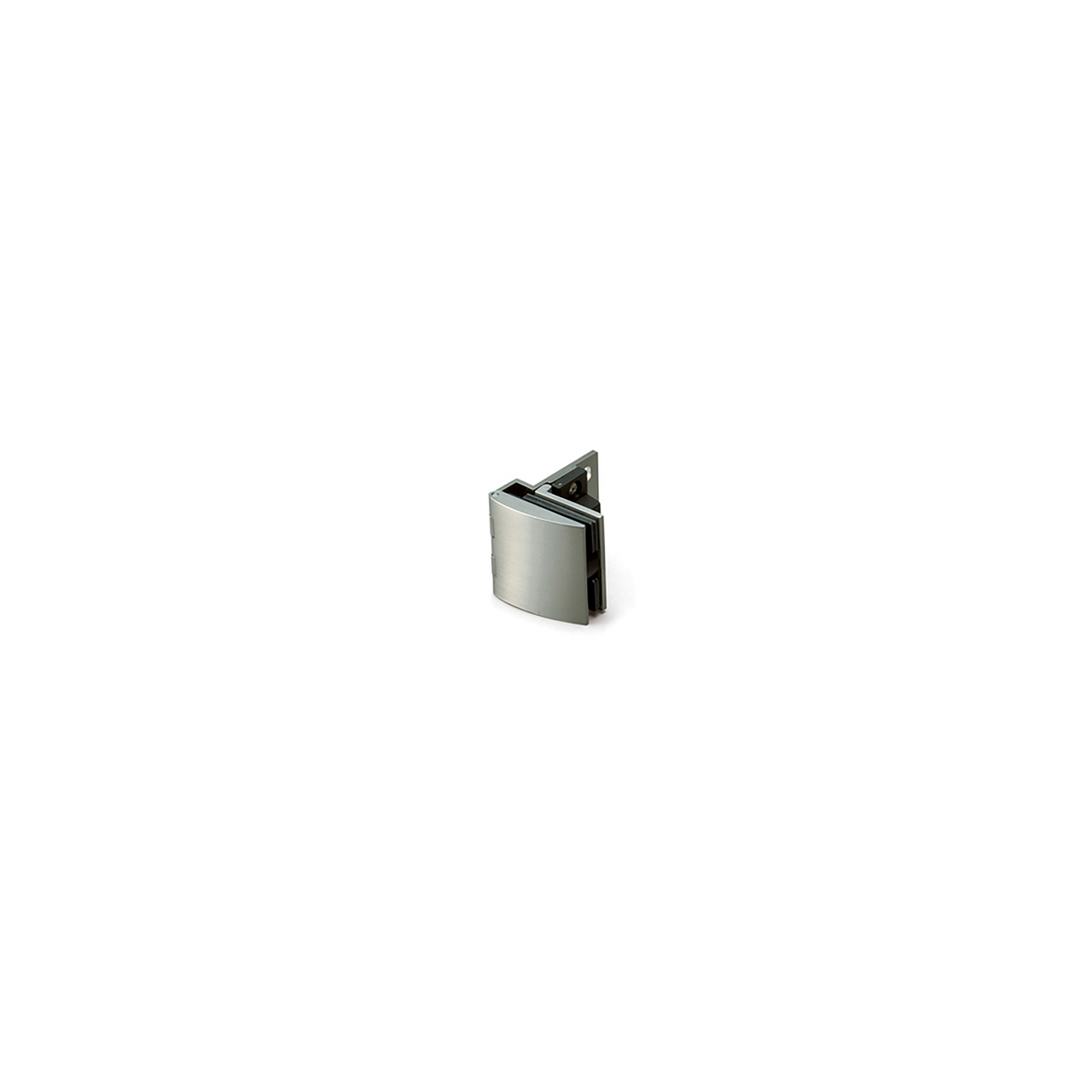

Sugatsune GH-456C/SN: 45mm Overlay Glass Door Hinge w/Catch - Satin Nickel

Sugatsune
|
SKU: suga-GH-456C/SN
In stock
(0)
$125.46
-15% $147.60 $125.46
Click here to view the Sugatsune catalog page for more information about this item
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune GH-456C/SN: 45mm Overlay Glass Door Hinge with Catch in Satin Nickel finish.
  • Glass hinge with catch
  • 6mm Overlay
  • Suitable for showcases
  • Glass door thickness: 5 to 8mm
  • Adjustable: Vertical - 2mm, Horizontal - 2.5mm
  • Maximum door weight: 32 lbs.
  • Spacers included to accommodate different glass thickness
  • Also available with no catch: part number suga-GH-456N
  • Image displayed in Satin Nickel, Chrome and Gold Finishes
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 1.77″
Width: 2.14″
Depth: 1.77″
