Home » Sugatsune GH-456N/CR: 45mm Overlay Glass Door Hinge w/o Catch - Polished Chrome

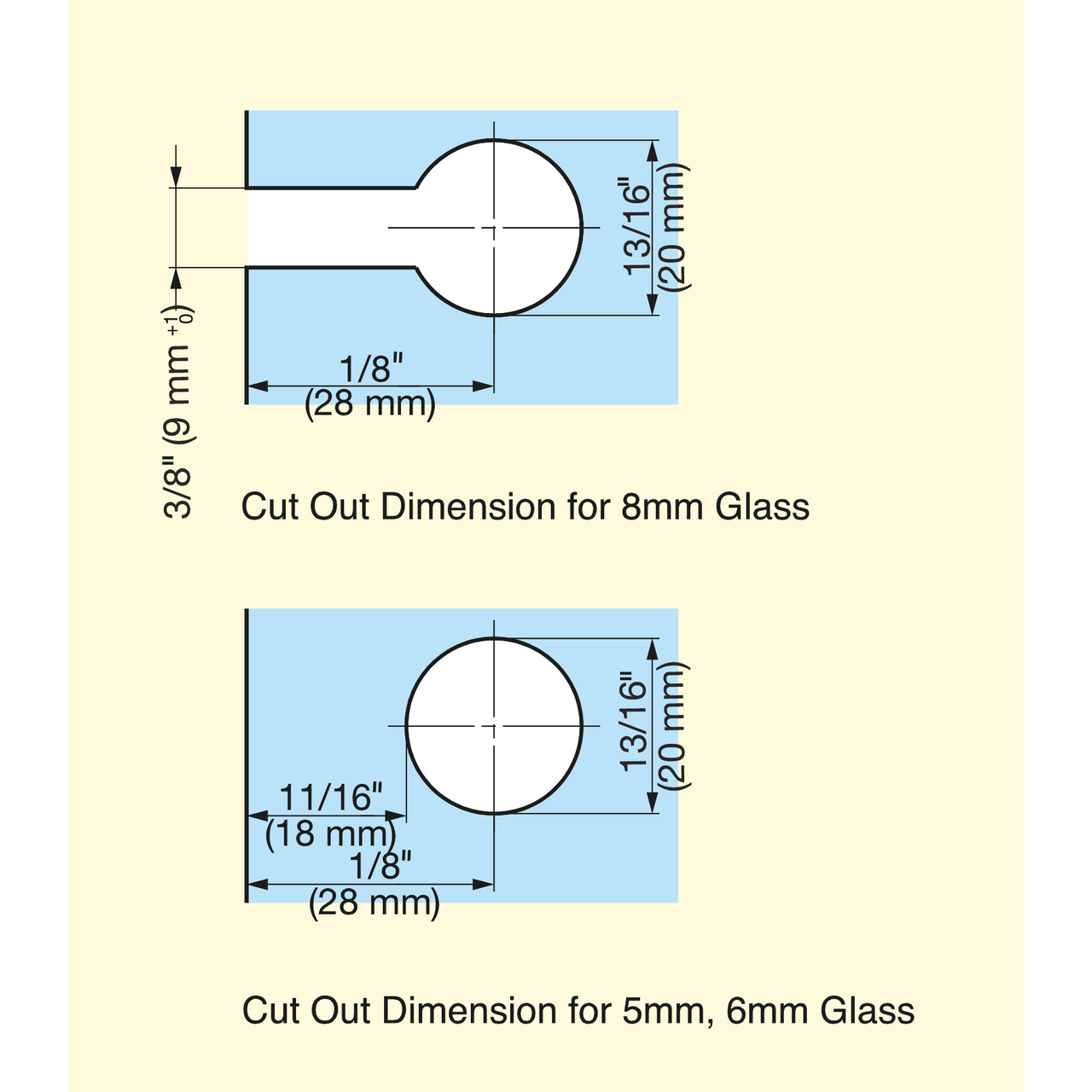

Line Drawing

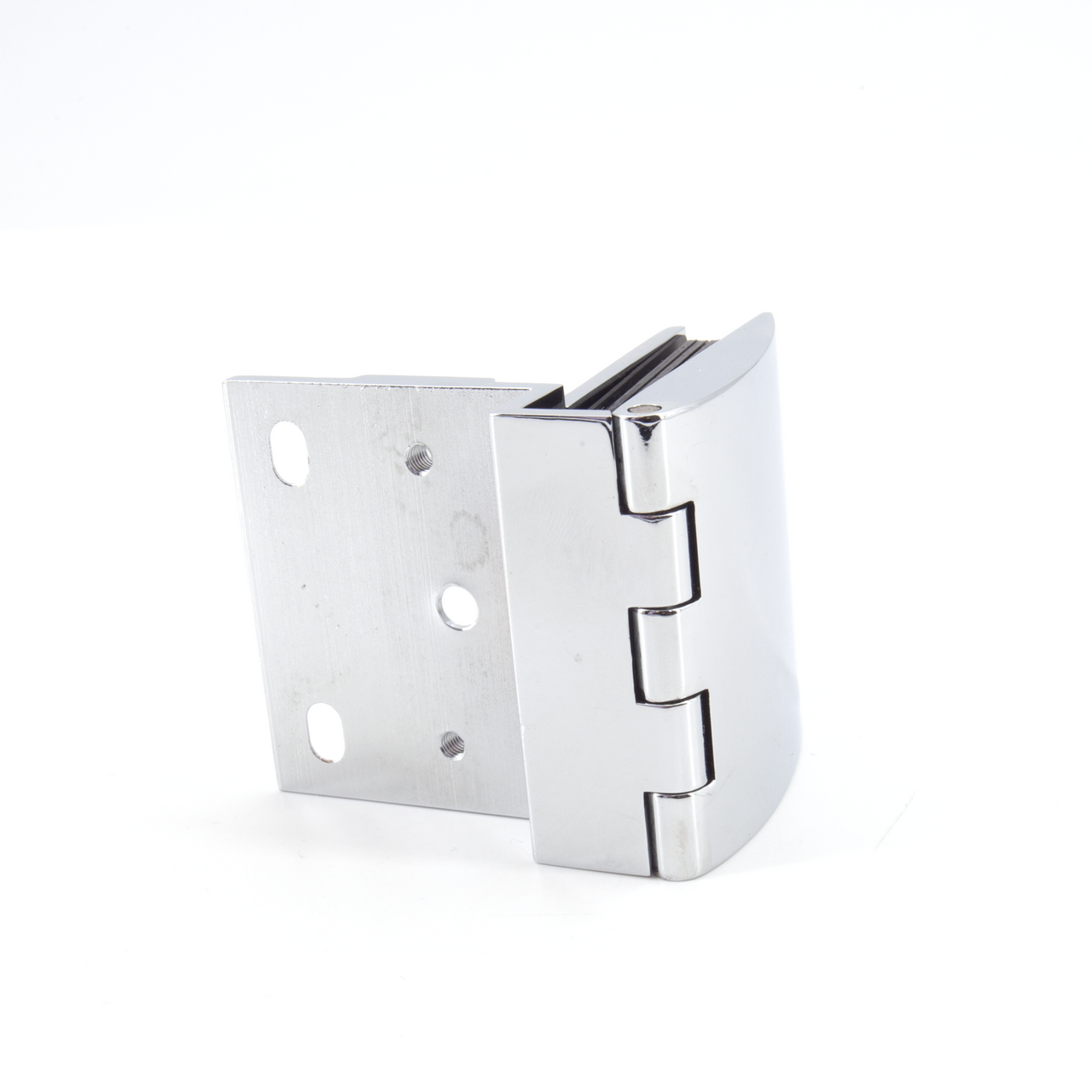

Sugatsune GH-456N/CR: 45mm Overlay Glass Door Hinge w/o Catch - Polished Chrome
Line Drawing
Sugatsune GH-456N/CR: 45mm Overlay Glass Door Hinge w/o Catch - Polished Chrome

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune GH-456N/CR: 45mm Overlay Glass Door Hinge w/o Catch - Polished Chrome

Sugatsune
|
SKU: suga-GH-456N/CR
Only 3 left
(0)
$113.12
-15% $133.09 $113.12
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune GH-456N/CR: 45mm Overlay Glass Door Hinge without Catch in Polished Chrome finish.
  • Glass hinge without catch
  • 6mm Overlay
  • Suitable for showcases
  • Glass door thickness: 5 to 8mm
  • Adjustable: Vertical - 2mm, Horizontal - 2.5mm
  • Maximum door weight: 32 lbs.
  • Spacers included to accommodate different glass thickness
  • Also available with catch: part number suga-GH-456C
  • Image displayed in Satin Nickel, Chrome and Gold Finishes

Specifications

Height: 1.77″
Width: 2.14″
Depth: 1.77″
