Description

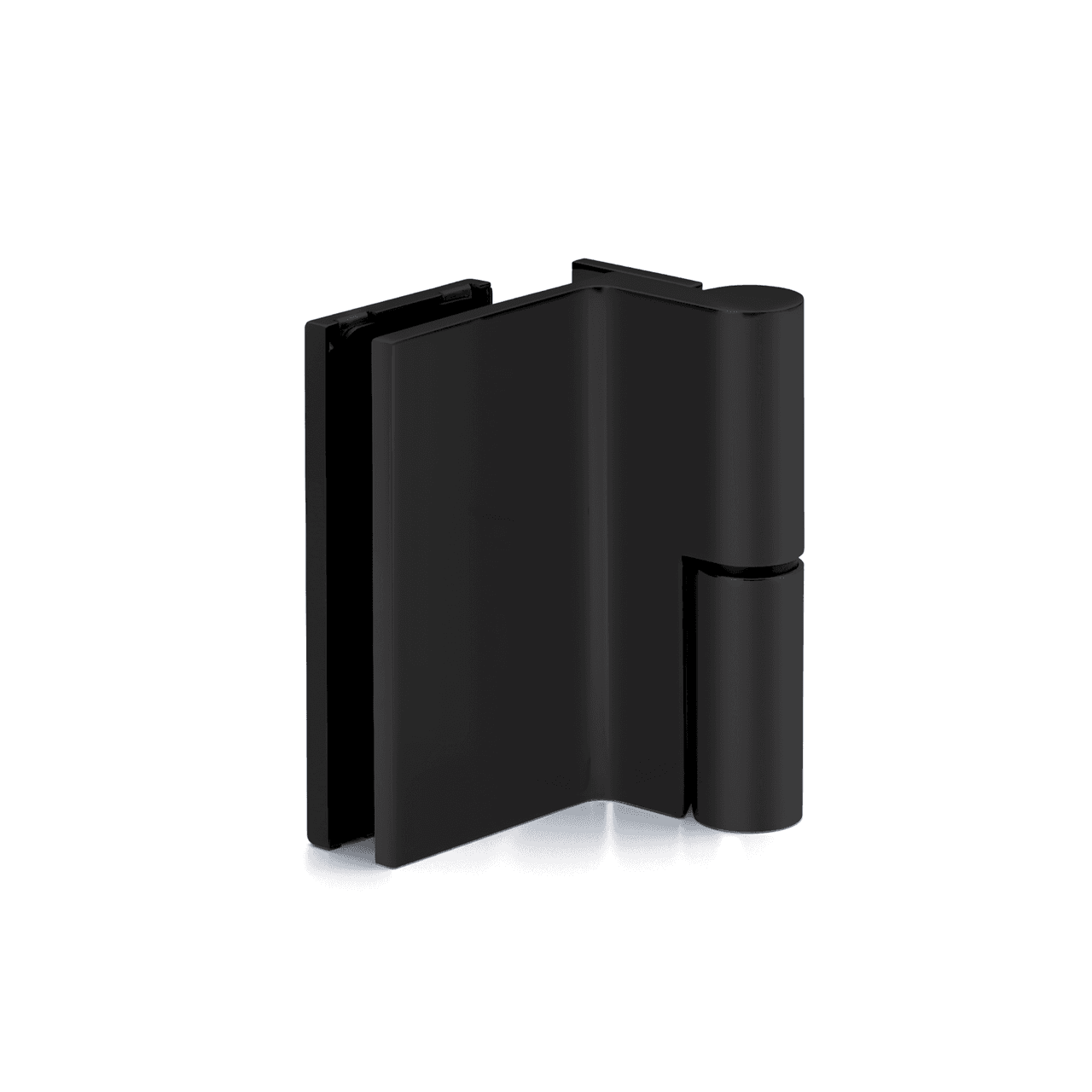

Sugatsune GH-G02SH-BL-R: Glass Door Gravity Hinge (right) in Black finish.

• Can be used in areas exposed to water such as shower stalls
• Strong self-closing force ensures secure door closure, eliminating the chance of unintended opening due to unequal door pressure
• Hinge pin projects from end of shower stall
• Automatically closes from 70° using door weight and gravity
• Automatically opens between 70° to 160°. The door can be held open using a door stopper in this range
• Maximum opening angle 160°

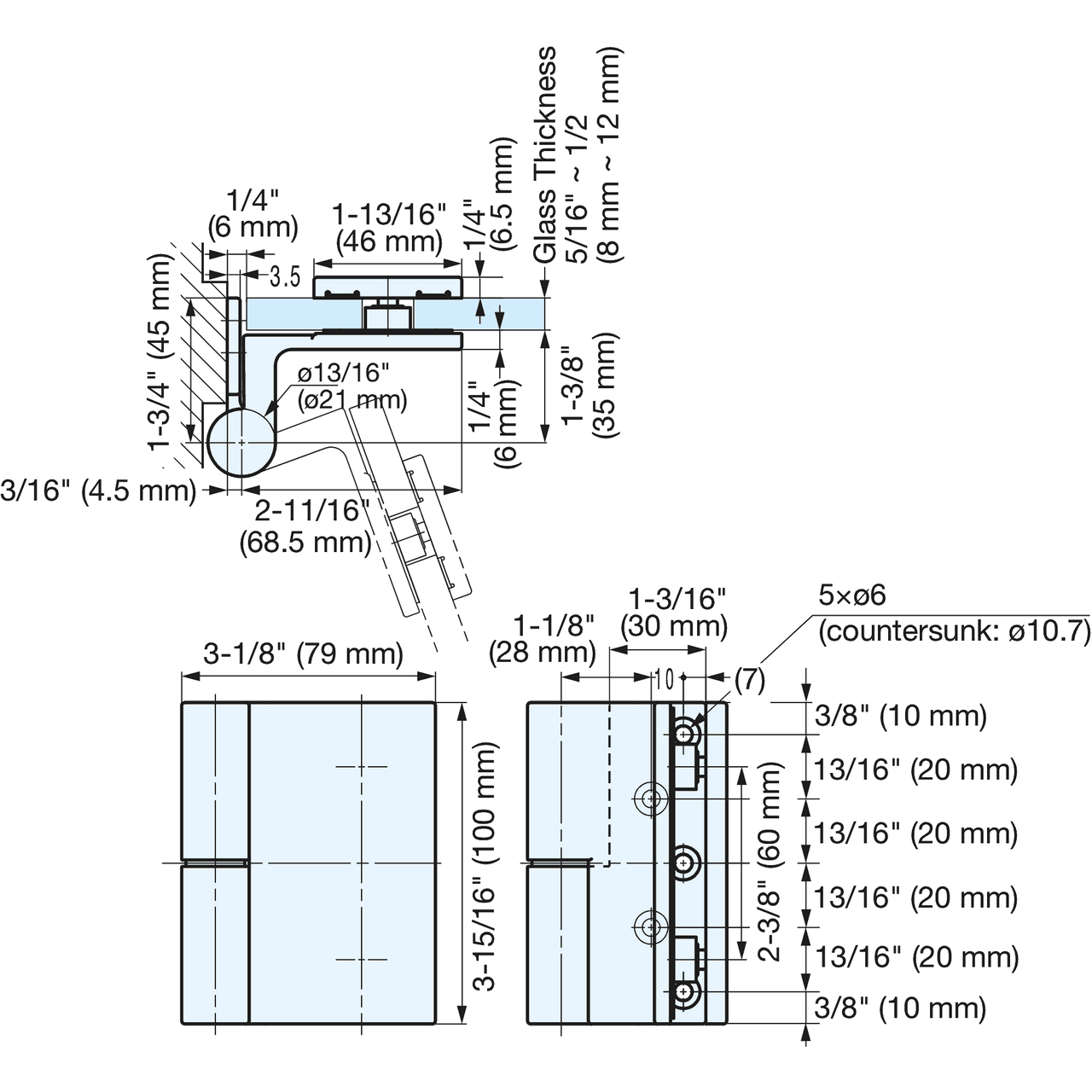

  Door Specifications

  • Glass thickness: 5/16" to 15/32" (8 - 12 mm)
  • Maximum height, 2 hinges: 82-11/16" (2100 mm)
  • Maximum height, 3 hinges: 94-1/2" (2400 mm)
  • Maximum width, 2 hinges: 31-1/2" (800 mm)
  • Maximum width, 3 hinges: 33-7/16" (850 mm)
  • Load capacity, 2 hinges: 99.2 lbs. (45 kg.)
  • Load capacity, 3 hinges: 110.2 lbs. (50 kg.)

Click here to view catalog

Specifications

Height: 2.1062992125984255″
Width: 3.110236220472441″
Depth: 3.937007874015748″
Country of Origin: China
