Description

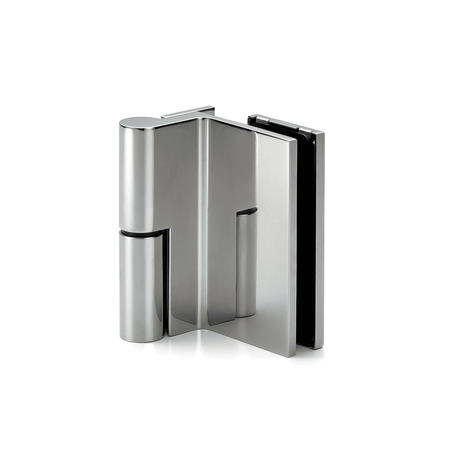

Sugatsune GH-G02SH-SM-R: Gravity Hinge For Glass Door (left) in Mirror Stainless Steel finish.

• Can be used in areas exposed to water such as shower doors.
• SCS13 (304) grade stainless steel
• Automically closes from 70° using door weight and gravity.
• The strong self-closing force ensures secure door closure, eliminating the chance of unintended opening due to uneven air pressure.
• Automatically opens between 70° and 160°. A door stopper can be used to hold the door open in this range.
• Sold individually.

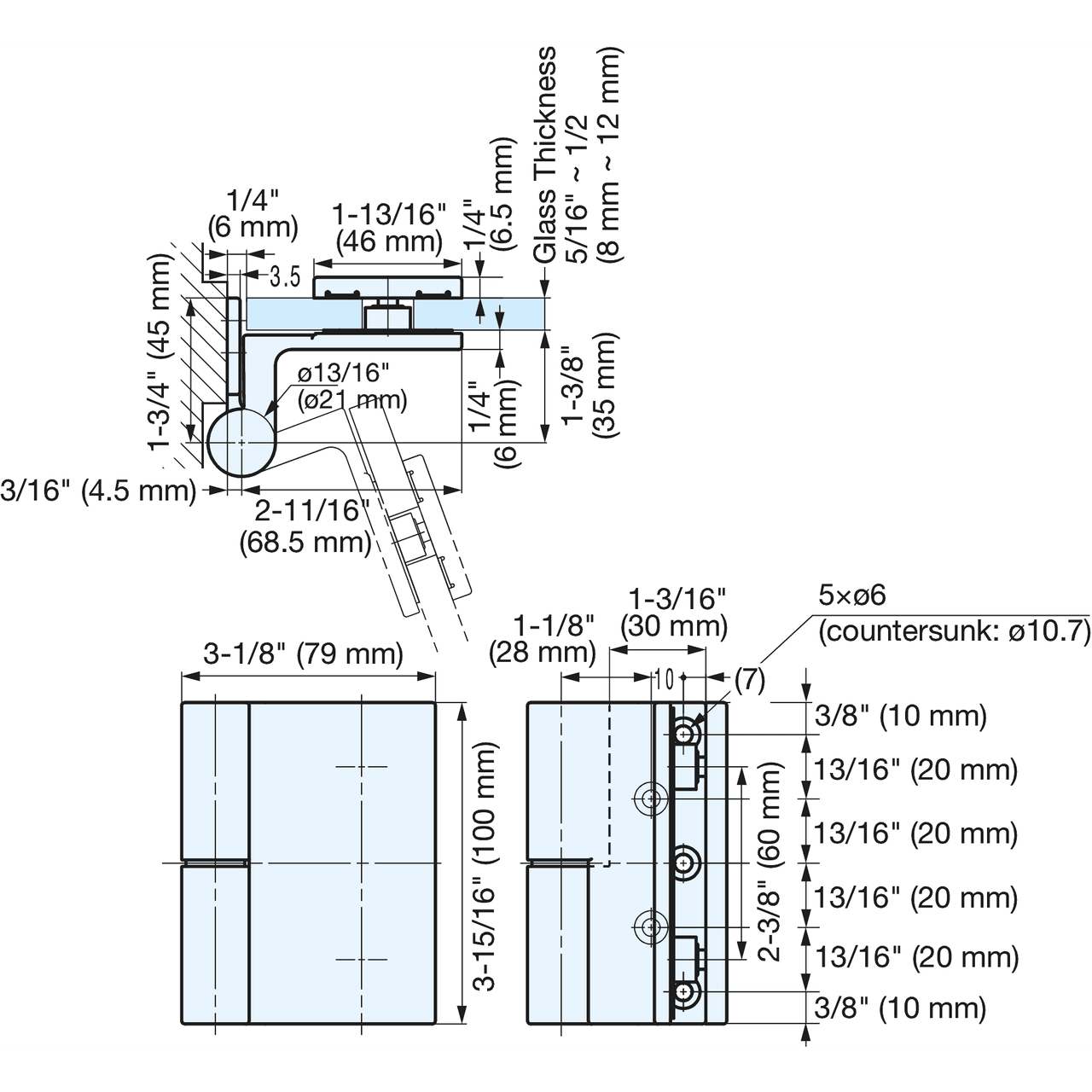

Door Dimensions

• Glass thickness: 5/16" to 15/32" (8mm to 12mm)
• Maximum width (2 hinges): 31-1/2" (800mm)
• Maximum width (3 hinges): 33-7/16" (850mm)
• Maximun height (2 hinges): 82-11/16" (2100mm)
• Maximum height, 3 hinges: 94-1/2"
• Load capacity, 2 hinges: 99.2 lbs. (45kg.)
• Load capacity, 3 hinges: 110.2 lbs. (50kg.)
• Opening angle: 160°
