Sugatsune H160-C34/23: 23mm Overlay Concealed Hinge (self-closing) - Satin Chrome

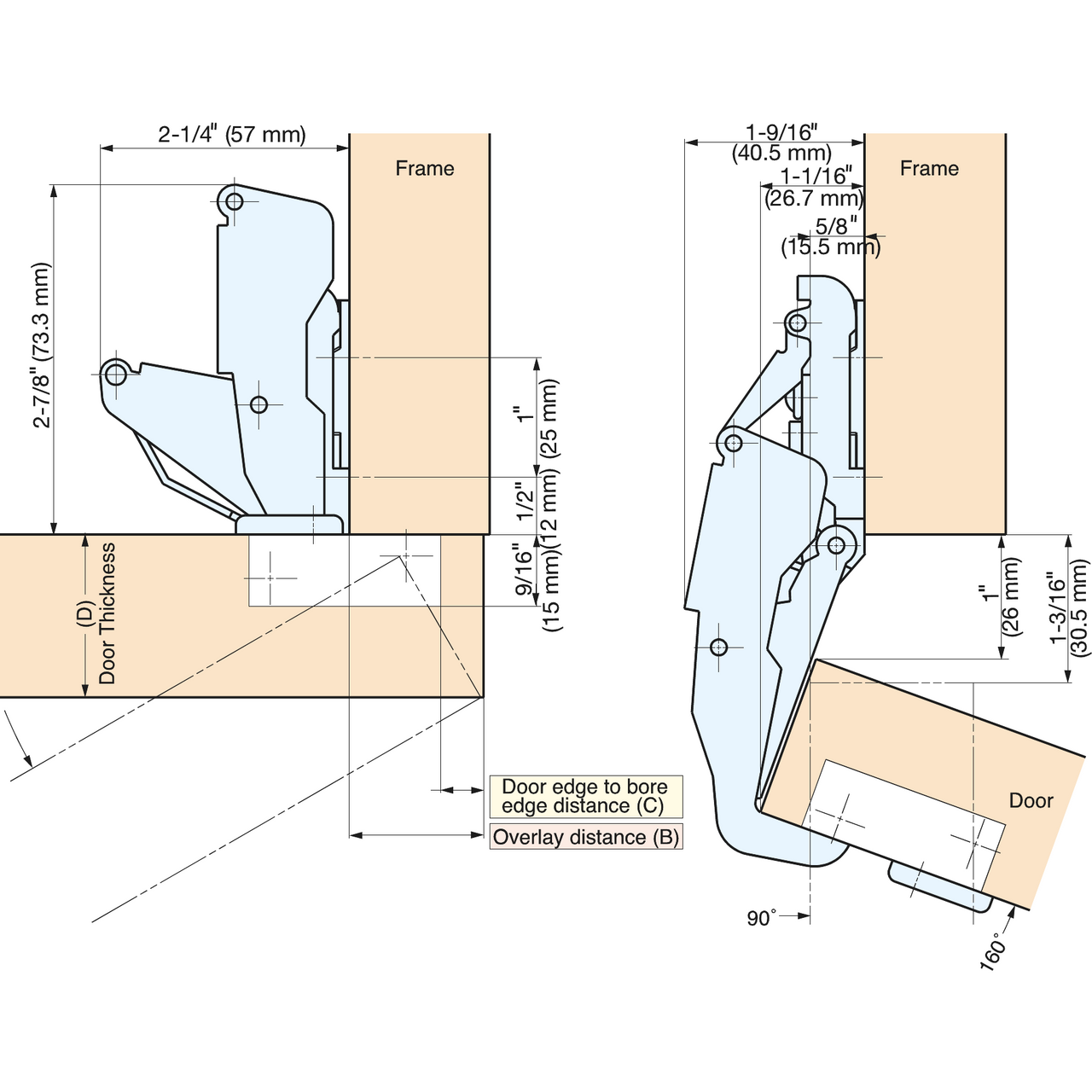

Line Drawing
Sugatsune H160-C34/23: 23mm Overlay Concealed Hinge (self-closing) - Satin Chrome
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune H160-C34/23: 23mm Overlay Concealed Hinge (self-closing) - Satin Chrome

Sugatsune
|
SKU: suga-H160-C34/23
Out of stock
(0)
$25.42
-15% $29.90 $25.42
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

Sugatsune H160-C34/23: 23mm Overlay Concealed Hinge in Satin Chrome finish.

  • Self-closing movement
  • Required mounting plate sold separately
  • Order part number suga-100-04A-W-32
  • Mounting hardware not included

Specifications

Height: 2.32″
Width: 3.48″
Depth: 2.24″
