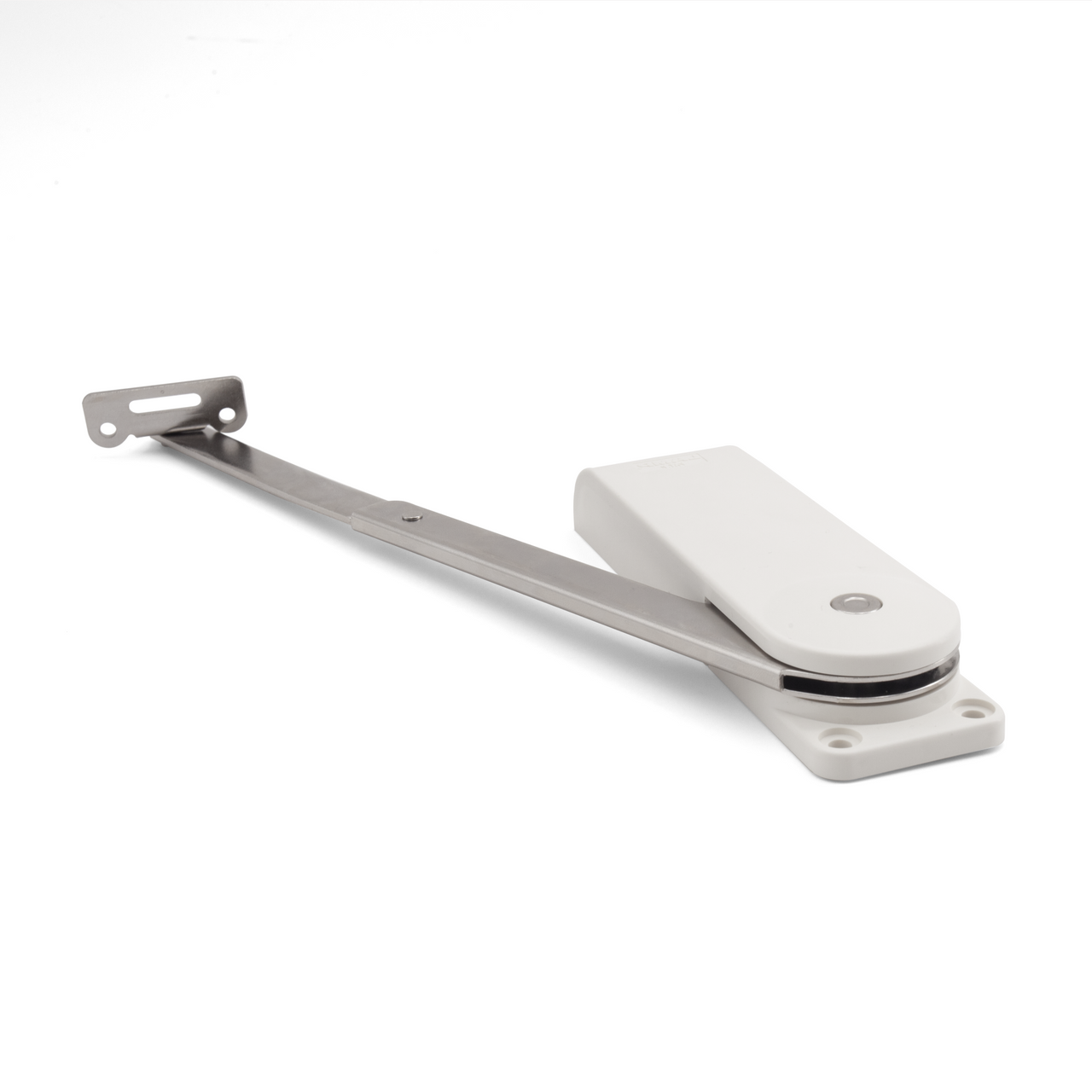

Sugatsune HDS-10KL-WHT: Light Duty Soft-Down Lid Stay (left) - White

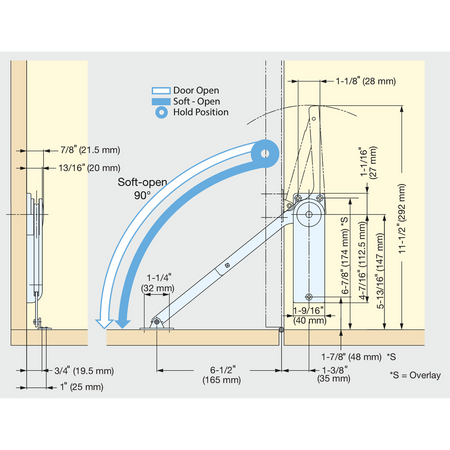

Line Drawing
Sugatsune HDS-10KL-WHT: Light Duty Soft-Down Lid Stay (left) - White

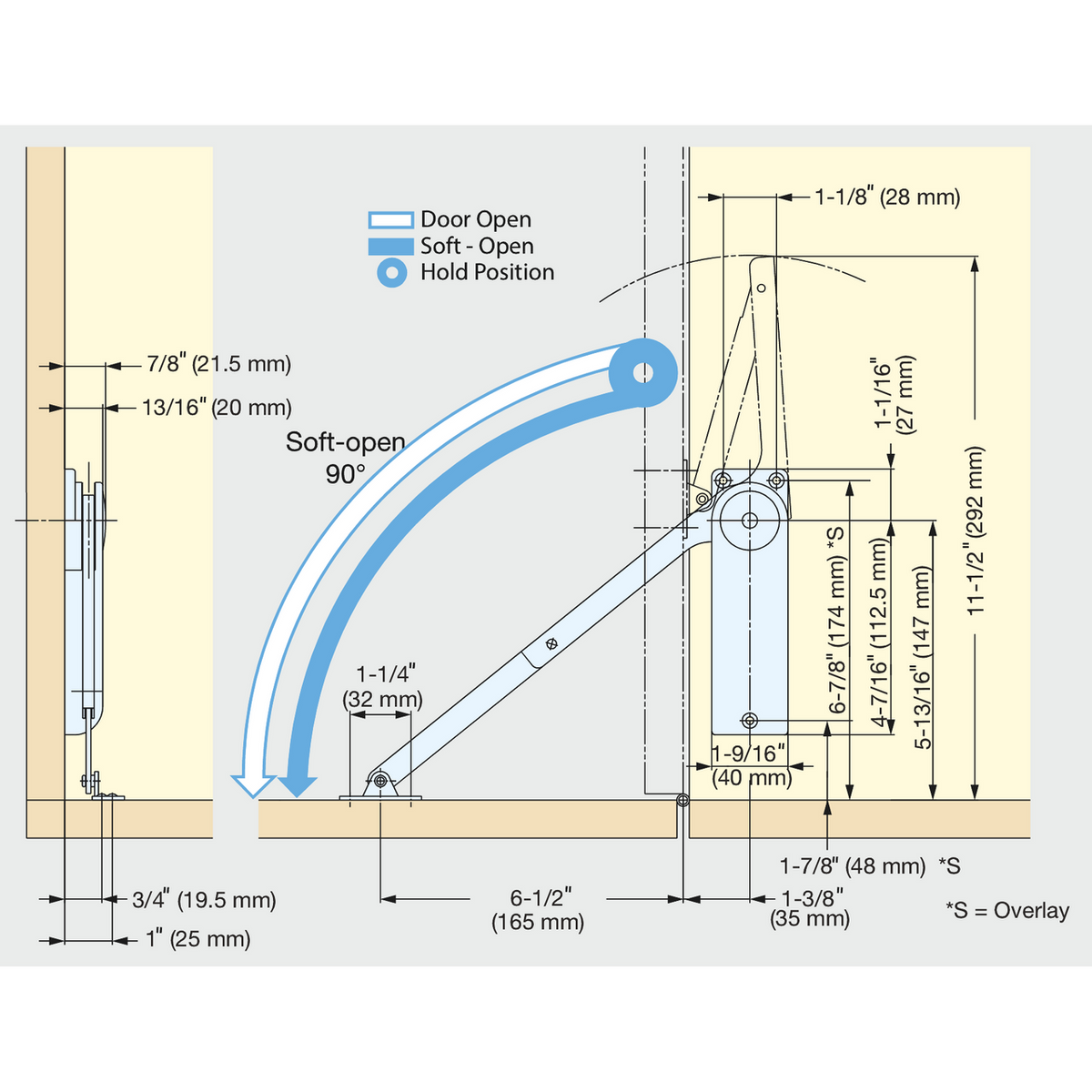

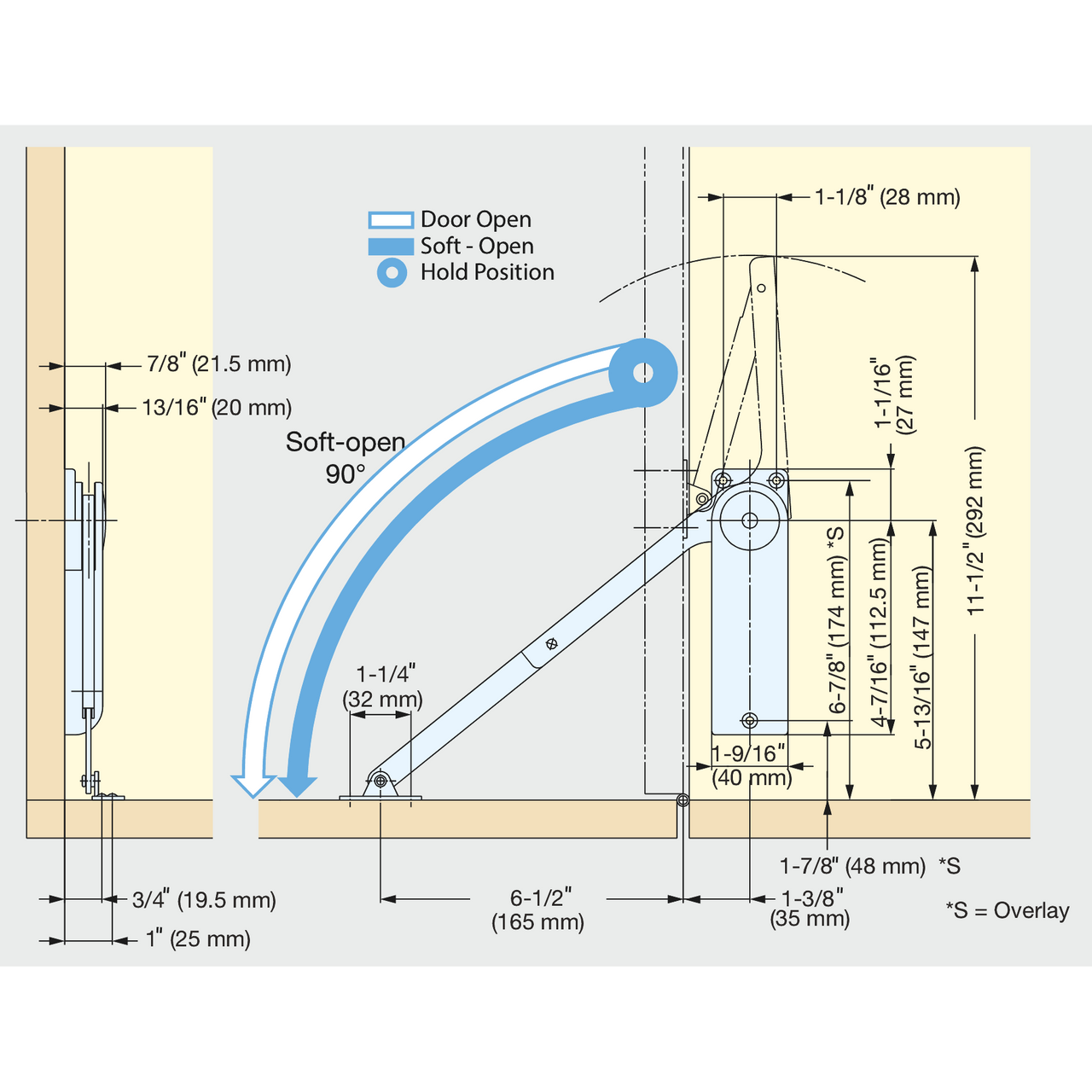

Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HDS-10KL-WHT: Light Duty Soft-Down Lid Stay (left) - White

Sugatsune
|
SKU: suga-HDS-10KL/WHT
Out of stock
(0)
$29.50
-15% $34.70 $29.50
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune HDS-10KL-WHT: Light Duty Soft-Down Lid Stay (left) in White finish.
  • Sugatsune Lapcon technology
  • For downward opening flap doors
  • Holds door open at a 90 degree angle (horizontal)
  • Use with piano, butt or drop hinges
  • Designed to hold door in closed and open position
  • Used in pairs (left and right), sold by eachRight side item is suga-HDS-10KR/WHT, sold separately
  • Torque calculation: Torque = Door height x 1/2 x door weight
  • Torque rating per pair = 140 -200 kg/cm (121 - 173 lbs./inch)

Specifications

Height: 11.5″
Width: 2.17″
Depth: 1.14″
