Sugatsune HDS-10S-KL/WHT: Light Duty Self Close Lid Stay (left)- White
Sugatsune HDS-10S-KL/WHT: Light Duty Self Close Lid Stay (left)- White

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HDS-10S-KL/WHT: Light Duty Self Close Lid Stay (left)- White

Sugatsune
|
SKU: suga-HDS-10S-KL/WHT
Out of stock
(0)
$29.50
-15% $34.70 $29.50
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

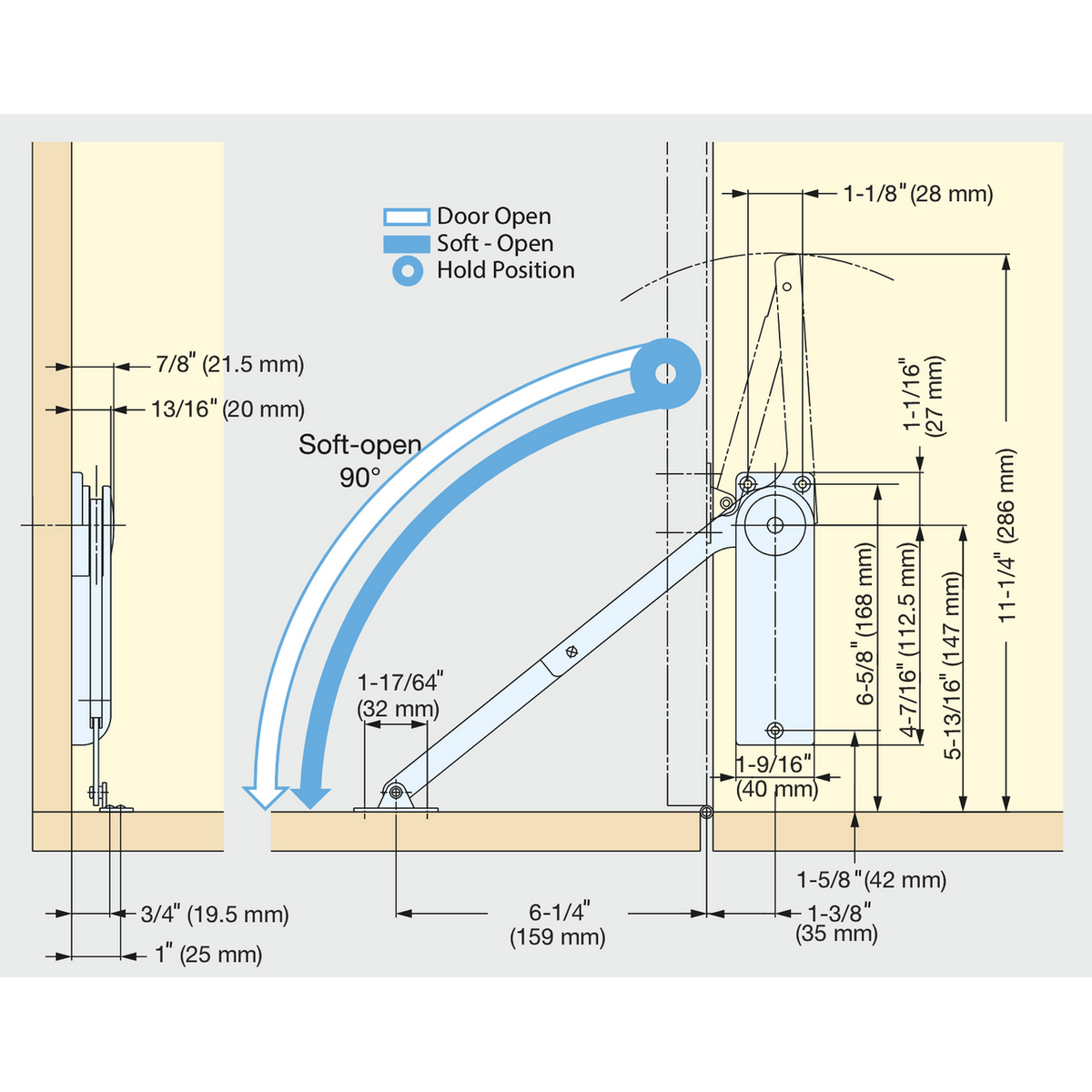

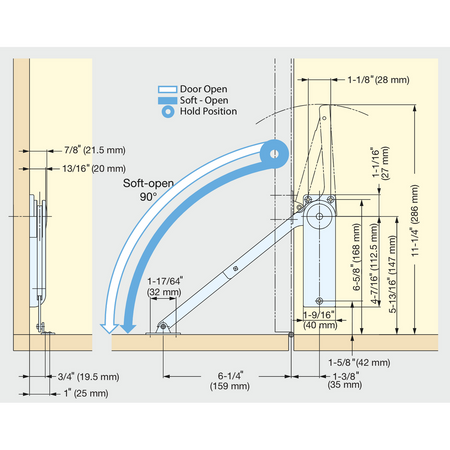

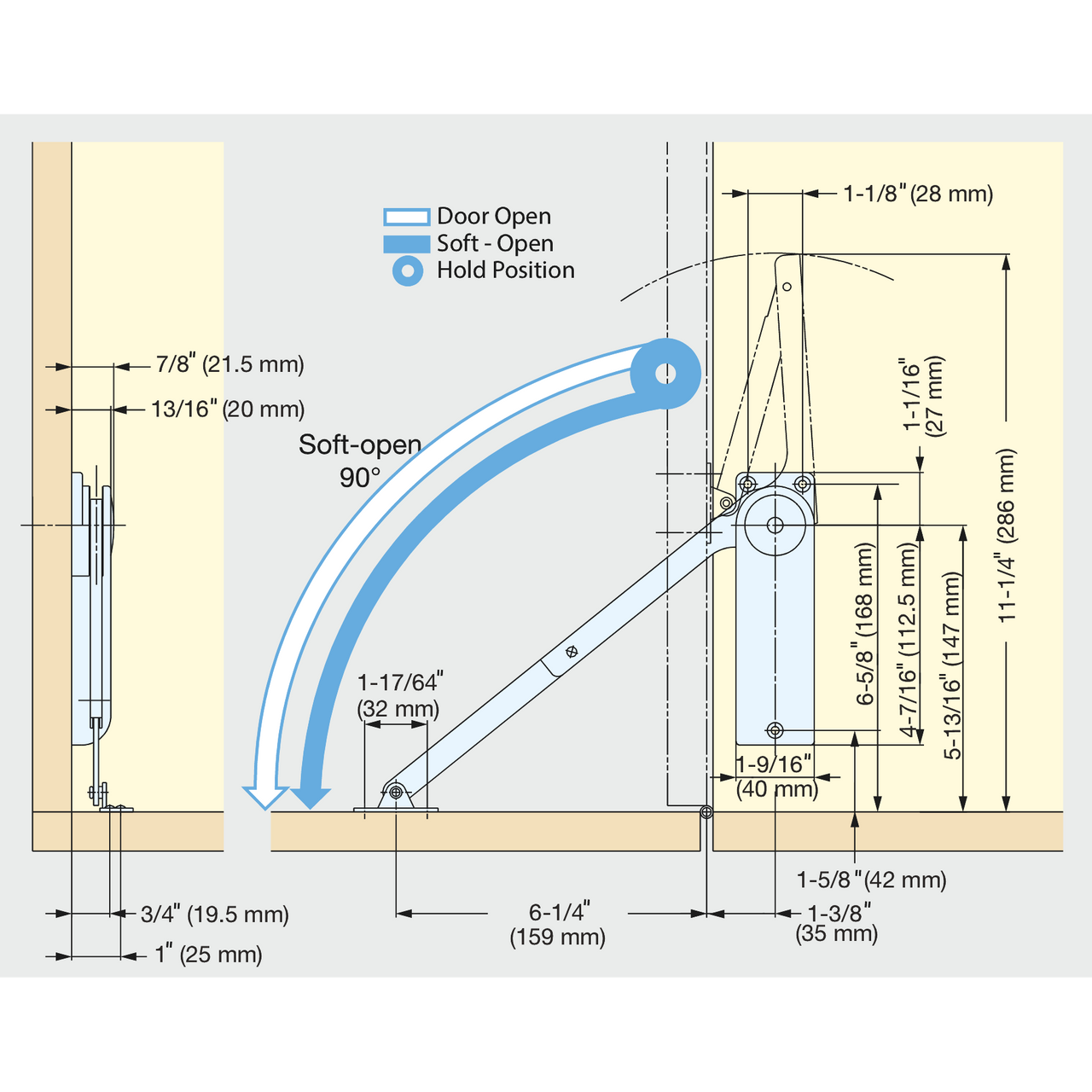

Sugatsune HDS-10S-KL/WHT: Light Duty Self Close Lid Stay (left) in White finish.
  • For downward opening flap doors
  • Holds door open at a 90 degree angle (horizontal)
  • Designed to self-close and soft-close
  • Designed to start at an angle of 5 to 20 degrees above horizontal
  • Used in pairs (left and right)
  • Sold by each
  • Right side is suga-HDS-10S-KR/WHT
  • Torque calculation: Torque = Door height x 1/2 x door weight
  • Torque rating: 60 - 95 kgf/cm (52 - 82 lbs./inch)
  • Mounting hardware included

Specifications

Height: 11.02″
Width: 3.46″
Depth: 1.2″
