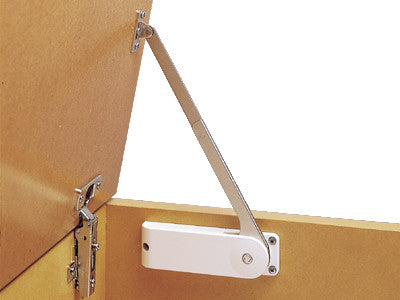

Sugatsune HDS-20KR/WHT: 70 Degree Light Duty Soft-Down Lid Stay (right) - White

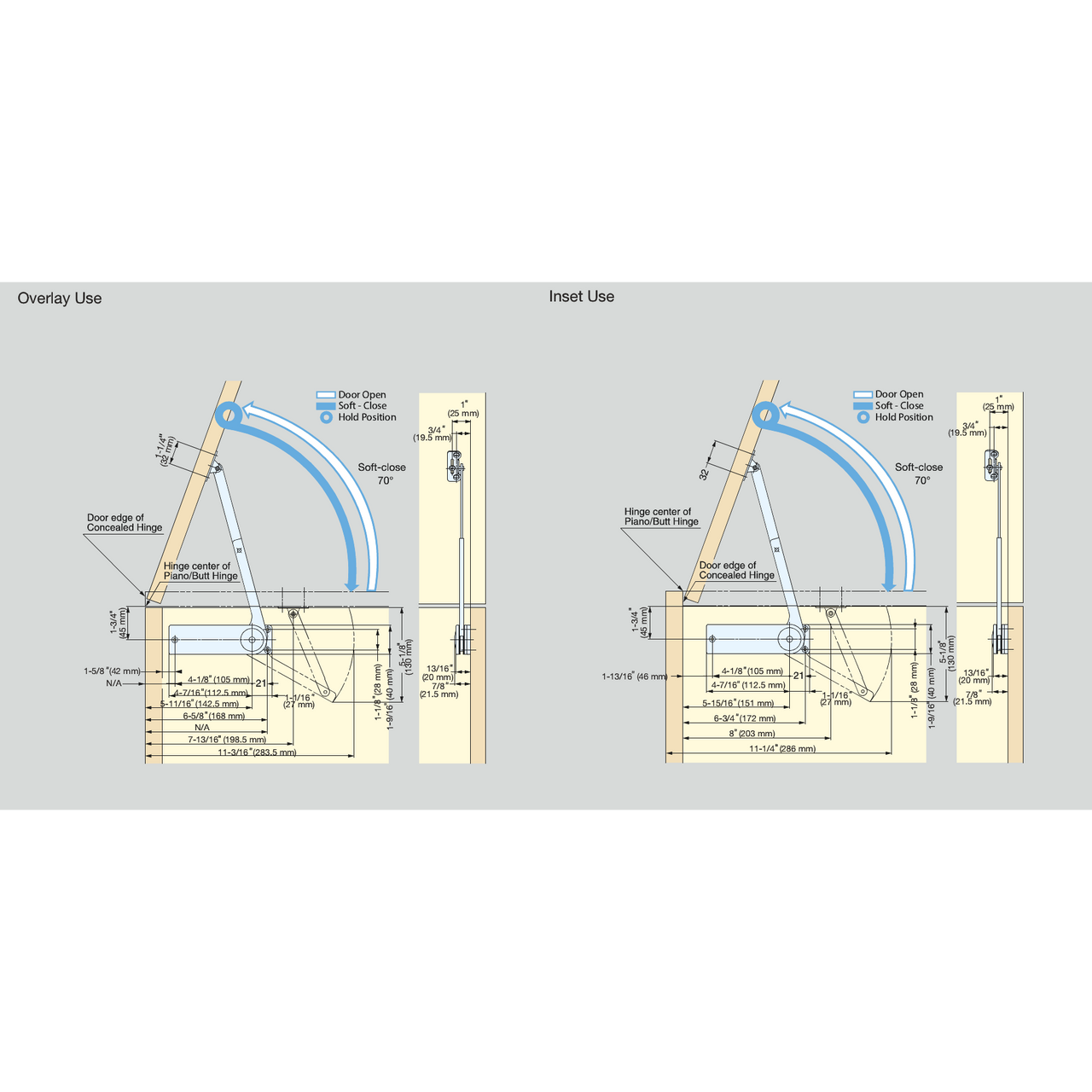

Line Drawing
Sugatsune HDS-20KR/WHT: 70 Degree Light Duty Soft-Down Lid Stay (right) - White

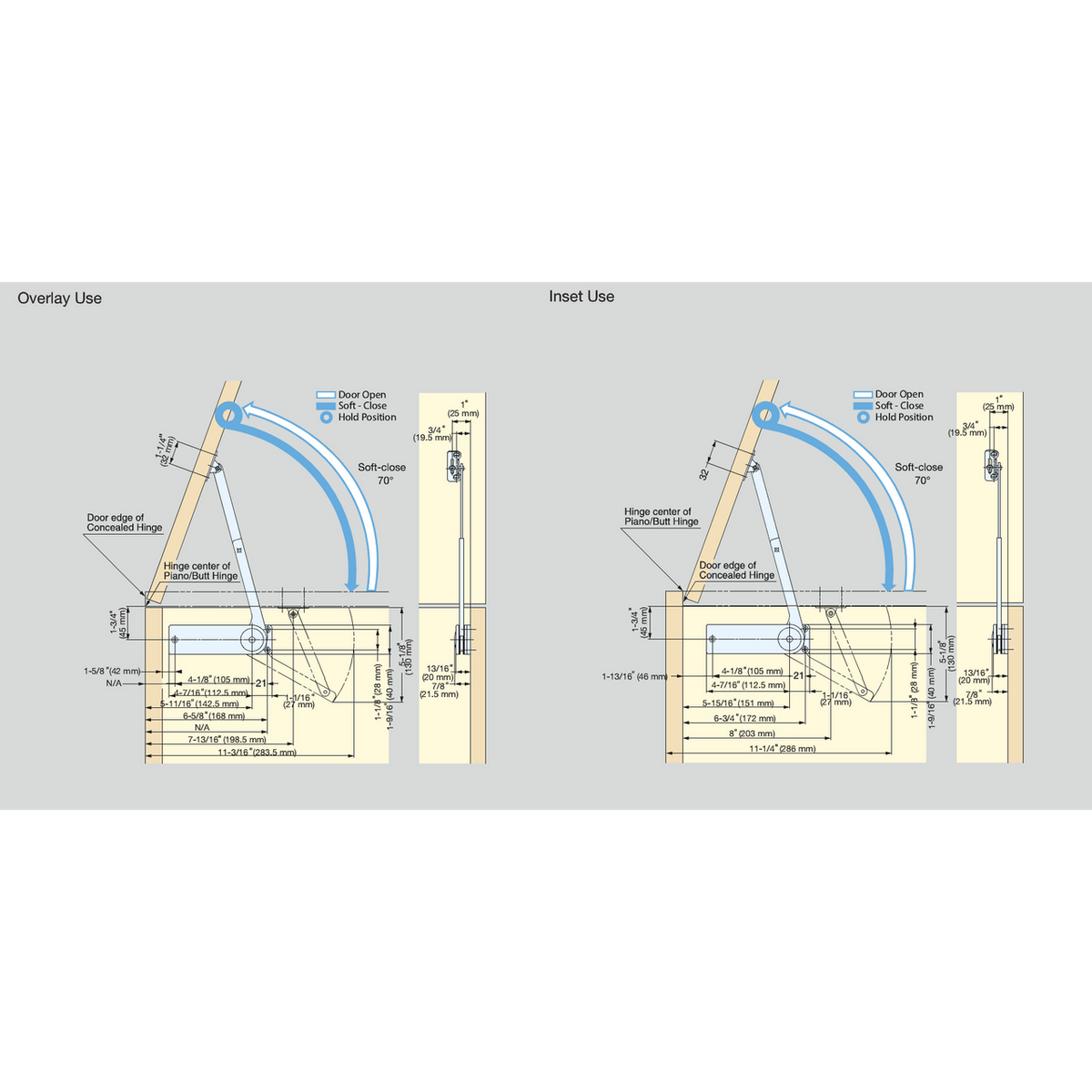

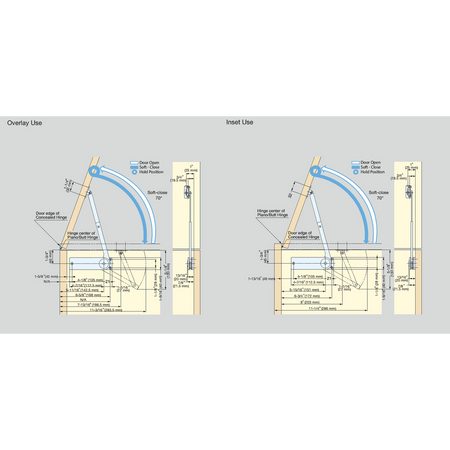

Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HDS-20KR/WHT: 70 Degree Light Duty Soft-Down Lid Stay (right) - White

Sugatsune
|
SKU: suga-HDS-20KR/WHT
In stock
(0)
$29.50
-15% $34.70 $29.50
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune HDS-20KR/WHT: 70 Degree Light Duty Soft-Down Lid Stay (right) in White finish.
  • Sugatsune Lapcon technology
  • For top opening flap door
  • Designed to hold the door open at a 70 degree angle, with a soft-close feature
  • Use with piano, butt or concealed hinges
  • Used in pairs (left and right), sold separately
  • Sold by each
  • Left side is part number suga-HDS-20KL/WHT
  • Torque Calculation: Torque = door height x 1/2 x door weight
  • Torque rating: 140 - 200 kg/cm (121 - 173 lbs./inch) per pair
  • Mounting hardware included

Specifications

Height: 5.12″
Width: 11.26″
Depth: 1.2″
