Sugatsune HDSN-30HL: Heavy Duty Concealed Lid Stay (left) - Nickel
Regular price
$43.95
Regular price
-15%
$51.70
Sale price
$43.95
IMPORTANT: This item has specific information available that needs to be reviewed before purchasing. Click the button below to see more.
View Complete Product Information HereCouldn't load pickup availability
Have Questions? Ask an Expert!

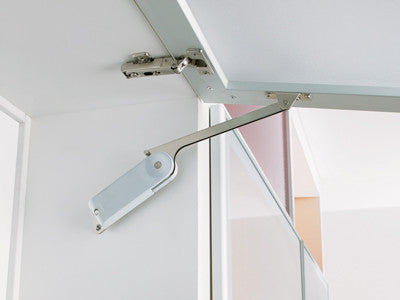

Sugatsune HDSN-30HL: Heavy Duty Concealed Lid Stay (left) in Nickel finish.
- Sugatsune Lapcon soft close technology

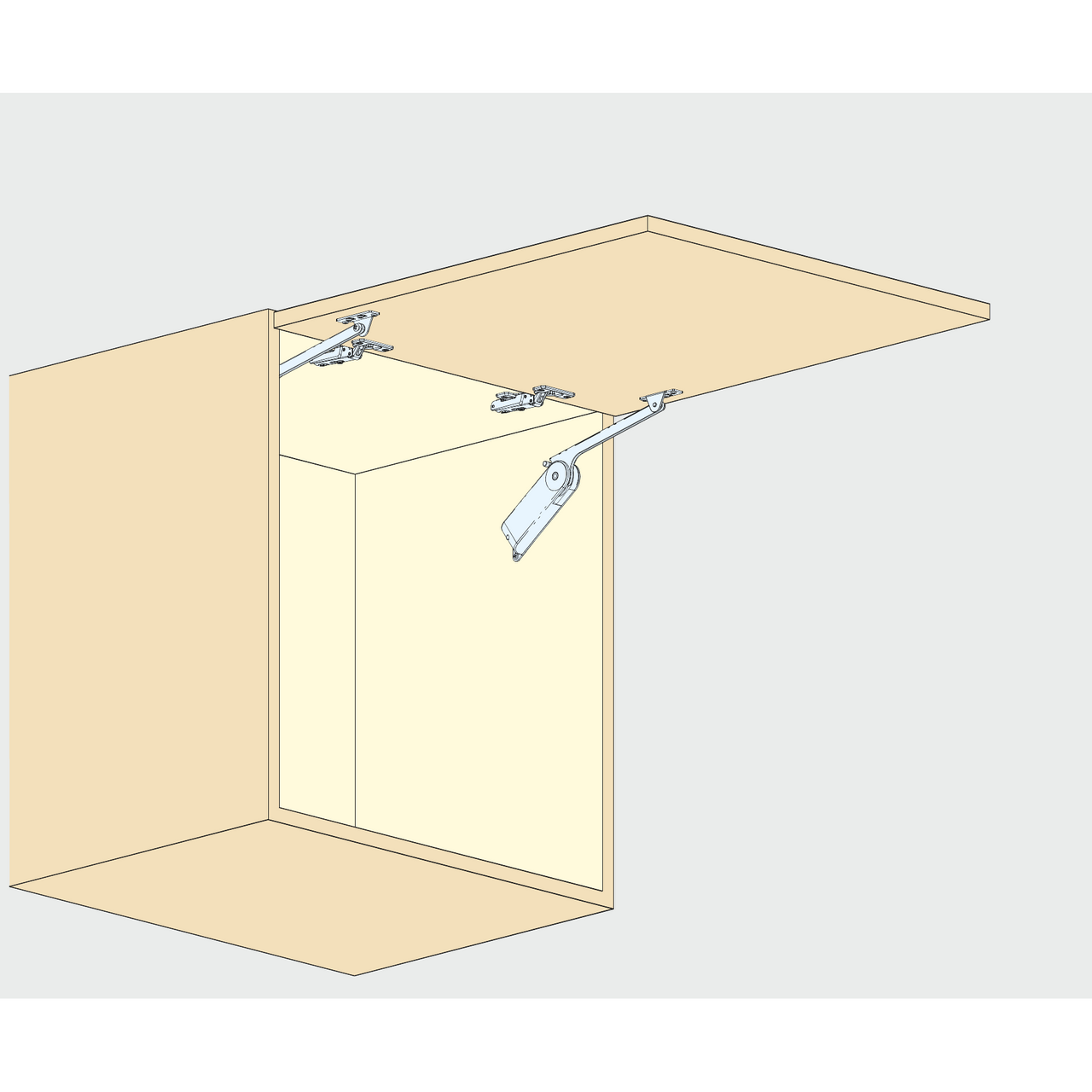

- For upward opening overlay doors
- Designed for use with concealed hinges
- Designed to hold door in open and closed positions
- Used in pairs (left and right), sold separately
- Torque rating:
-90 degree opening: 191 to 225 lbs./inch
-80 degree opening: 217 to 260 lbs./inch - Torque calculation: Torque = Door height x 1/2 x door weight
- Arm mounting plate for wood or 45mm width aluminum frame door sold separately, order part number suga-HDSN-SZ
- Arm mounting plate for 20mm width aluminum frame door sold separately, order part number suga-HDSN-AZ
- Mounting screws included
Specifications
Height: 7.87″Width: 8.76″
Depth: 1.2″
