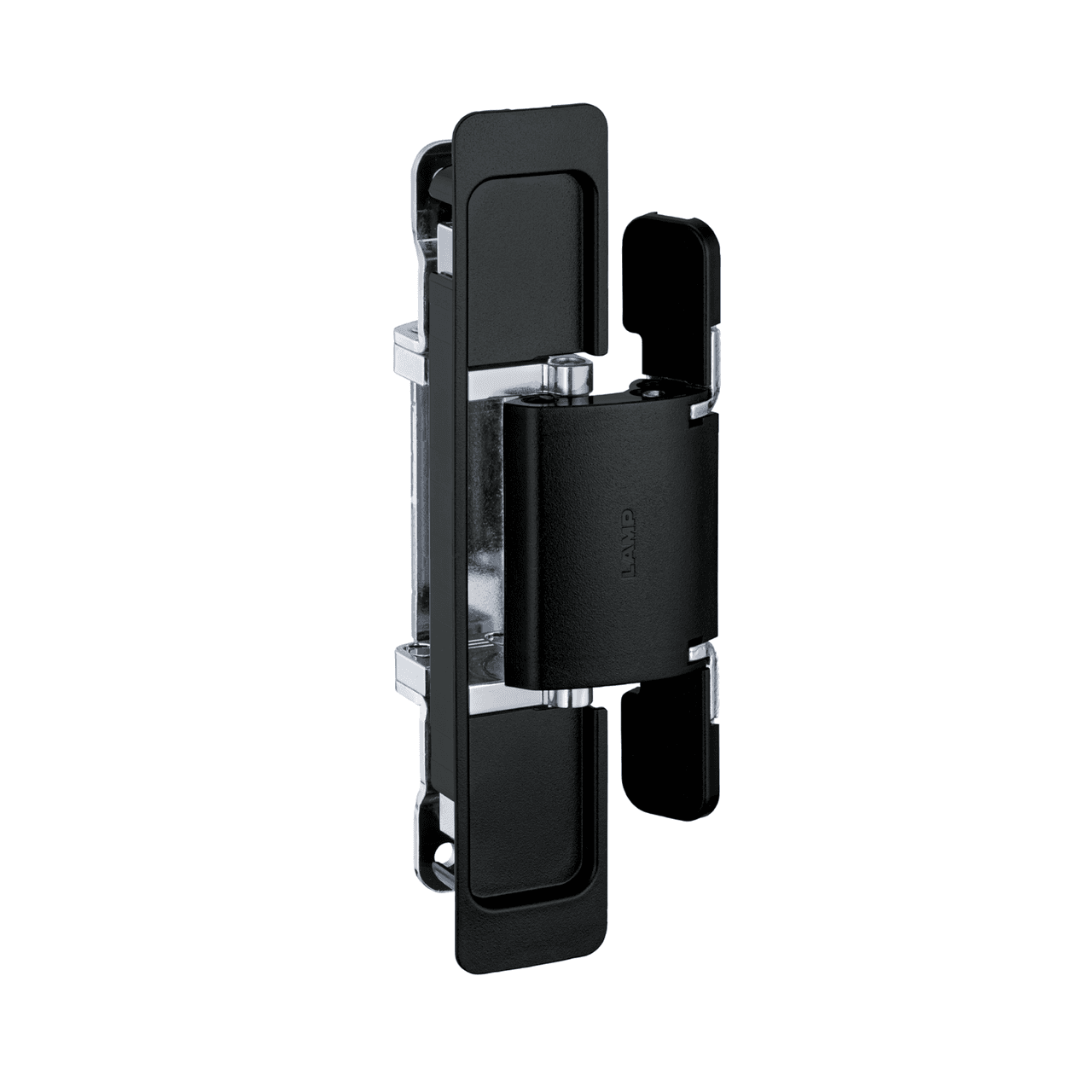

Sugatsune HES2S-150-A110-BL: Surface Mount Concealed Door Hinge - Black
Regular price
$54.40
Regular price
-15%
$64.00
Sale price
$54.40
Sugatsune HES2S-150-A110-BL: Surface Mount Concealed Door Hinge in Black finish.
Click here to view catalog

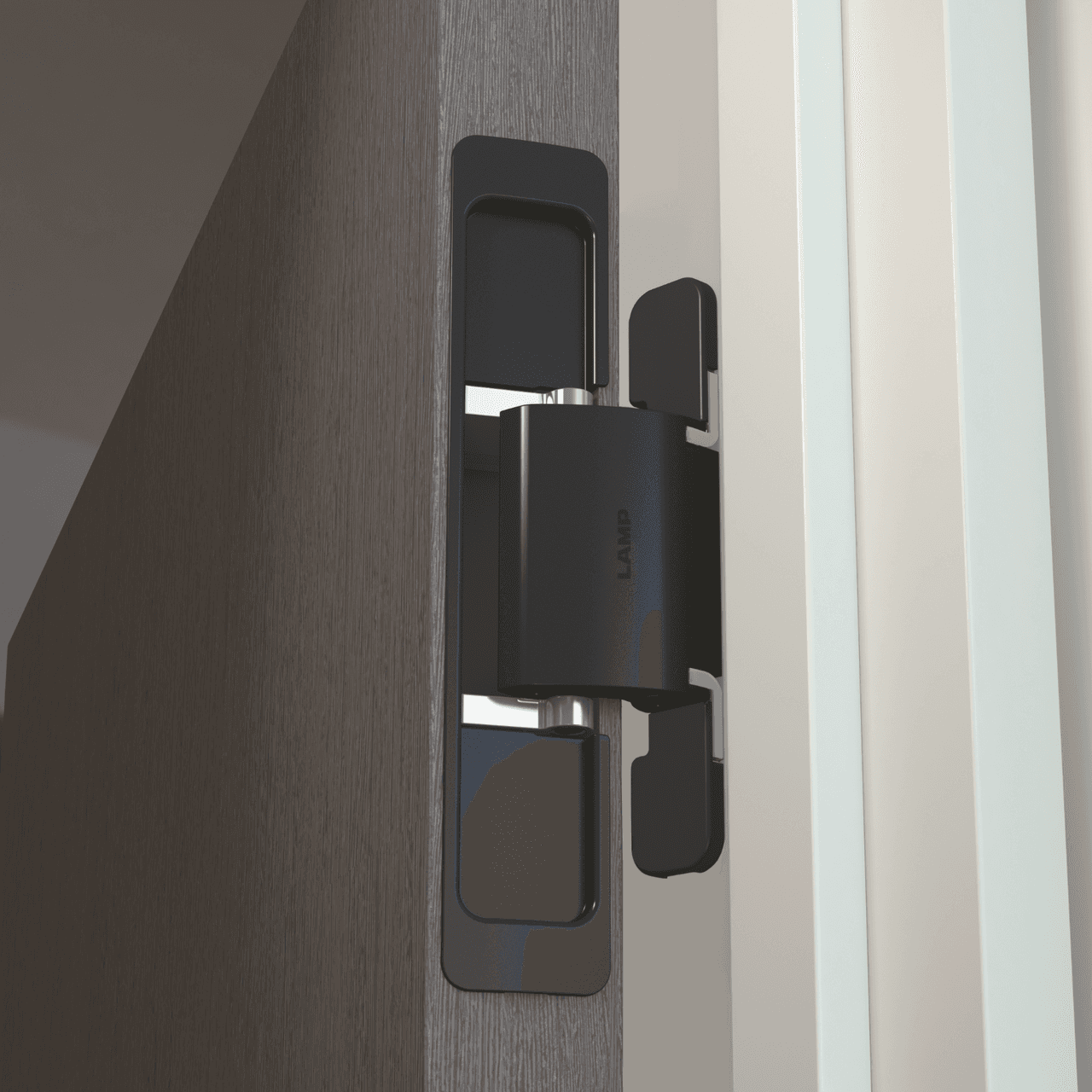

- Surface mounts to door frame
- 110° maximum opening angle
- Door stopper is required to prevent breakage and hinge failure
- Centerline mounting on 1-3/8" thick door allows left-hand or right-hand operation

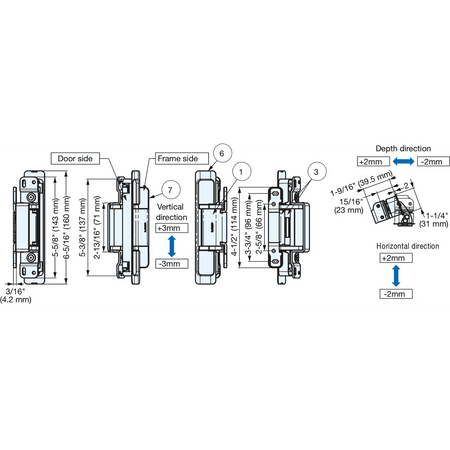

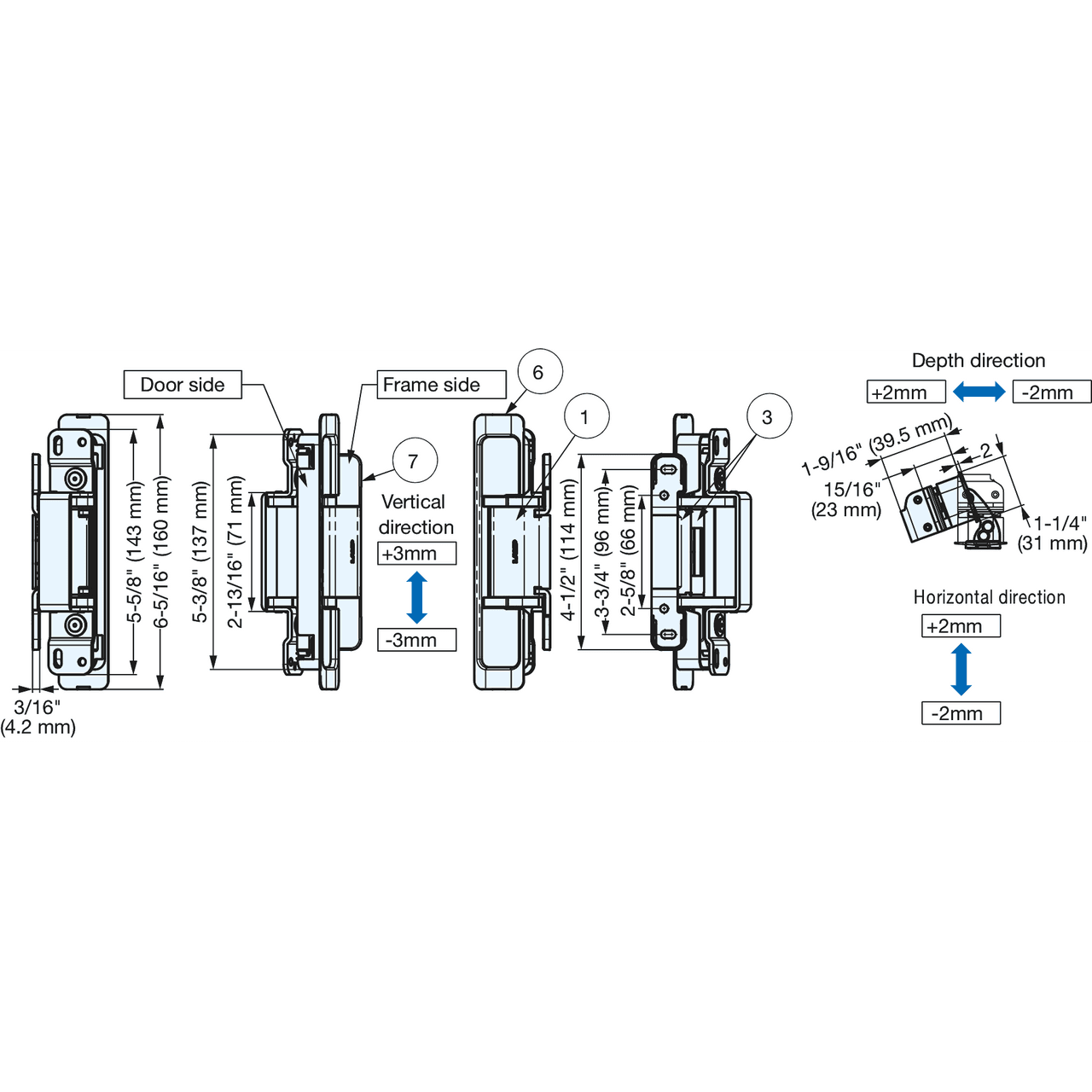

- 3-way adjustability: depth, vertical and horizontal with spacer
- Mounting screws included
Door Dimensions- Maximum door height: 106-5/16"
- Maximum door width: 35-7/16"
- Minimum door thickness: 1-3/8"
- Maximum Door weight with 2 hinges: 88 lbs.
- Maximum door weight with 3 hinges: 110 lbs.
Specifications
Height: 1.062992125984252″Width: 1.7125984251968505″
Depth: 5.62992125984252″
Country of Origin: China
