Sugatsune HES2S-150-A110-WT: Surface Mount Concealed Door Hinge - White

Sugatsune
|
SKU: suga-HES2S-150-A110-WT
In stock
(0)
$54.40
-15% $64.00 $54.40

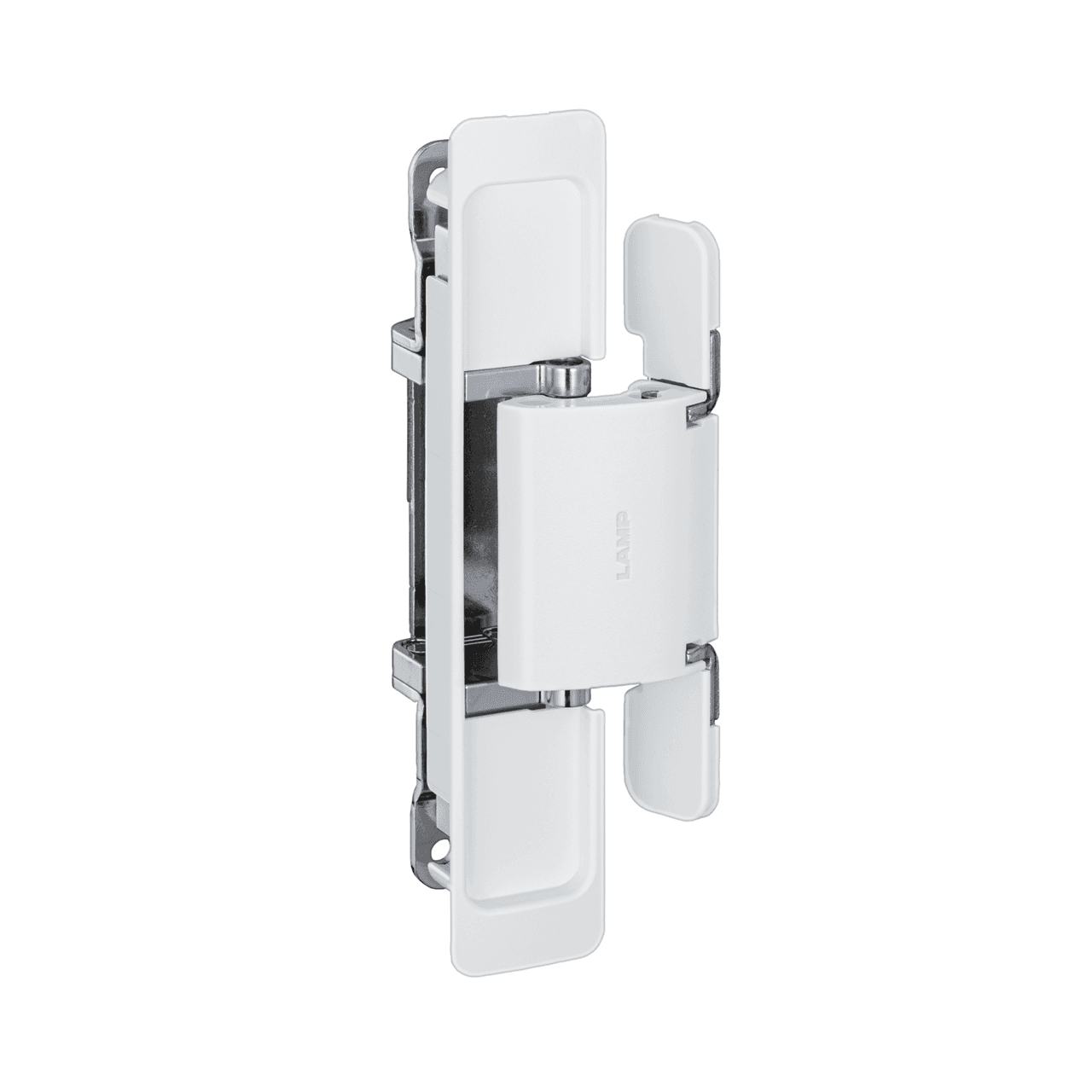

Sugatsune HES2S-150-A110-WT: Surface Mount Concealed Door Hinge in White finish.
  • Surface mounts to door frame
  • 110° maximum opening angle
  • Door stopper is required to prevent breakage and hinge failure
  • Centerline mounting on 1-3/8" thick door allows left-hand or right-hand operation

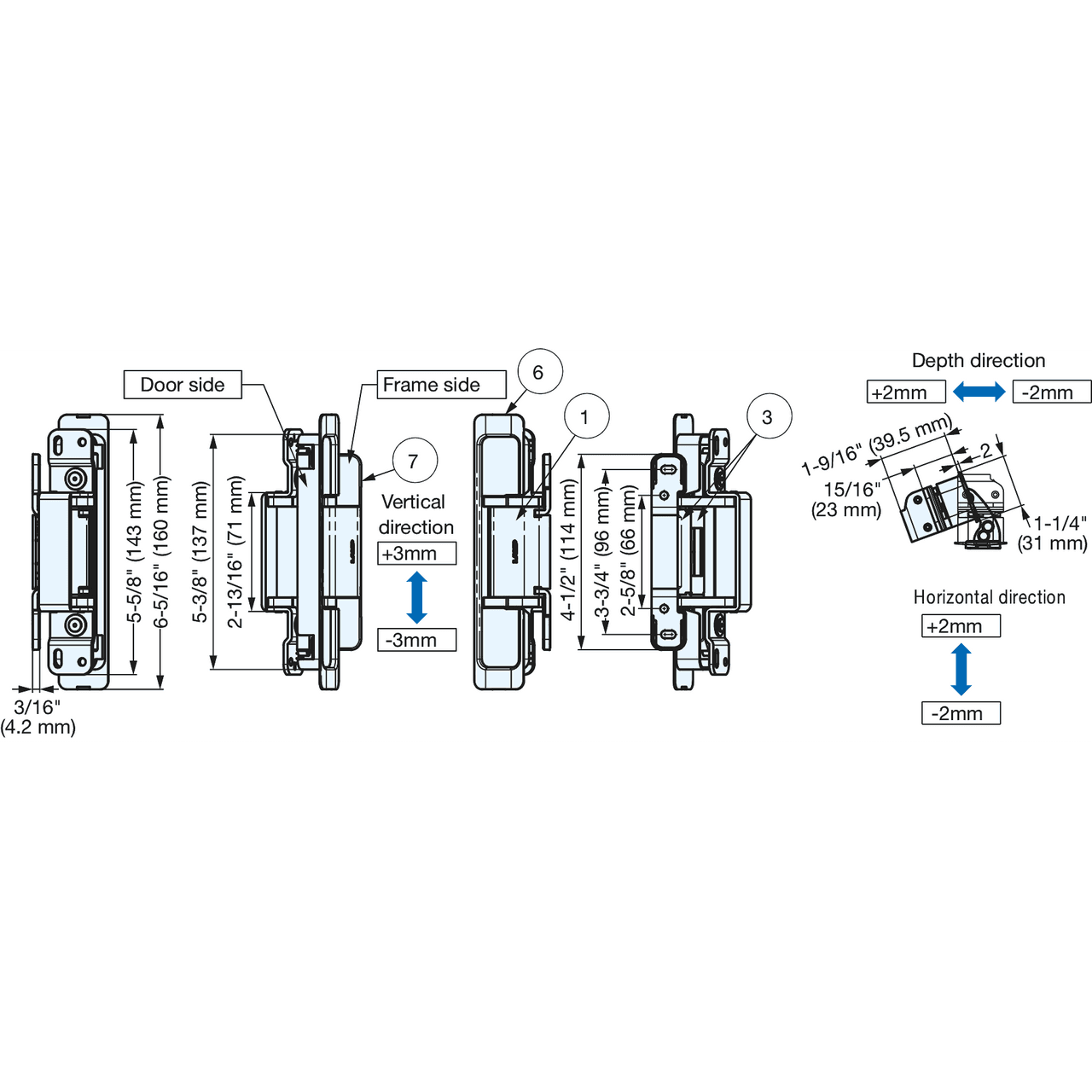

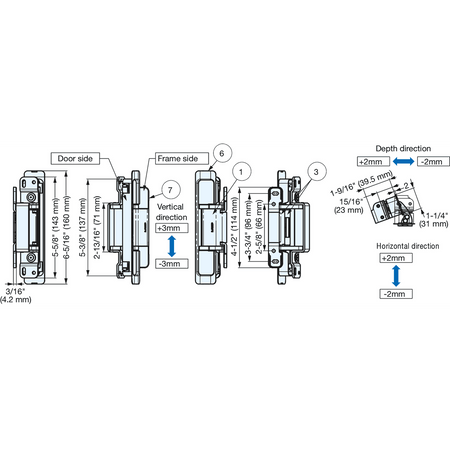

  • 3-way adjustability: depth, vertical and horizontal with spacer
  • Mounting screws included
    Door Dimensions
    • Maximum door height: 106-5/16"
    • Maximum door width: 35-7/16"
    • Minimum door thickness: 1-3/8"
    • Maximum Door weight with 2 hinges: 88 lbs.
    • Maximum door weight with 3 hinges: 110 lbs.
Click here to view catalog

Specifications

Height: 1.062992125984252″
Width: 1.7125984251968505″
Depth: 5.62992125984252″
Country of Origin: China
