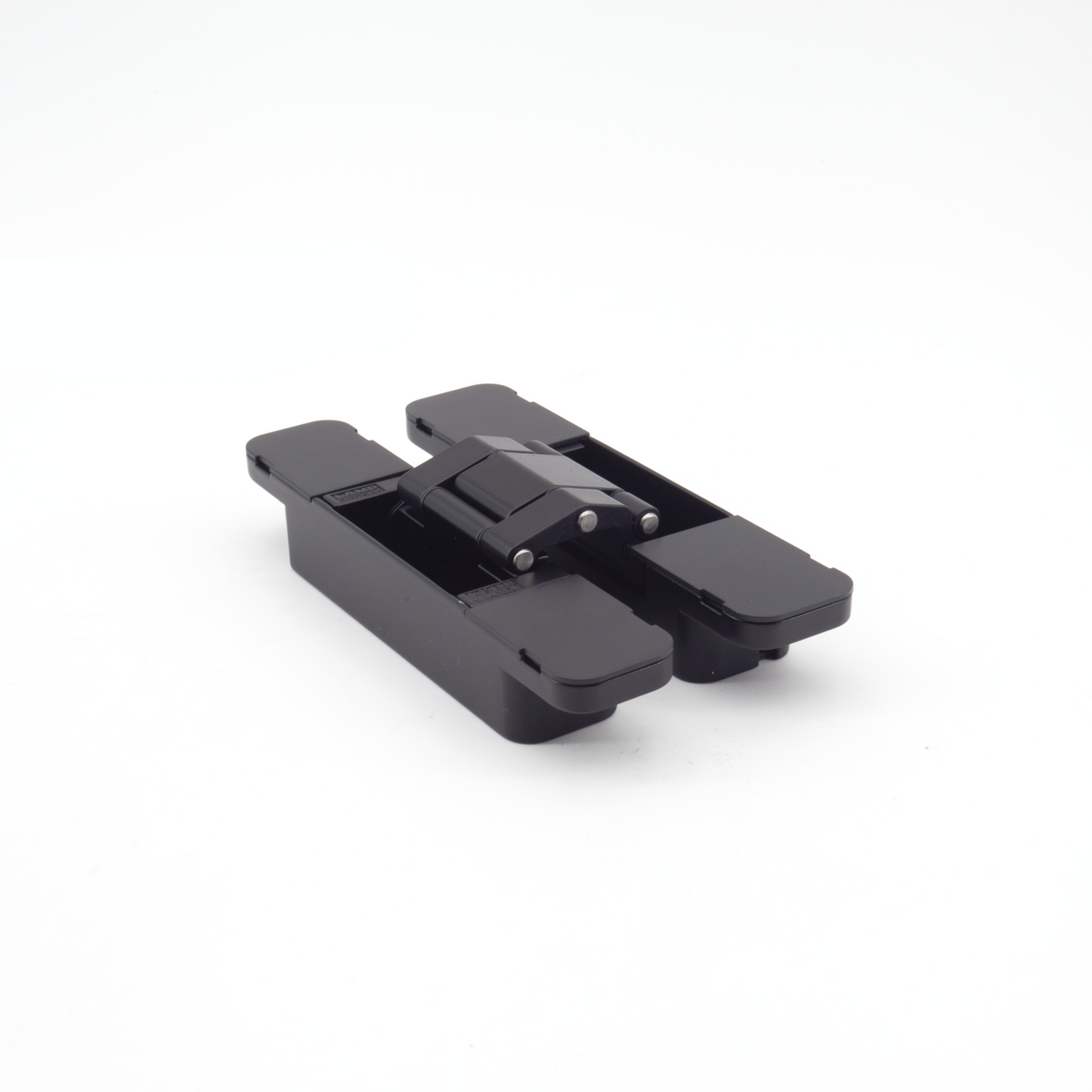

Sugatsune HES3D-120BL: 4-3/4" 3-Way Adjustable Concealed Door Hinge - Black
Sugatsune HES3D-120BL: 4-3/4" 3-Way Adjustable Concealed Door Hinge - Black

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HES3D-120BL: 4-3/4" 3-Way Adjustable Concealed Door Hinge - Black

Sugatsune
|
SKU: suga-HES3D-120BL
In stock
(0)
$70.13
-15% $82.50 $70.13
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

Sugatsune HES3D-120BL: 4-3/4" 3-Way Adjustable Concealed Door Hinge in Black finish.

  • 3-way adjustment function allows vertical, horizontal and depth adjustment after hinge is installed
  • Lift-off feature for easy installation. Hinge can be split in two parts and door can be temporarily hung for positioning without screwing in hinge
  • Covers hide screw heads for clean appearance
  • Maximim door weight:
    -66 lbs. per pair
    - 88 lbs. with 3 hinges
  • Door Dimensions:
    -Minimum door thickness: 1-1/8"
    -Maximum Height: 94-1/2"
    -Maximum width: 35-7/16"Glass door and sheet metal mounting brackets available, sold separately
  • Mounting hardware included

Specifications

Height: 4.72″
Width: 1.71″
Depth: 0.98″
