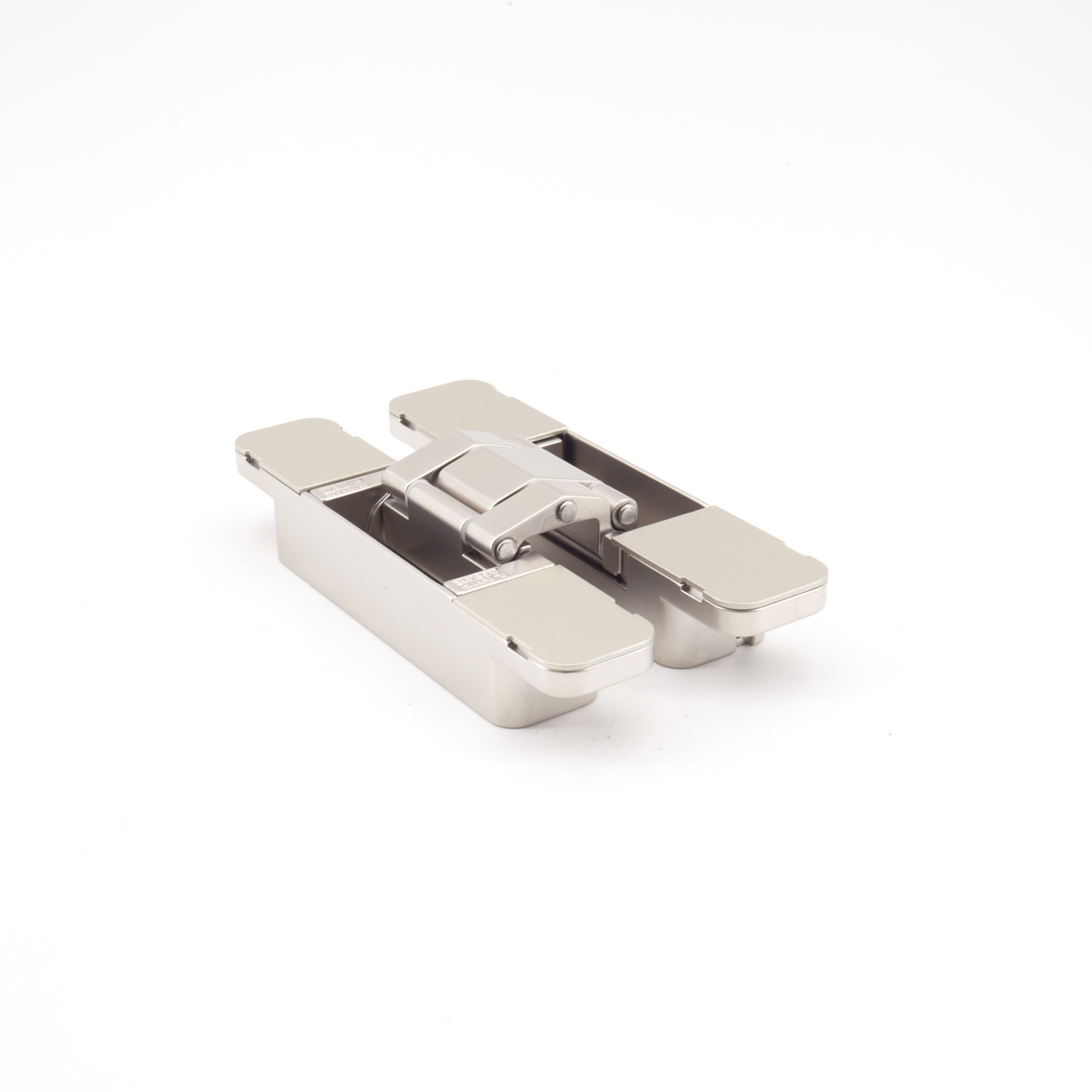

Sugatsune HES3D-120DN: 4-3/4" 3-Way Adjustable Concealed Door Hinge - Dull Nickel

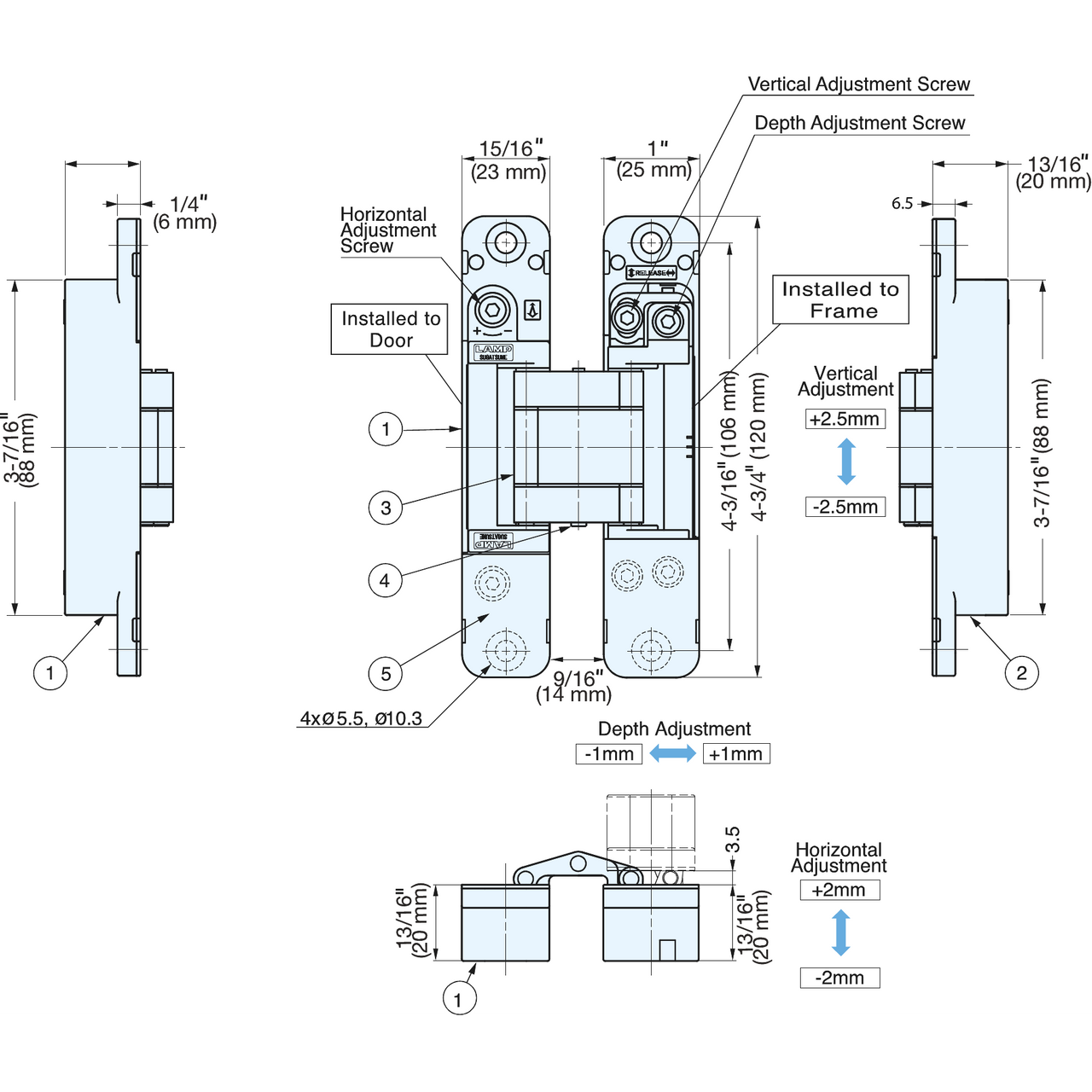

Line Drawing
Sugatsune HES3D-120DN: 4-3/4" 3-Way Adjustable Concealed Door Hinge - Dull Nickel
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune

Sugatsune HES3D-120DN: 4-3/4" 3-Way Adjustable Concealed Door Hinge - Dull Nickel

SKU: suga-HES3D-120DN
(0)
$70.13
-15% $82.50 $70.13
In stock
Usually Ships In 1 to 3 Business Days

Ask an expert!

Email 888-566-2748

Sugatsune HES3D-120DN: 4-3/4" 3-Way Adjustable Concealed Door Hinge in Dull Nickel finish.

  • 3-way adjustment function allows vertical, horizontal and depth adjustment after hinge is installed
  • Lift-off feature for easy installation. Hinge can be split in two parts and door can be temporarily hung for positioning without screwing in hinge
  • Covers hide screw heads for clean appearance
  • Maximum door weight:
    -66 lbs. per pair
    -88 lbs. with 3 hinges
  • Door Dimensions:
    -Minimum door thickness: 1-1/8"
    -Maximum Height: 94-1/2"
    -Maximum width: 35-7/16"
  • Glass door and sheet metal mounting brackets available, sold separately
  • Mounting hardware included
Height: 4.72″
Width: 1.71″
Depth: 0.98″
