Sugatsune HES3D-90BL: 90mm 3-Way Adjustable Concealed Cabinet Hinge - Black
Regular price
$71.83
Regular price
-15%
$84.50
Sale price
$71.83
IMPORTANT!
This item has specific information available that should be reviewed before purchasing. Please click the button below to see more.
View Sugatsune CatalogCouldn't load pickup availability
Have Questions? Ask an Expert!

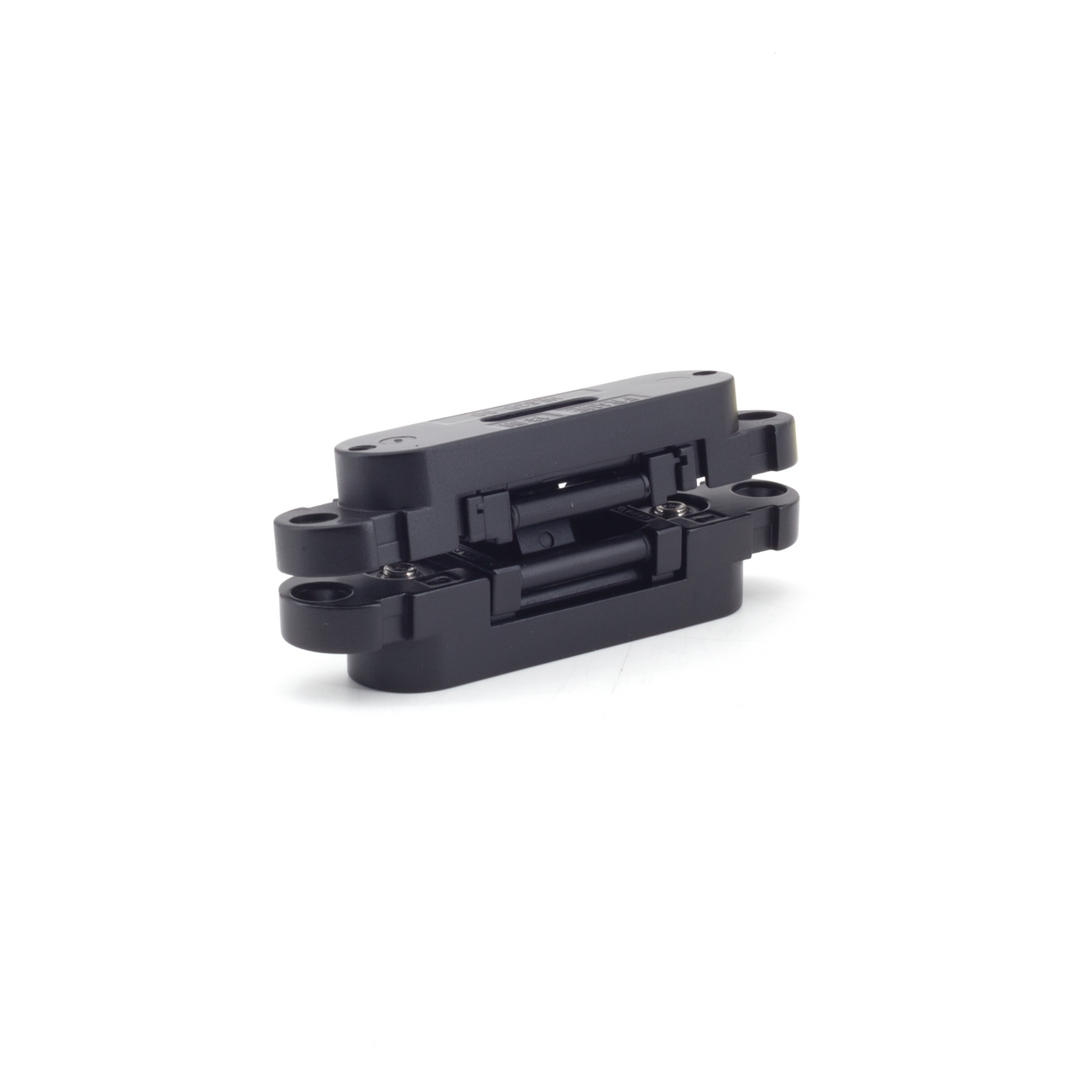

Sugatsune HES3D-90BL: 90mm 3-Way Adjustable Concealed Cabinet Hinge in Black finish.
Click here to view the Sugatsune catalog page for more information about this item
- 3-way adjustment function allows vertical, horizontal and depth adjustment after hinge is installed
- Lift-off feature for easy installation. Hinge can be split in two parts and door can be temporarily hung for positioning without screwing in hinge
- Covers hide screw heads for clean appearance
- Maximim door weight:
-26 lbs. per pair
-35 lbs. with 3 hinges - Door Dimensions:
-Minimum door thickness: 15/16"
-Maximum Height: 59-1/16"
-Maximum width: 23-5/8" - Glass and metal door mounting brackets available, sold separately
- Mounting hardware included
Specifications
Height: 3.54″Width: 1.38″
Depth: 0.71″
