Sugatsune HES3D-90DN: 90mm 3-Way Adjustable Concealed Cabinet Hinge - Dull Nickel
Regular price
$66.39
Regular price
-15%
$78.10
Sale price
$66.39
Couldn't load pickup availability
Have Questions? Ask an Expert!

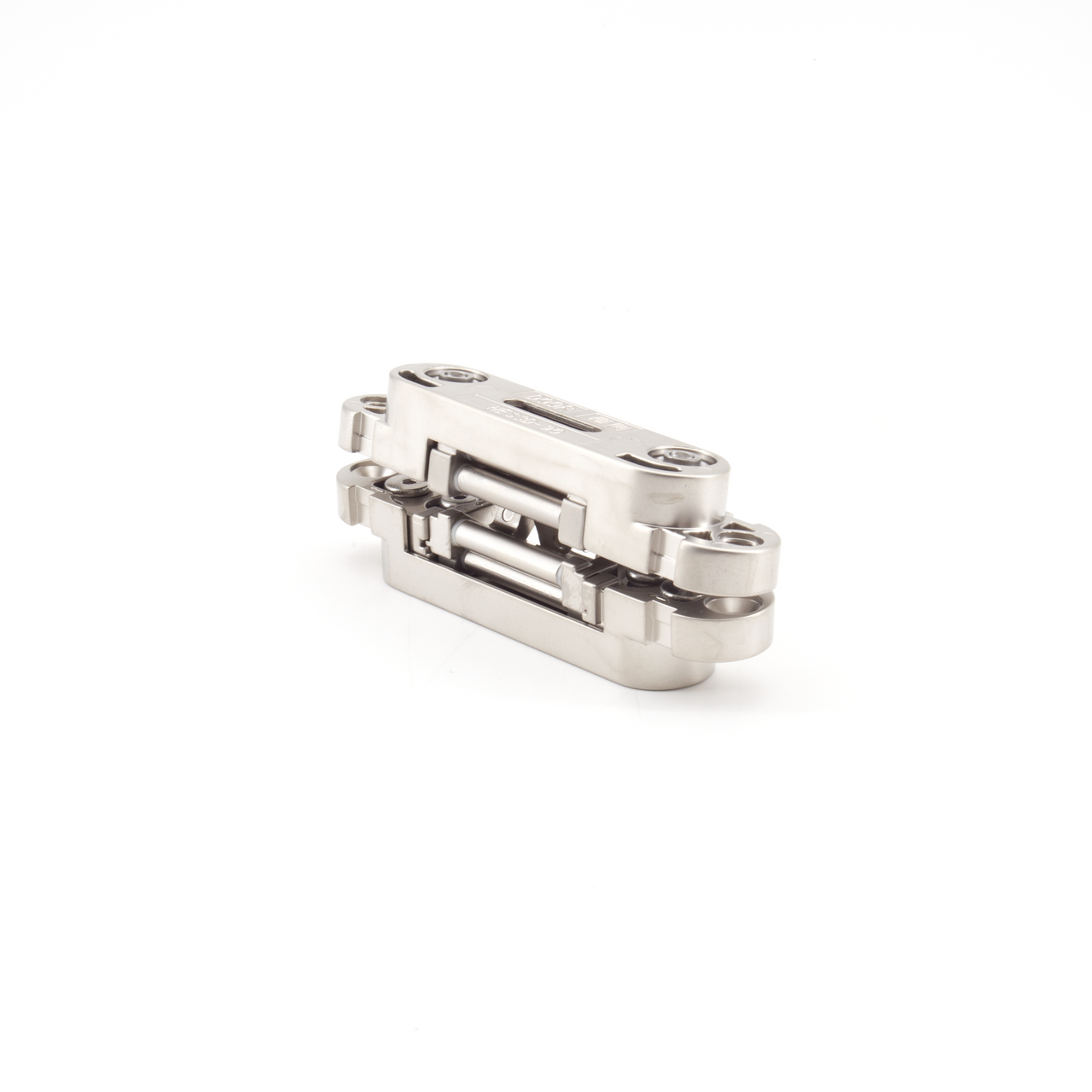

Sugatsune HES3D-90DN: 90mm 3-Way Adjustable Concealed Cabinet Hinge in Dull Nickel finish.
- 3-way adjustment function allows vertical, horizontal and depth adjustment after hinge is installed
- Lift-off feature for easy installation. Hinge can be split in two parts and door can be temporarily hung for positioning without screwing in hinge
- Hinge leaves separate for easy installation
- Covers hide screw heads for clean appearance
- Maximim door weight:
-26 lbs. per pair
-35 lbs. with 3 hinges - Door Dimensions:
-Minimum door thickness: 15/16"
-Maximum Height: 59-1/16"
-Maximum width: 23-5/8" - Glass and metal door mounting brackets available, sold separately
- Mounting hardware included
Specifications
Height: 3.54″Width: 1.38″
Depth: 0.71″
