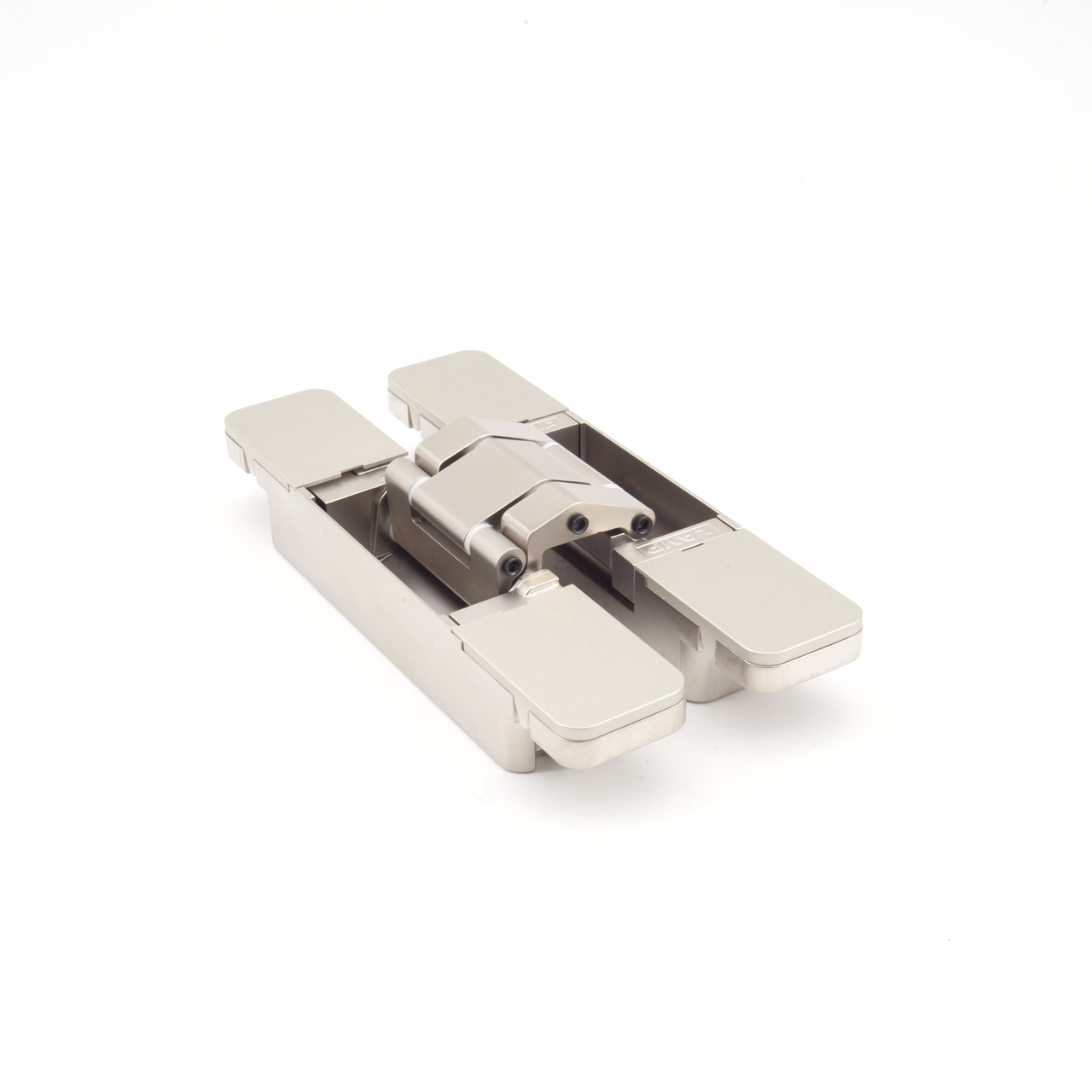

Sugatsune HES3D-E160DN: 160mm 3-Way Adjustable Concealed Hinge - Dull Nickel
Sugatsune HES3D-E160DN: 160mm 3-Way Adjustable Concealed Hinge - Dull Nickel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HES3D-E160DN: 160mm 3-Way Adjustable Concealed Hinge - Dull Nickel

Sugatsune
|
SKU: suga-HES3D-E160DN
In stock
(0)
$136.00
-15% $160.00 $136.00
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

Sugatsune HES3D-E160DN: 160mm 3-Way Adjustable Concealed Hinge in Dull Nickel finish.

  • 3-way adjustment function allows vertical, horizontal and depth adjustment after hinge is installed
  • Lift-off feature for easy installation. Hinge can be split in two parts and door can be temporarily hung for positioning without screwing in hinge
  • Covers hide screw heads for clean appearance
  • Maximim door weight:
    -121 lbs. per pair
    -154 lbs. with 3 hinges
  • Door Dimensions:
    -Minimum door thickness: 1-3/8"
    -Maximum Height: 94-1/2"
    -Maximum width: 35-7/16"
  • Mounting hardware included

Specifications

Height: 6.3″
Width: 2.11″
Depth: 1.18″
