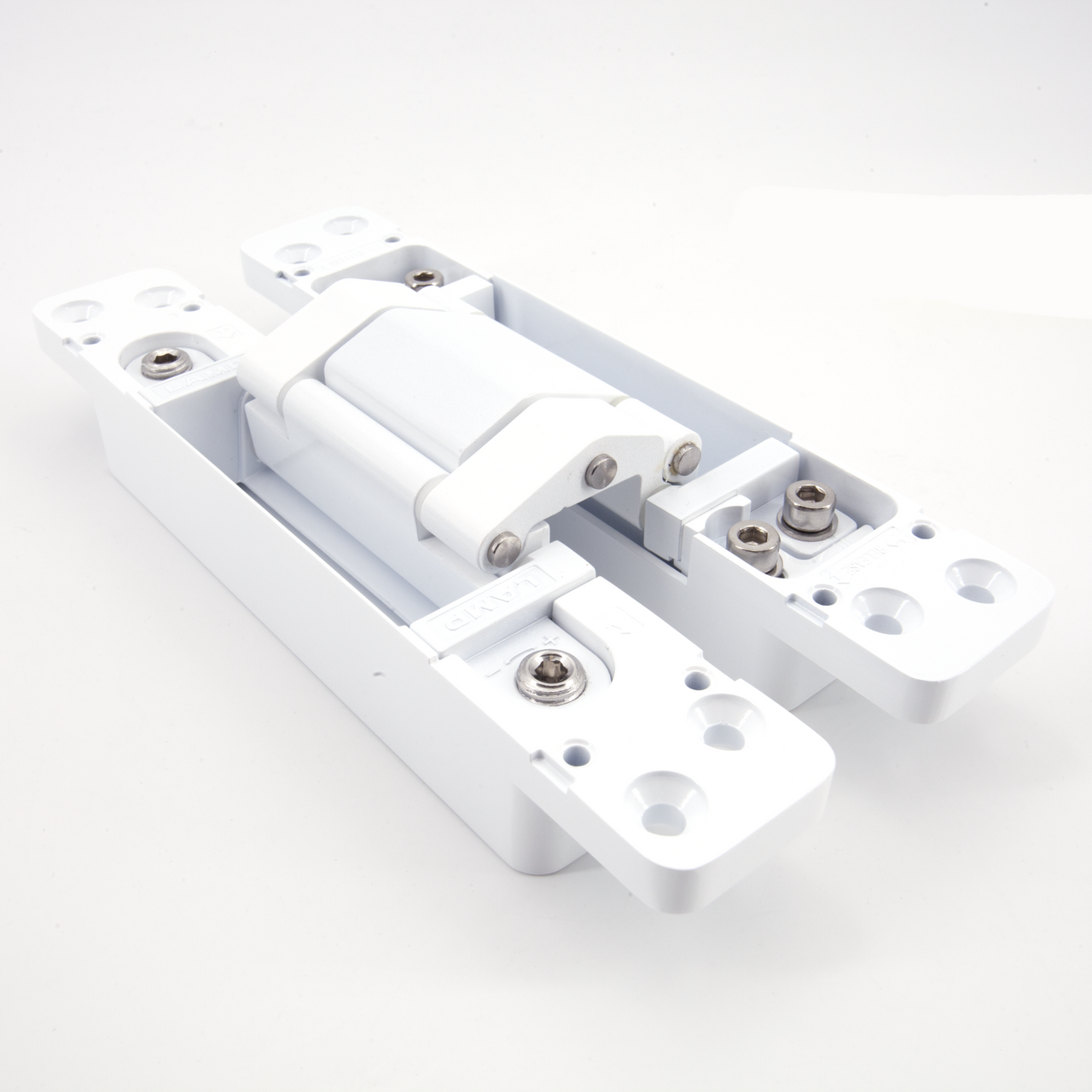

Sugatsune HES3D-E190WT-UL: 190mm 3-Way Adjustable Concealed Door Hinge - White
Sugatsune HES3D-E190WT-UL: 190mm 3-Way Adjustable Concealed Door Hinge - White

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HES3D-E190WT-UL: 190mm 3-Way Adjustable Concealed Door Hinge - White

Sugatsune
|
SKU: suga-HES3D-E190WT-UL
Out of stock
(0)
$161.50
-15% $190.00 $161.50
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

Sugatsune HES3D-E190WT-UL: 190mm 3-Way Adjustable Concealed Door Hinge in White finish.

  • 3-way adjustment function allows vertical, horizontal and depth adjustment after hinge is installed
  • Lift-off feature for easy installation. Hinge can be split in two parts and door can be temporarily hung for positioning without screwing in hinge
  • Covers hide screw heads for clean appearance
  • UL 3 hour fire rating
  • Maximim door weight:
    -220 lbs. per pair
    -275 lbs. with 3 hinges
  • Door Dimensions:
    -Minimum door thickness: 1-1/2"
    -Maximum Height: 94-1/2"
    -Maximum width: 35-7/16"
  • Brackets for mounting to sheet metal door available, sold separately
  • Mounting hardware included

Specifications

Height: 7.48″
Width: 2.34″
Depth: 1.34″
