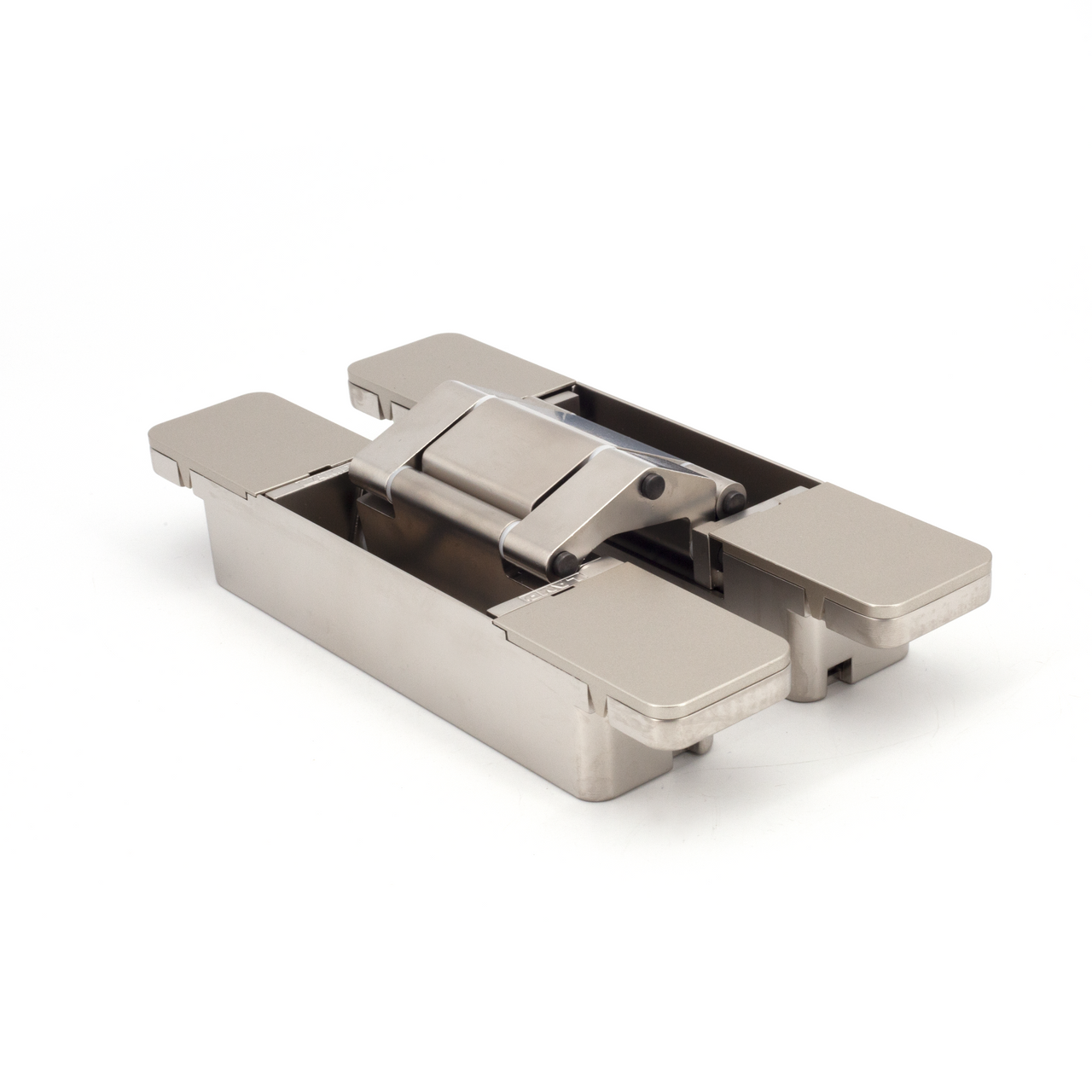

Sugatsune HES3D-W190DN: 190mm 3-Way Adjustable Concealed Door Hinge - Dull Nickel
Regular price
$176.80
Regular price
-15%
$208.00
Sale price
$176.80
Couldn't load pickup availability
Have Questions? Ask an Expert!
Sugatsune HES3D-W190DN: 190mm 3-Way Adjustable Concealed Door Hinge in Dull Nickel finish.
- Designed with a longer arm for 3/8" clearance to accomadate moulding or cladding
- 3-way adjustment function allows vertical, horizontal and depth adjustment after hinge is installed
- Lift-off feature for easy installation. Hinge can be split in two parts and door can be temporarily hung for positioning without screwing in hinge
- Covers hide screw heads for clean appearance
- Maximim door weight:
-220 lbs. per pair
-275 lbs. with 3 hinges - Door Dimensions:
-Minimum door thickness: 1-5/8"
-Maximum Height: 96-1/16" - Mounting hardware included
Specifications
Height: 7.48″Width: 1.42″
Depth: 2.66″
