Sugatsune HG-CSH63AH: Detent Hinge w/Counter-Clockwise Damper - Silver

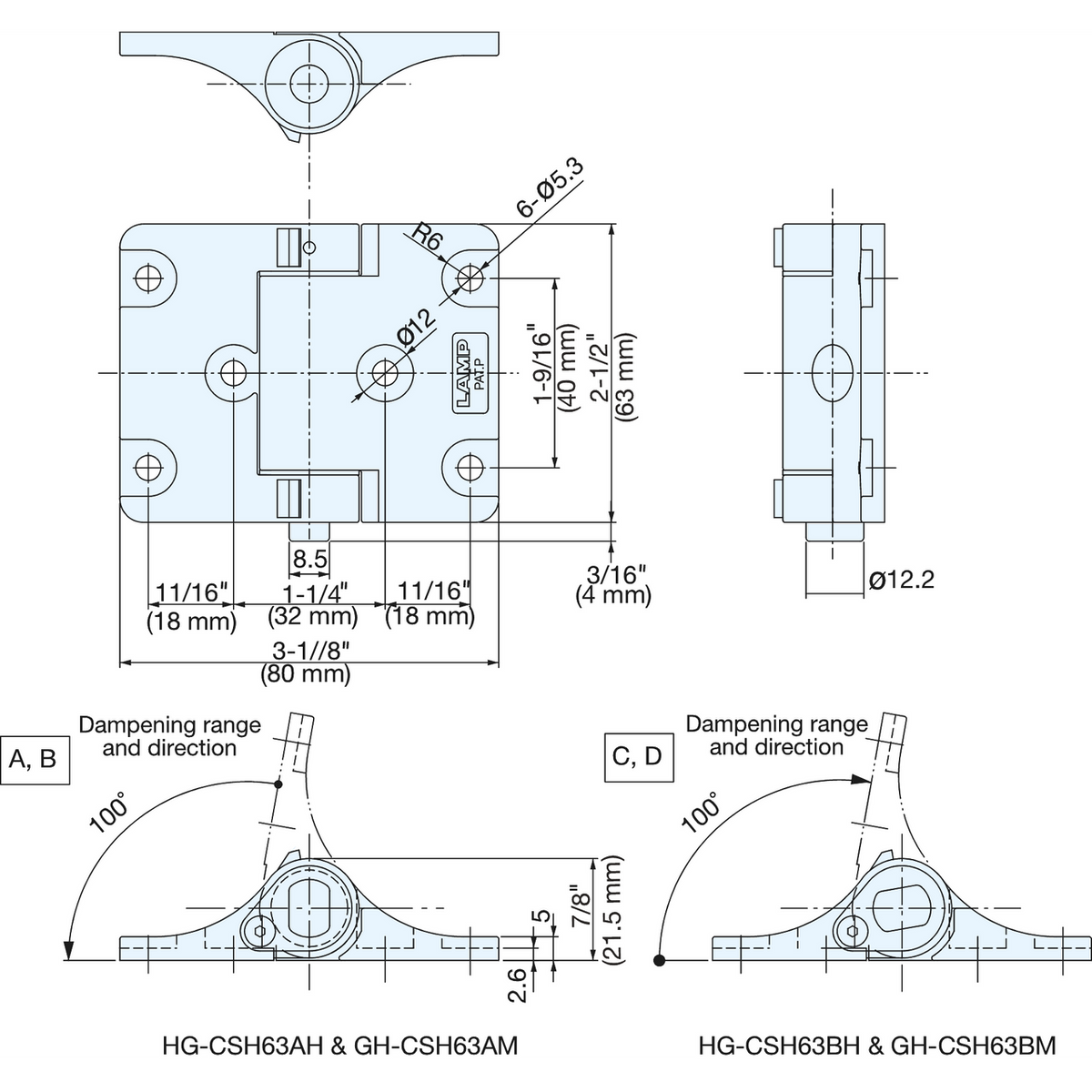

Line Drawing
Sugatsune HG-CSH63AH: Detent Hinge w/Counter-Clockwise Damper - Silver
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HG-CSH63AH: Detent Hinge w/Counter-Clockwise Damper - Silver

Sugatsune
|
SKU: suga-HG-CSH63AH
In stock
(0)
$47.18
-15% $55.50 $47.18
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune HG-CSH63AH: Detent Hinge w/Counter-Clockwise Damper in Silver finish.
  • Detent will hold lid in open or closed position without secondary support
  • Operating angle of 100 degrees
  • Damper operates in counter-clockwise direction to provide soft-closing function
  • Detent at both 0 degrees and 100 degrees
  • Torque rating: 15 - 22 lbs./inch per hinge
  • Detent holding force of 8.8 lbs./inch
  • Mounting hardware not included
Click here to view catalog

Specifications

Height: 2.48″
Width: 0.92″
Depth: 3.15″
