Sugatsune HG-FH128: 5" Detent Hinge - Nickel

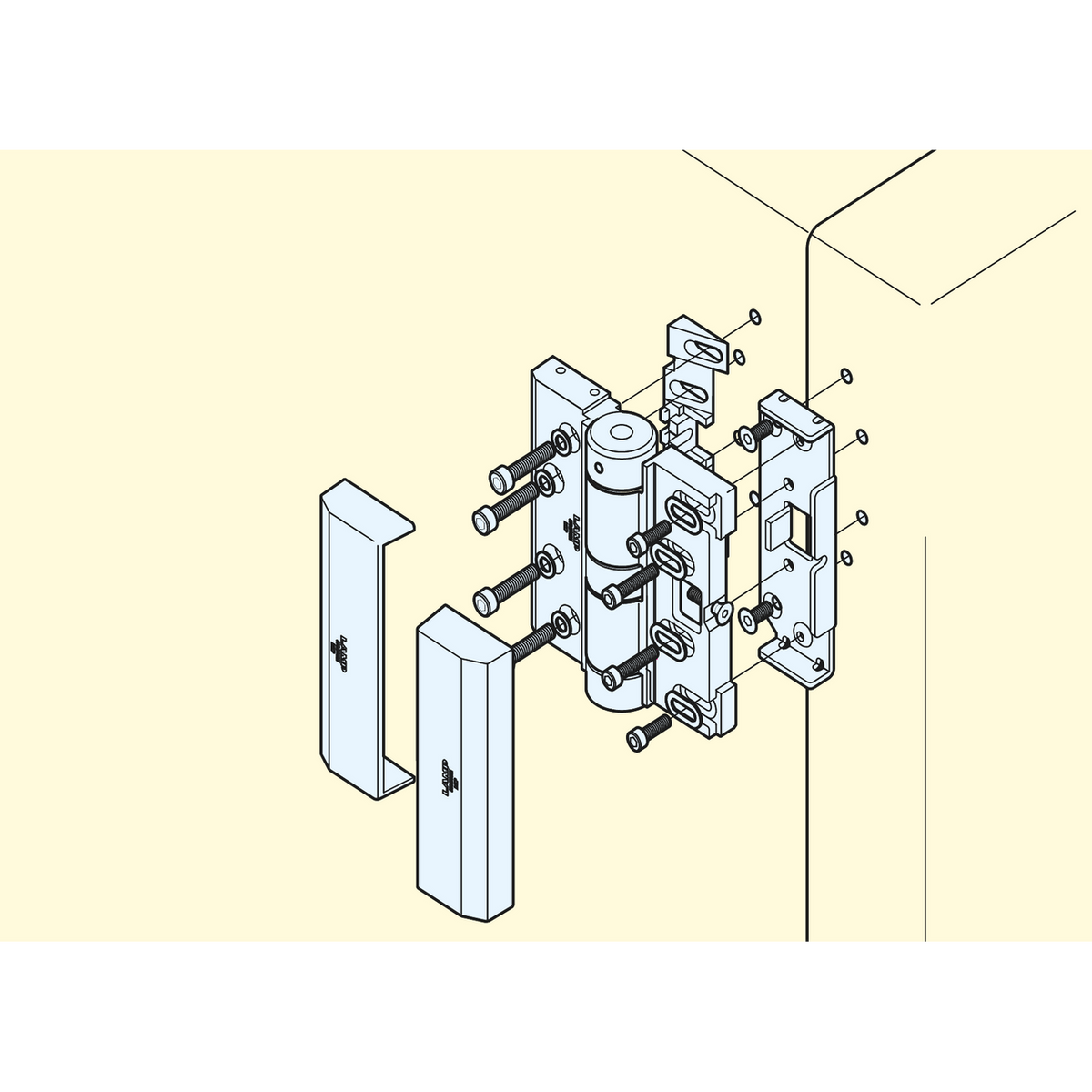

Line Drawing
Sugatsune HG-FH128: 5" Detent Hinge - Nickel

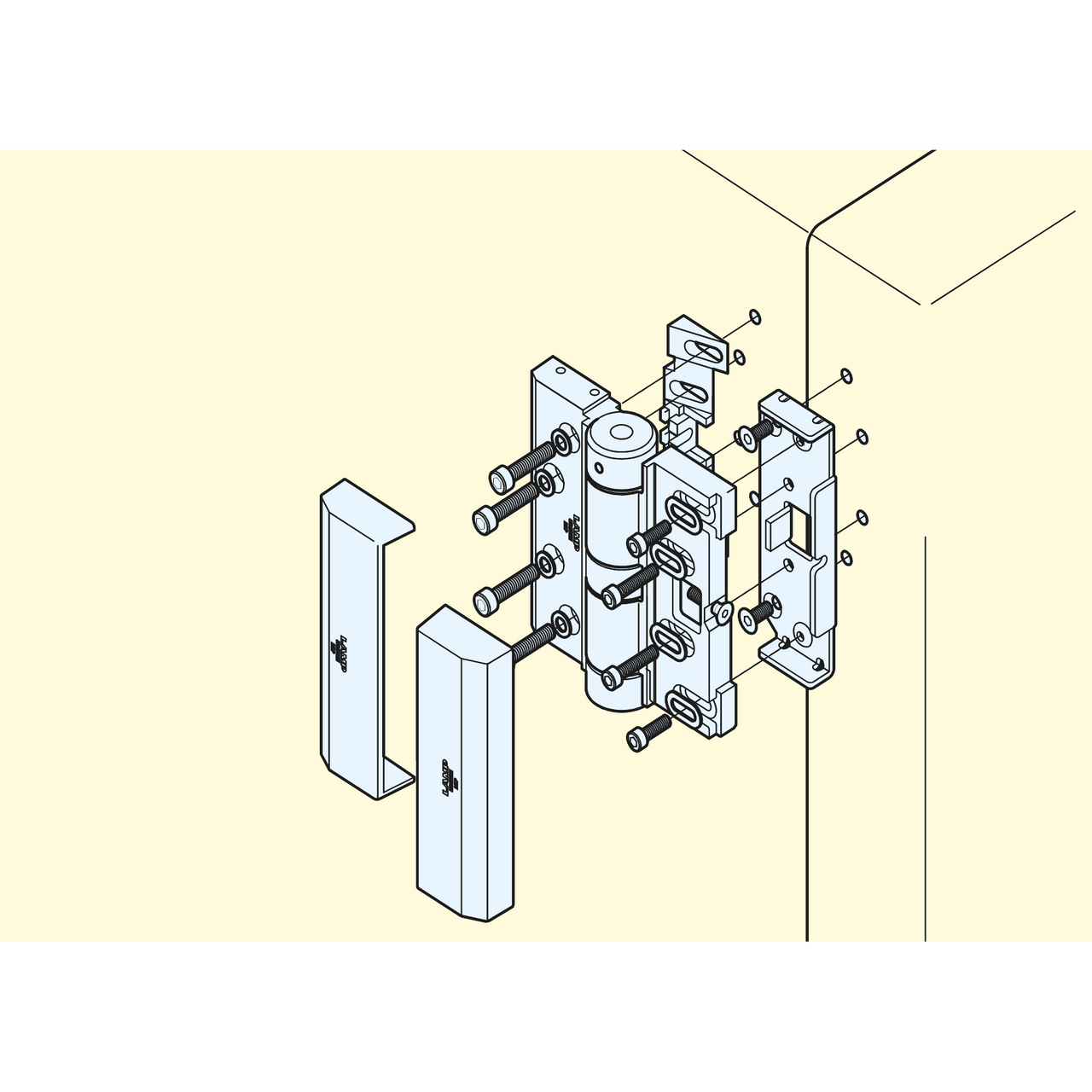

Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HG-FH128: 5" Detent Hinge - Nickel

Sugatsune
|
SKU: suga-HG-FH128
Out of stock
(0)
$143.74
-15% $169.10 $143.74
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune HG-FH128: 5" Detent Hinge in Nickel finish.
  • Ideal for doors that need to be compressed
  • Horizontally adjustable for better compression
  • Holds door at 60 degrees and 120 degrees
  • Maximum opening: 152 degrees
  • Fluoroplastic washer for smooth operation
  • Retaining force of 88.5 lbs./inch
  • Maximum recommended dimensions:
    -Height:36" to 48"
    -Width: 24" to 36"
    -Weight: 88 lbs./pair
  • Sold by each
  • Mounting hardware not included

Specifications

Height: 5.06″
Width: 5.06″
Depth: 1.3″
