Sugatsune HG-JHM14-S-15WT: Soft-Close Dampening Hinge - White

Sugatsune
|
SKU: suga-HG-JHM14-S-15WT
In stock
(0)
$17.26
-15% $20.30 $17.26

IMPORTANT!

This item has specific information available that should be reviewed before purchasing. Please click the button below to see more.

View Sugatsune Catalog
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

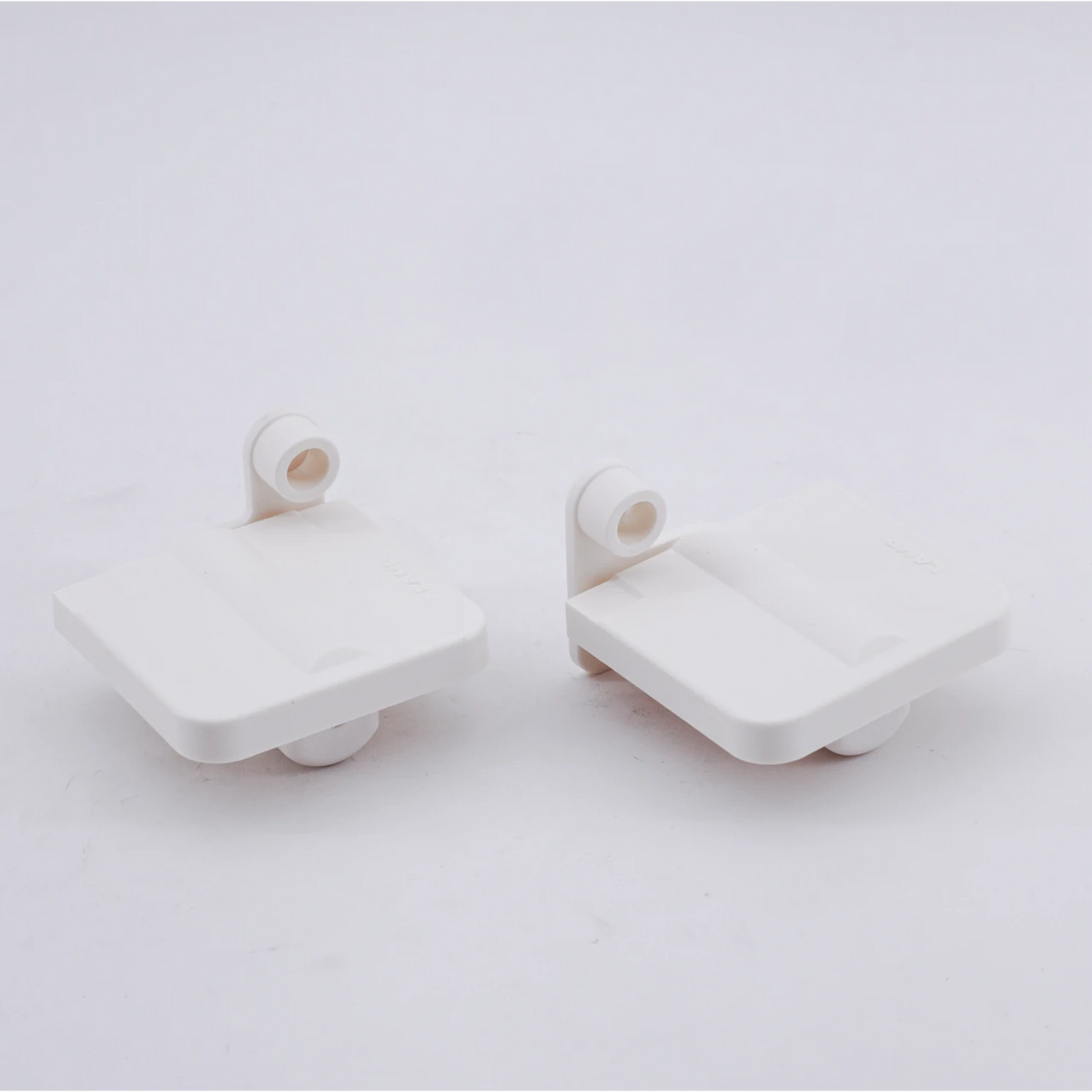

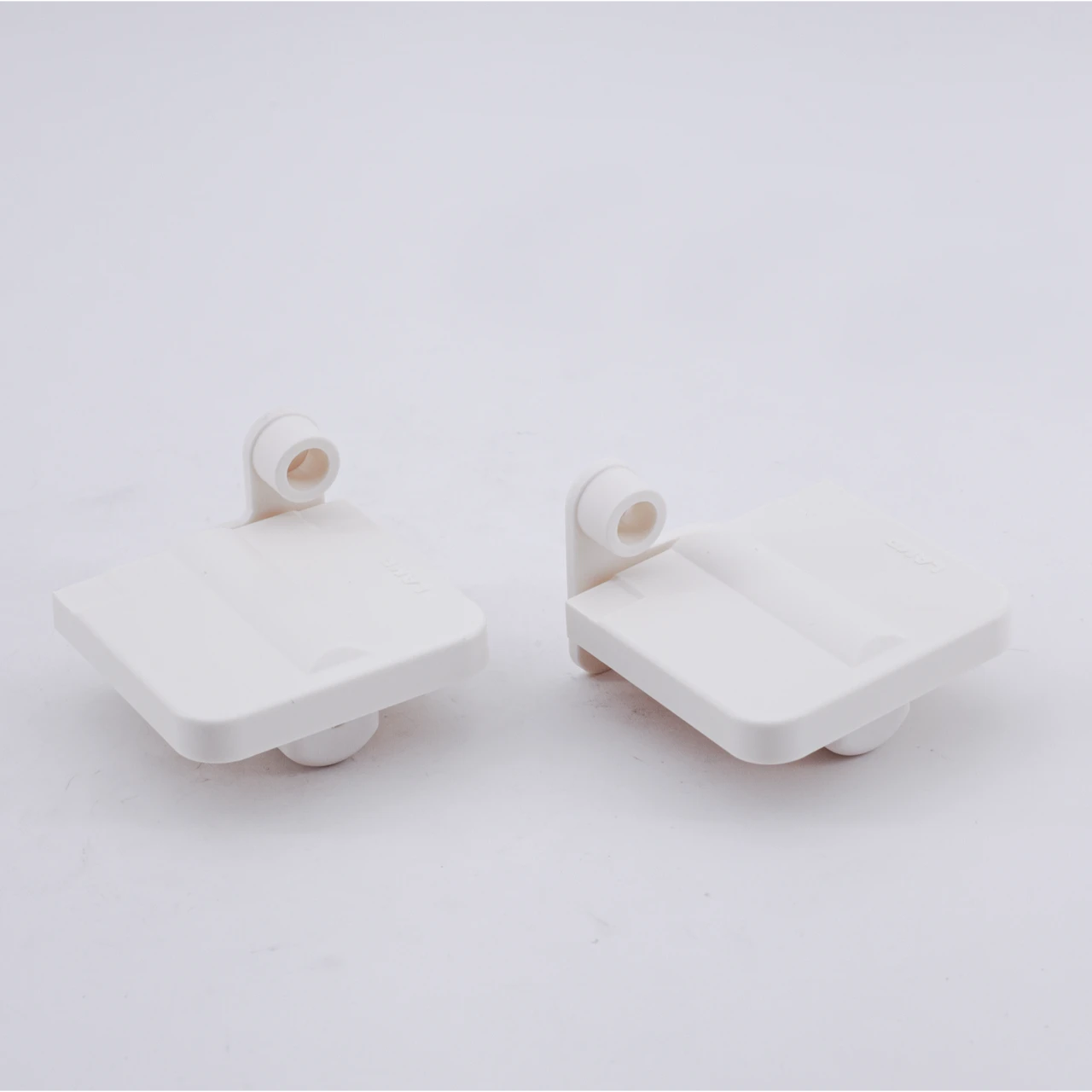

Sugatsune HG-JHM14-S-15WT: Soft-Close Dampening Hinge in White finish.

  • Built-in Lapcon technology damper to keep lid from slamming shut
  • Mortise mount
  • Undermount bracket sold separately, order part suga-UKZ14-WT
  • Minimum door thickness: 5/16"
  • Torque rating: 4.3 - 7lbs./inch per hinge
  • Torque calculation: Torque = door height x .5 x door weight
  • 116 degrees opening angle
  • Sold individually
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 0.83″
Width: 1.89″
Depth: 1.89″
