Sugatsune HG-JHM14-S-20WT: Soft-Close Dampening Hinge - White
Sugatsune HG-JHM14-S-20WT: Soft-Close Dampening Hinge - White

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HG-JHM14-S-20WT: Soft-Close Dampening Hinge - White

Sugatsune
|
SKU: suga-HG-JHM14-S-20WT
In stock
(0)
$17.68
-15% $20.80 $17.68
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

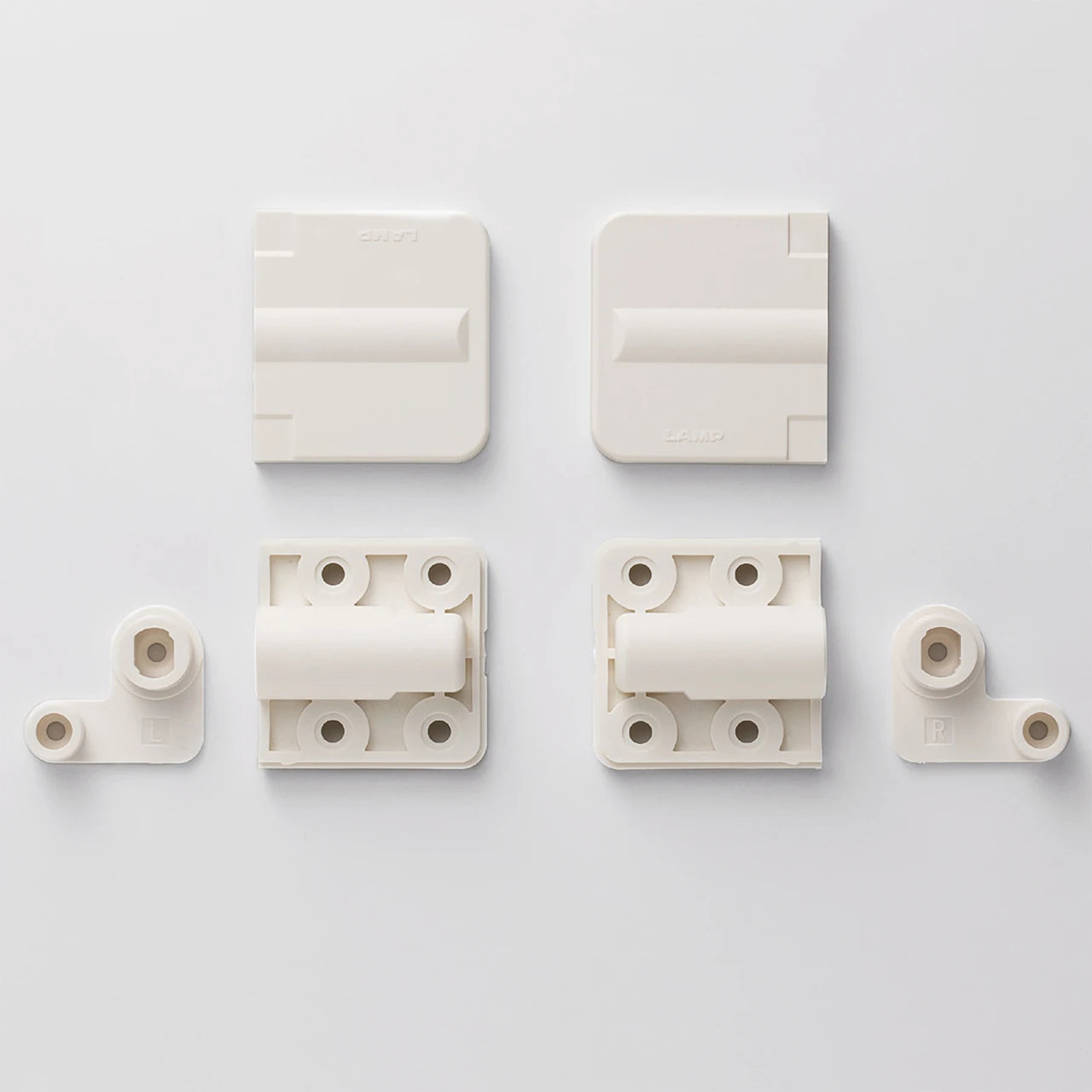

Sugatsune HG-JHM14-S-20WT: Soft-Close Dampening Hinge in White finish.
  • Built-in Lapcon technology damper to keep lid from slamming shut
  • Mortise mount
  • Undermount brackett sold separately, order part suga-UKZ14-WT
  • Minimum door thickness: 5/16"
  • Torque rating: 7 -13 lbs./inch per hinge
  • Torque calculation: Torque = door height x .5 x door weight
  • 116 degrees opening angle
  • Sold by each
  • Mounting hardware not included

Specifications

Height: 0.83″
Width: 1.89″
Depth: 1.89″
