Home » Sugatsune HG-JV65-S-LGR: Horizontal Opening Soft-Close Hinge - Light Grey

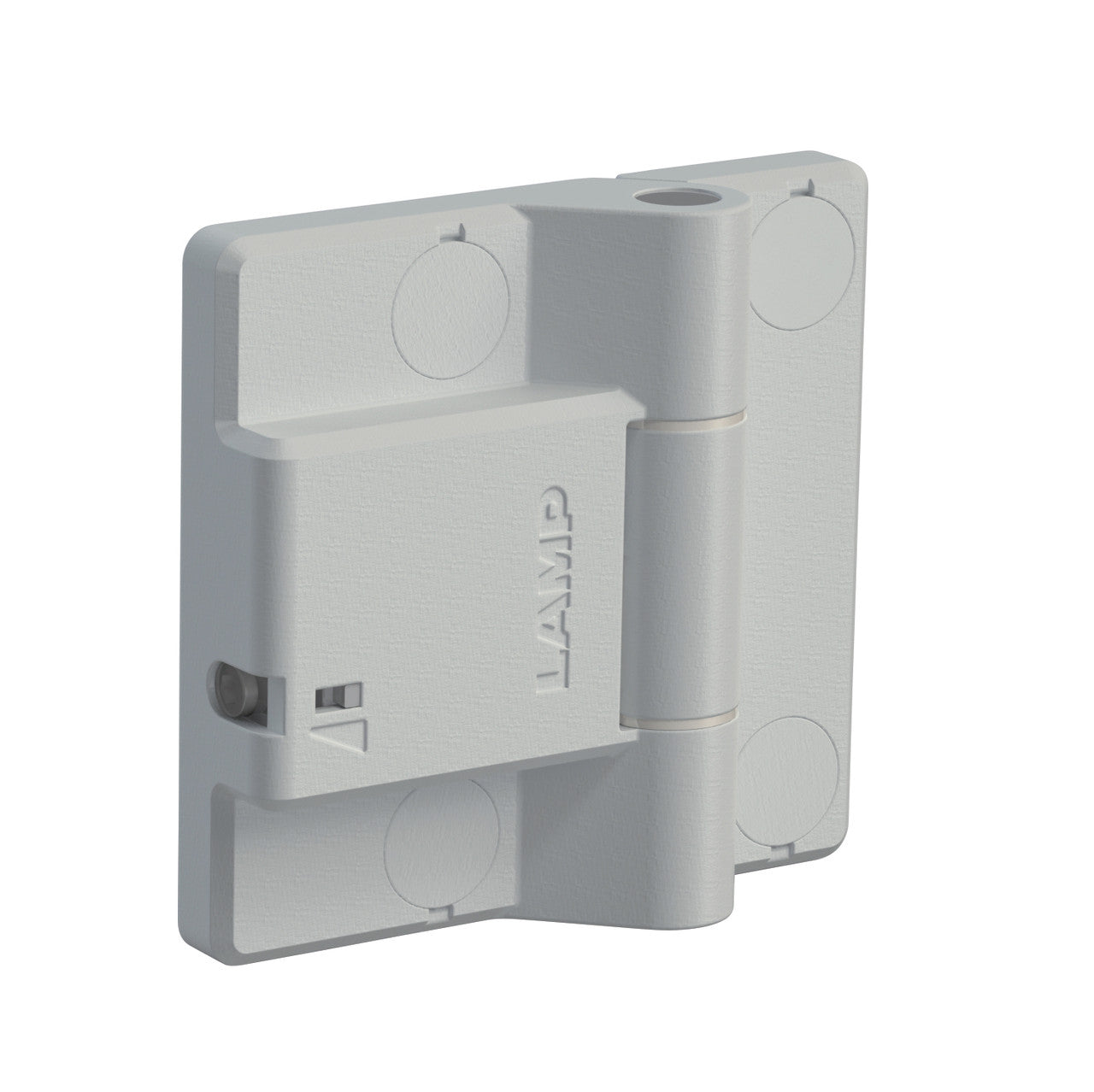

Sugatsune HG-JV65-S-LGR: Horizontal Opening Soft-Close Hinge - Light Grey
Sugatsune HG-JV65-S-LGR: Horizontal Opening Soft-Close Hinge - Light Grey

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HG-JV65-S-LGR: Horizontal Opening Soft-Close Hinge - Light Grey

Sugatsune
|
SKU: suga-HG-JV65-S-LGR
In stock
(0)
$38.17
-15% $44.90 $38.17

IMPORTANT!

This item has specific information available that should be reviewed before purchasing. Please click the button below to see more.

View Sugatsune Catalog
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune HG-JV65-S-LGR: Horizontal Opening Soft-Close Hinge in Light Grey finish.
  • Soft and self-close Lapcon Technology
  • Adjustable closing speed
  • Features self-latching function to firmly hold door closed
  • Surface mount, ideal for food equipment and the medical industry
  • Can be installed on aluminum frames for machine equipment
  • 180 degree operating range, soft-close for the last 35 degrees
  • Do not lubricate, for interior use only
  • Maximum door dimensions:
    -Width: 27-9/16"
    -Height: 94-1/2"
  • Weight (2 hinges): 2.2 - 15.4 lbs.
    -Weight (3 hinges): 15.4 - 26.4 lbs.
  • Sold by each
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 2.56″
Width: 0.67″
Depth: 2.7″
