Sugatsune HG-PTH30: Pivot Torque Hinge - Stainless Steel
Regular price
$70.40
Regular price
-13%
$80.96
Sale price
$70.40
Couldn't load pickup availability
Have Questions? Ask an Expert!

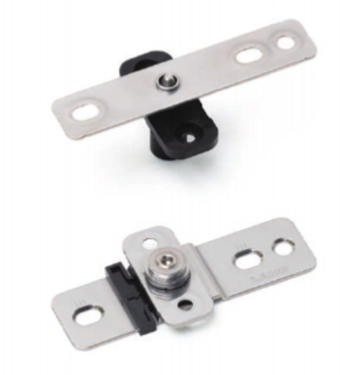

Sugatsune HG-PTH30: Pivot Torque Hinge in Stainless Steel.
- Central pivot with 90 degree opening angle
- Free stop feature holds window open at desired angle
- Not recommended for doors or windows enduring strong wind pressure
- Easily detachable for maintenance and cleaning
- Safety retainer prevents doors and windows from falling off
- Adjusts horizontally (1.5mm in either direction)
- Sold as a set of top and bottom hinge
- Includes mounting screws
Door Dimensions
- Width: 13-3/4" to 19.5/8" (350mm to 500mm)
- Height; 27-9/16" to 47-1/4" (700mm to 1200mm)
- Thickness: 1-3/32" to 1-3/8" (28mm to 35mm)
- Maximum weight: 22 lbs.
