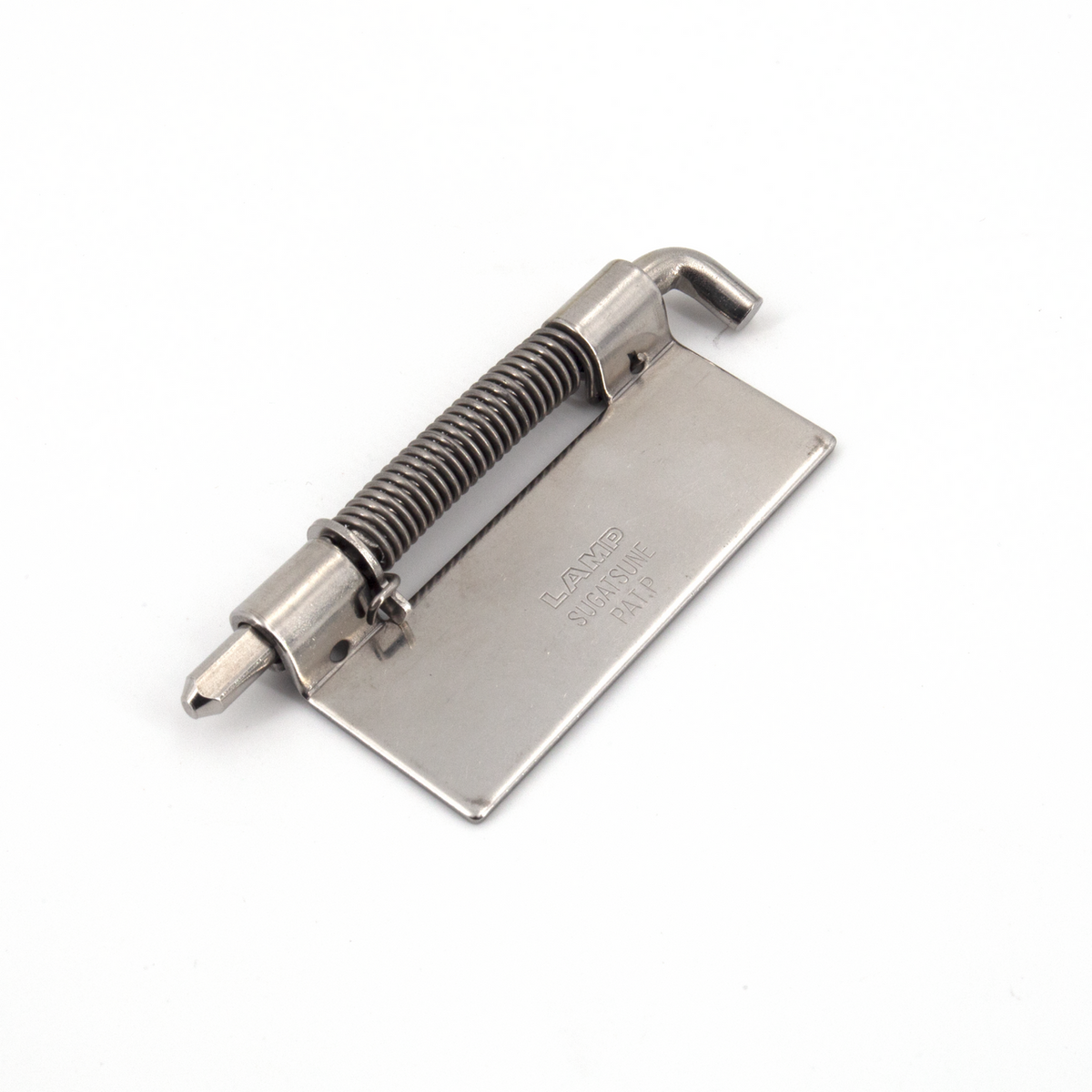

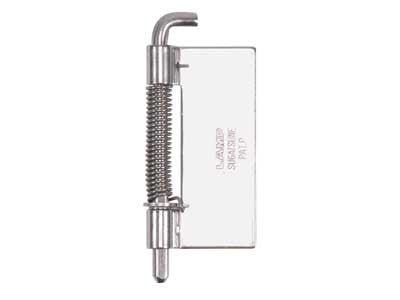

Sugatsune HG-PV60AC-R: Weld-on Spring Loaded Pivot Hinge (right) - Plain Stainless Steel
Regular price
$12.16
Regular price
-15%
$14.30
Sale price
$12.16
IMPORTANT: This item has specific information available that needs to be reviewed before purchasing. Click the button below to see more.
View Complete Product Information HereCouldn't load pickup availability
Have Questions? Ask an Expert!
Sugatsune HG-PV60AC-R: Weld-on Spring Loaded Pivot Hinge (right) in Plain Stainless Steel.
- Weld-on type without screw holes
- Designed to close with spring tension when hinge is back-surface mounted
- 304 grade stainless steel
- Torsion moment: .66 lbs./inch
- Maximum door weight: 4.4 lbs./pair
- Sold by each
Specifications
Height: 3.15″Width: 0.59″
Depth: 1.3″
