Description

Sugatsune HG-RT30: Concealed Torque Cabinet Hinge in Satin Chrome finish.

• Use with top-opening lids
• Hinge completely concealed when door is closed
• Free-stop range (where torque is effective) from 0° to 100° opening angle
• Torque not effective from 100° to 180° opening angle
• Operating temperature: 32°F to 104°F
• Torque rating: 26.5 lbs./inch
• Sold individually
• Mounting hardware not included

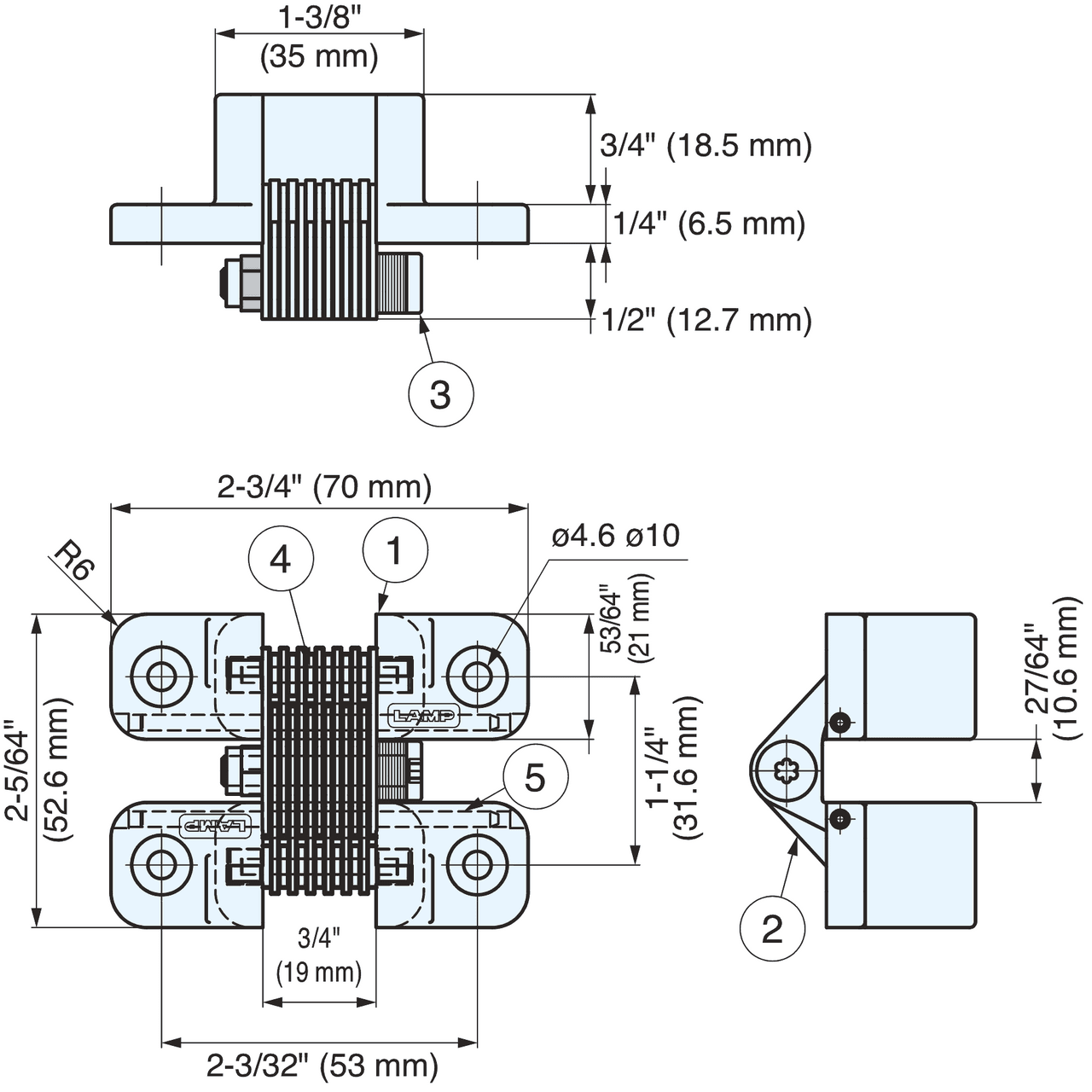

Specifications

Height: 0.8661417322834646″
Width: 2.0866141732283467″
Depth: 2.7559055118110236″
Country of Origin: Japan
