Sugatsune HG-S70-34: Swivel Torque Hinge - Polished Stainless Steel
Sugatsune HG-S70-34: Swivel Torque Hinge - Polished Stainless Steel

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HG-S70-34: Swivel Torque Hinge - Polished Stainless Steel

Sugatsune
|
SKU: suga-HG-S70-34
In stock
(0)
$132.77
-15% $156.20 $132.77
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

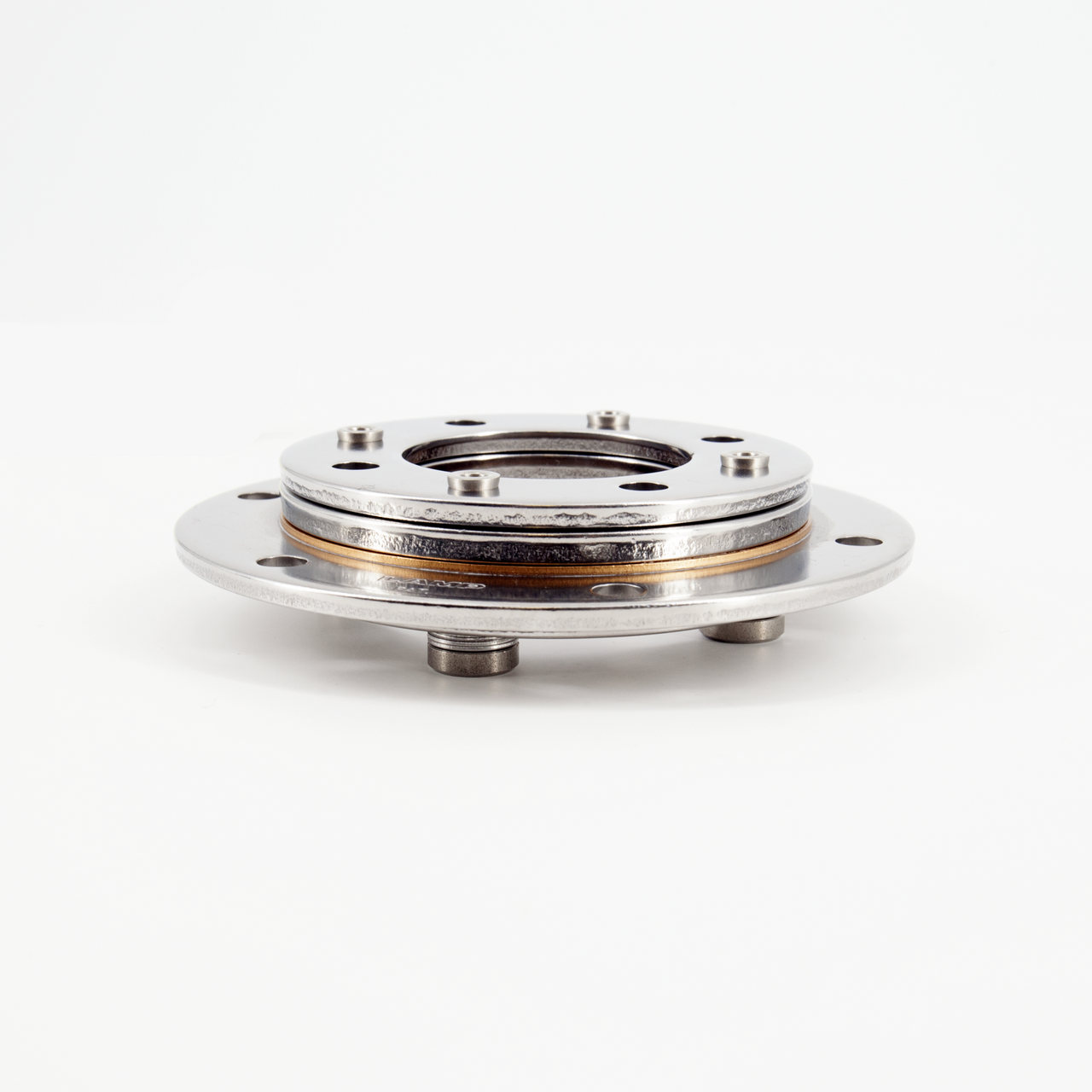

Sugatsune HG-S70-34: Swivel Torque Hinge in Polished Stainless Steel.
  • For Industrial control panels and monitors
  • Rotation angle: 360 degrees
  • Free stop function
  • Do not lubricate
  • For interior use only
  • Sold by each
  • Specifications:
    -Outer diameter: 87mm/3-7/16"
    -Center hole diameter: 34mm/1-5/16"
    -Torque: 62.1 lbs./inch
  • Torque calculation: Torque = door height x .5 x door weight

Specifications

Height: 0.87″
Width: 3.43″
Depth: 3.43″
