Description

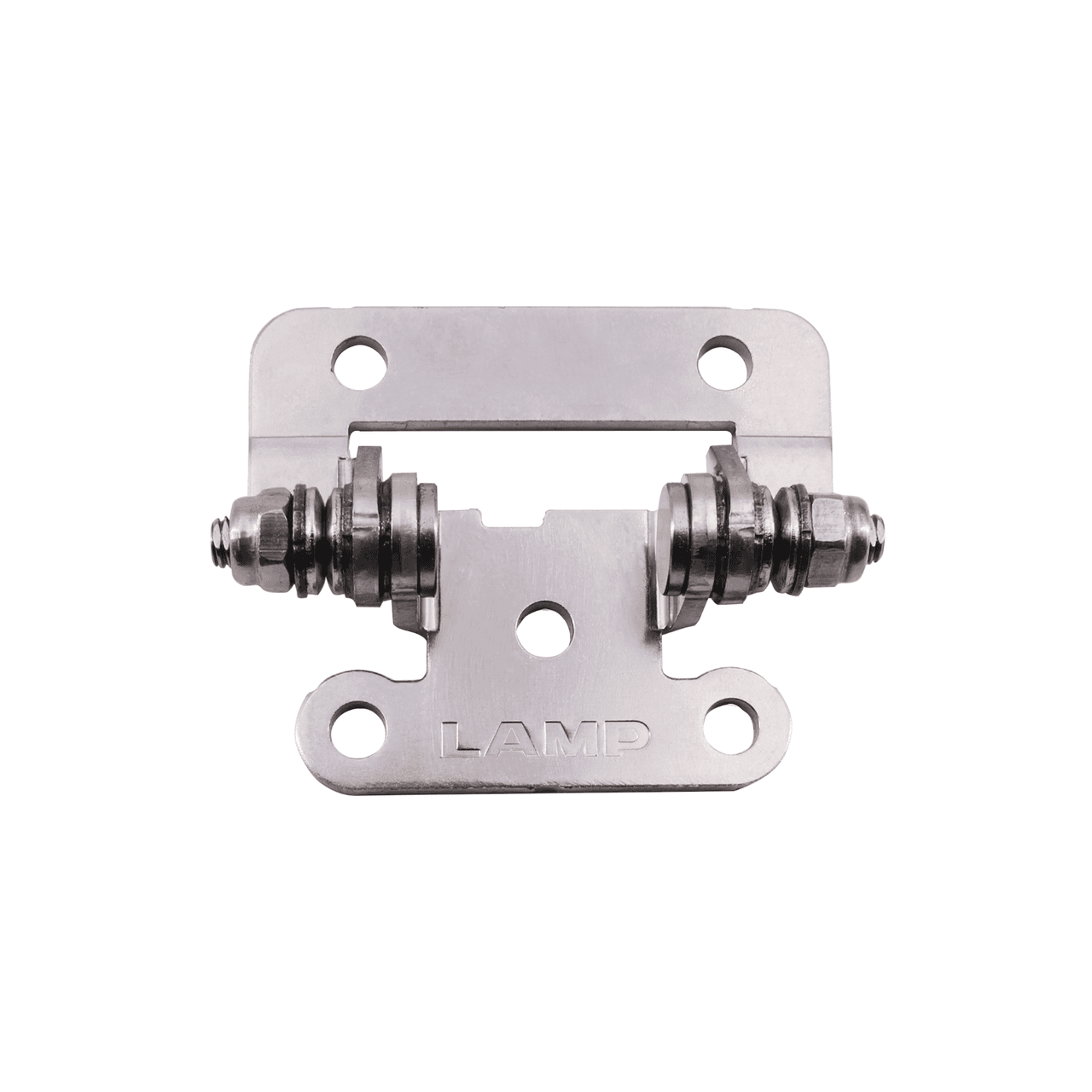

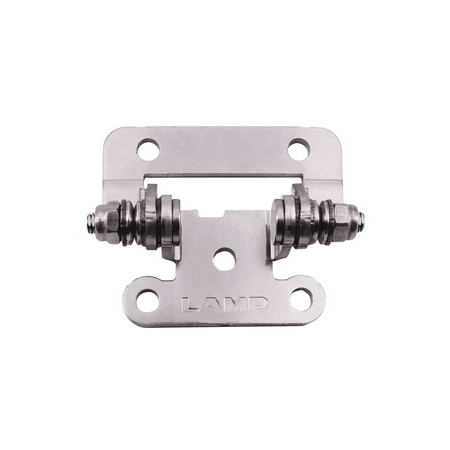

Sugatsune HG-TE15: Torque Hinge in Polished Stainless Steel.

• Designed for small, lightweight lids
• Can be used for horizontal or vertical applications
• Free-stop, holds lid or cover at any angle
• For external surface-mount only
• 304 grade stainless steel
Torque rating: 13.2 lbs./inch, (+40% to -20%)
• Torque calculation: door height x .5 x door weight
• Rubber cover to hide nut and bolt available, sold separately. Order suga-HG-TEC2

Specifications

Height: 1.5748031496062993″
Width: 2.047244094488189″
Depth: 0.531496062992126″
Country of Origin: China
