Sugatsune HG-TQA90-A: 78mm One-Way Torque Hinge (clockwise) - Anodized Aluminum/Black

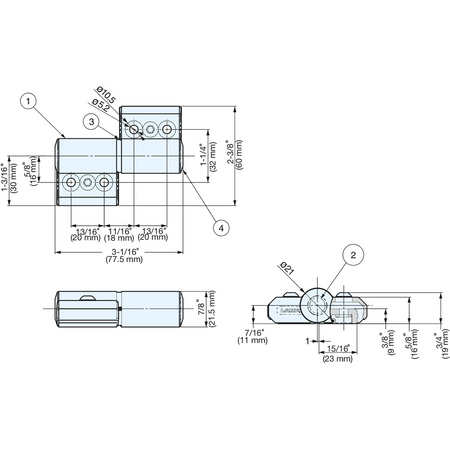

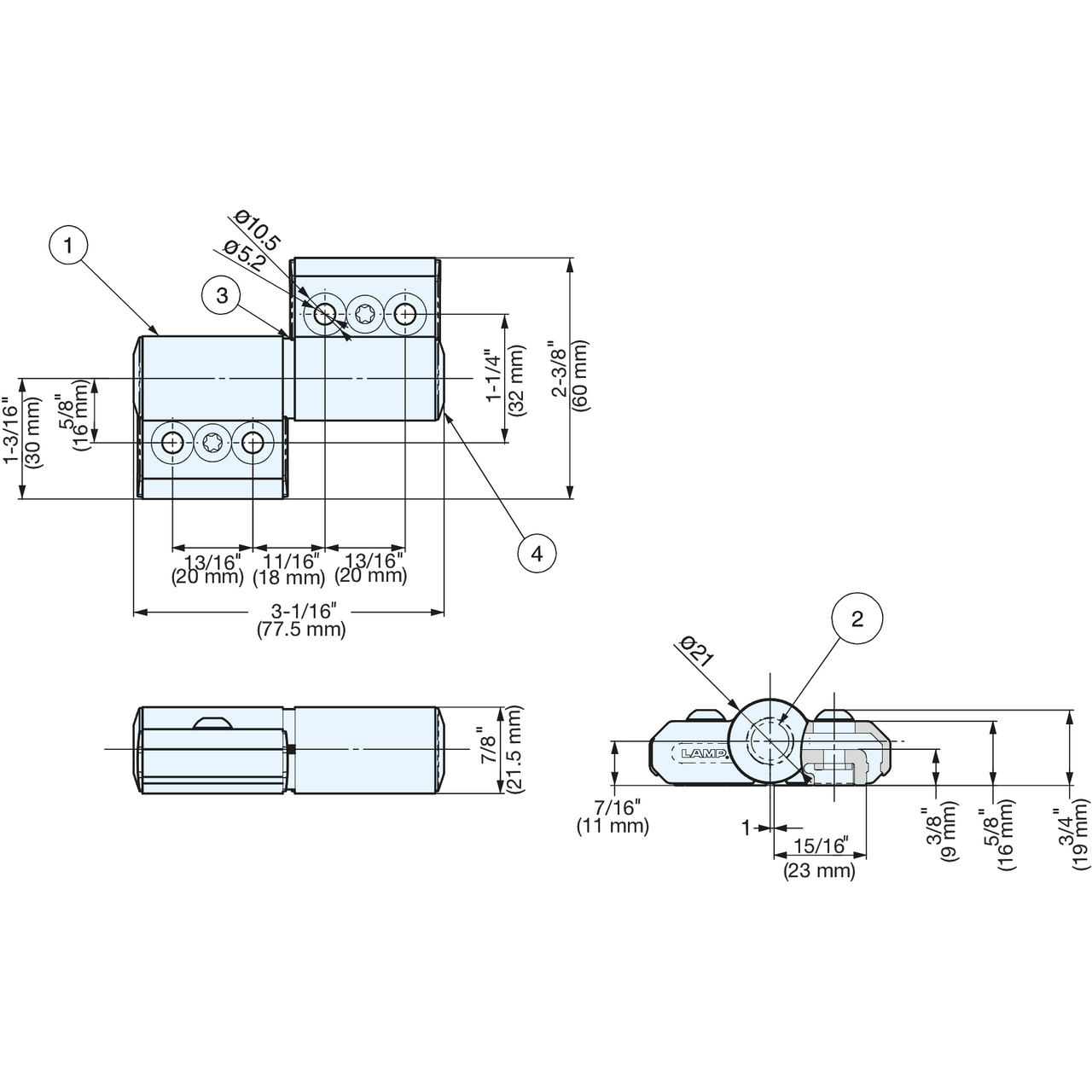

Line Drawing
Sugatsune HG-TQA90-A: 78mm One-Way Torque Hinge (clockwise) - Anodized Aluminum/Black

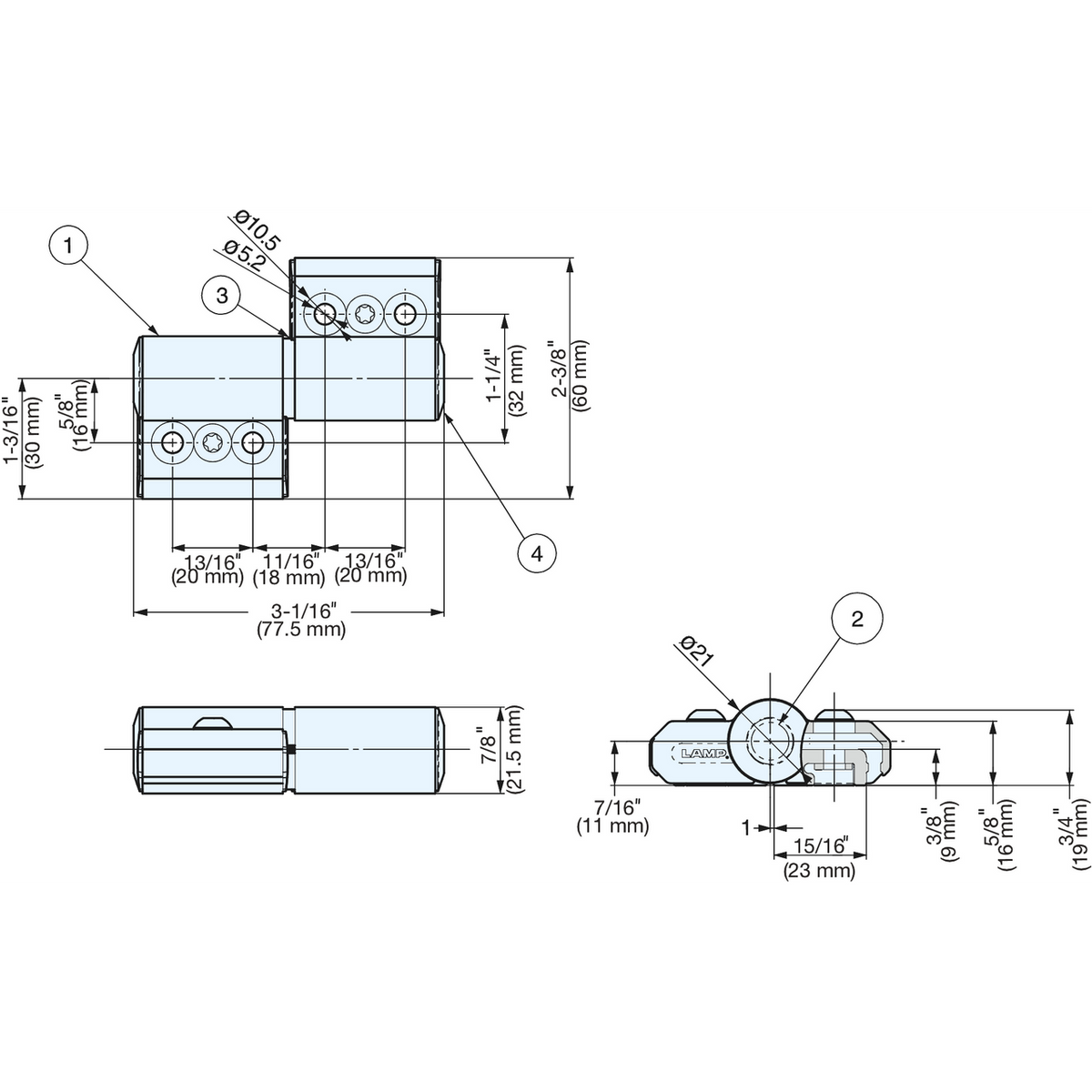

Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HG-TQA90-A: 78mm One-Way Torque Hinge (clockwise) - Anodized Aluminum/Black

Sugatsune
|
SKU: suga-HG-TQA90-A
In stock
(0)
$166.43
-15% $195.80 $166.43

IMPORTANT!

This item has specific information available that should be reviewed before purchasing. Please click the button below to see more.

View Sugatsune Catalog
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

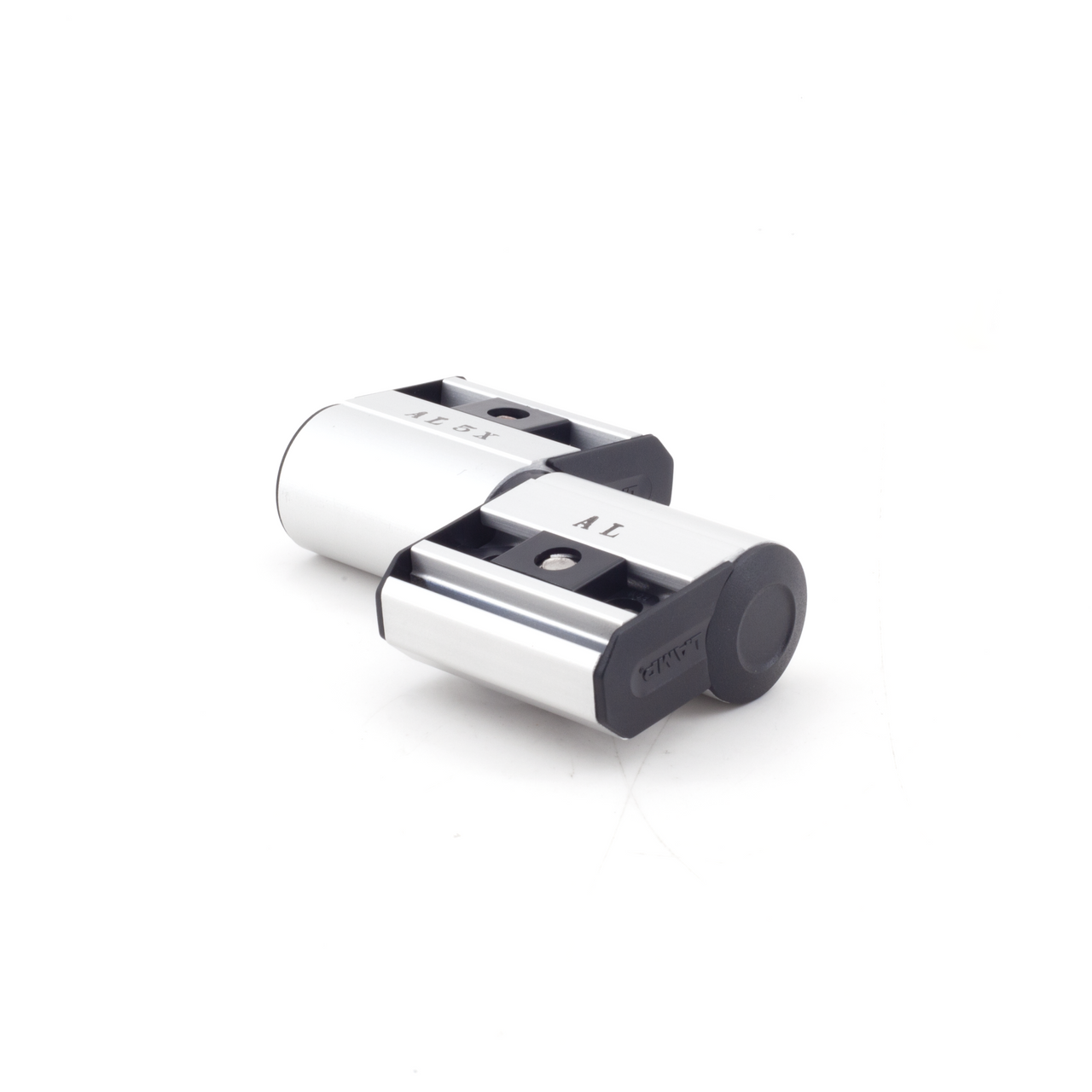

Sugatsune HG-TQA90-A: 78mm One-Way Torque Hinge (clockwise) in Anodized Aluminum/Black finish.
  • Friction in one direction only
  • Constant torque applied when turned clockwise
  • Free rotation when turned counter-clockwise
  • Not suited for vibration environment or high-frequency use
  • Do not lubricate
  • For indoor use only
  • Torque rating: 79.7 lbs./inch per hinge
  • Sold by each
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 2.36″
Width: 3.05″
Depth: 0.75″
