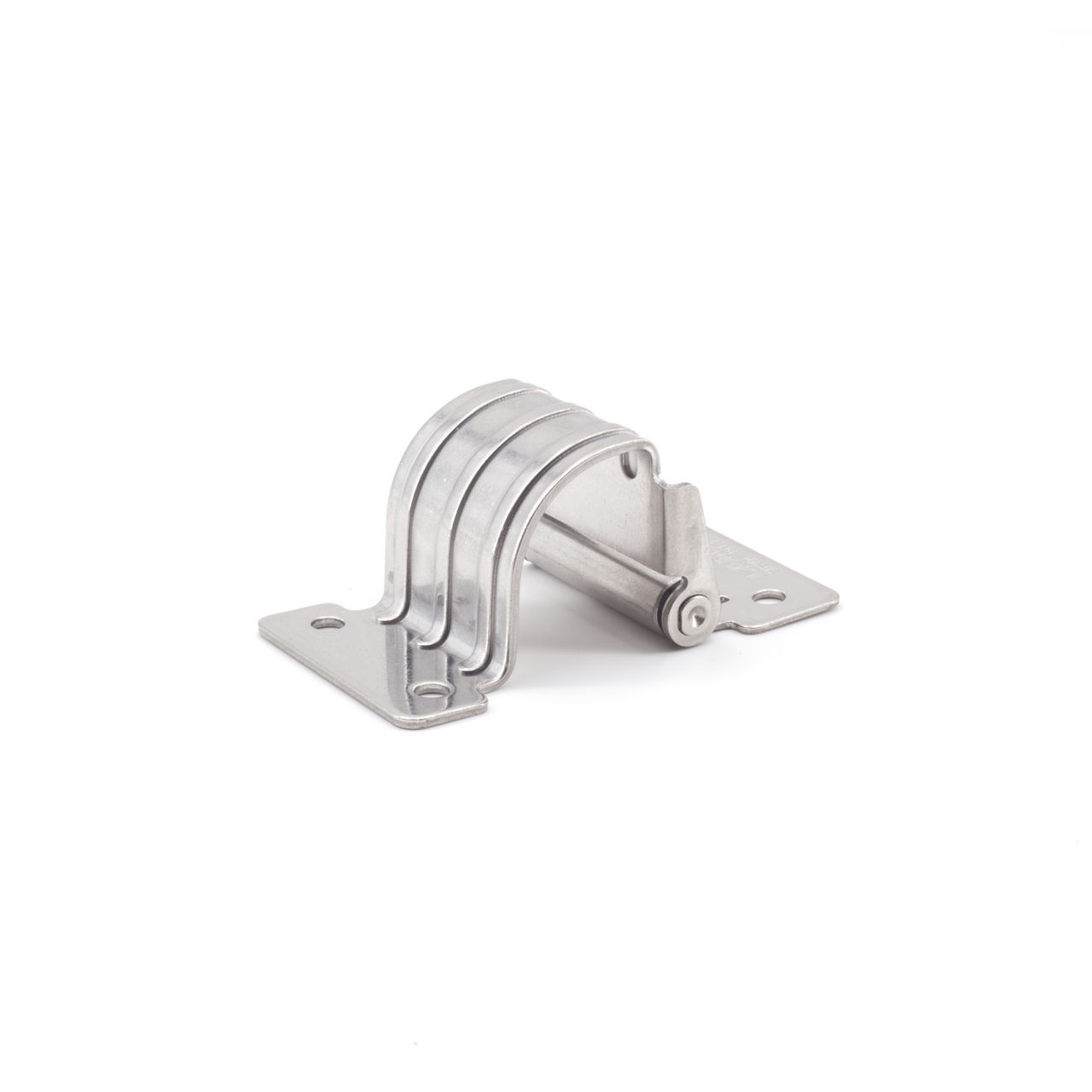

Sugatsune HG-TU03: 90 Degree Hidden Torque Hinge - Polished Stainless Steel

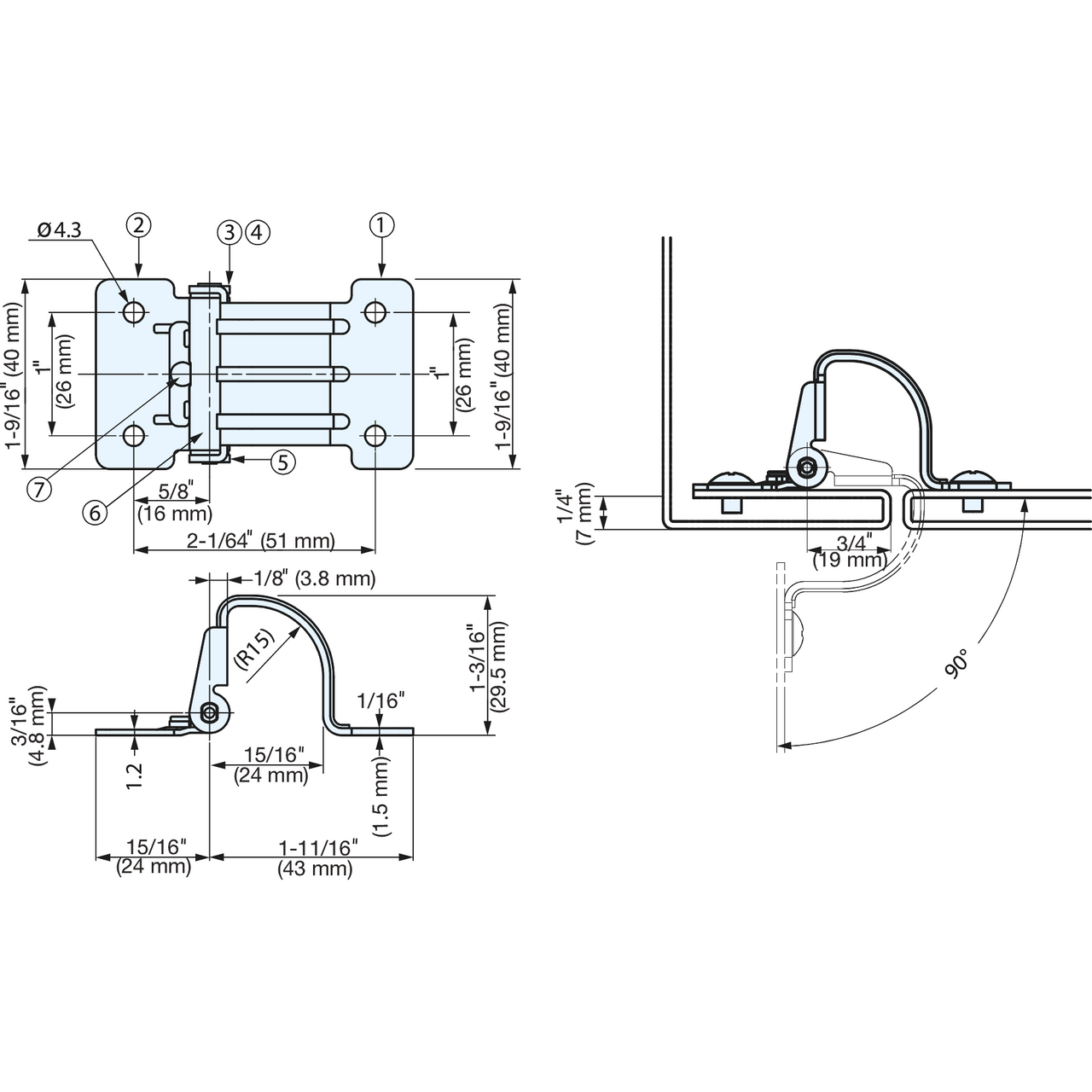

Line Drawing
Sugatsune HG-TU03: 90 Degree Hidden Torque Hinge - Polished Stainless Steel
Line Drawing

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HG-TU03: 90 Degree Hidden Torque Hinge - Polished Stainless Steel

Sugatsune
|
SKU: suga-HG-TU03
In stock
(0)
$30.39
-15% $35.75 $30.39
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us
Sugatsune HG-TU03: 90 Degree Hidden Torque Hinge in Polished Stainless Steel.
  • Installation on the back side of the door
  • 90 degree operating range
  • 430 grade stainless steel
  • Can be used for horizontal or vertical applications
  • Not suitable for high frequency use
  • Do not lubricate
  • For interior use only
  • Torque rating: 3.1 lbs./inch per hinge
  • Sold by each
  • Mounting hardware not included

Specifications

Height: 1.57″
Width: 2.64″
Depth: 1.16″
