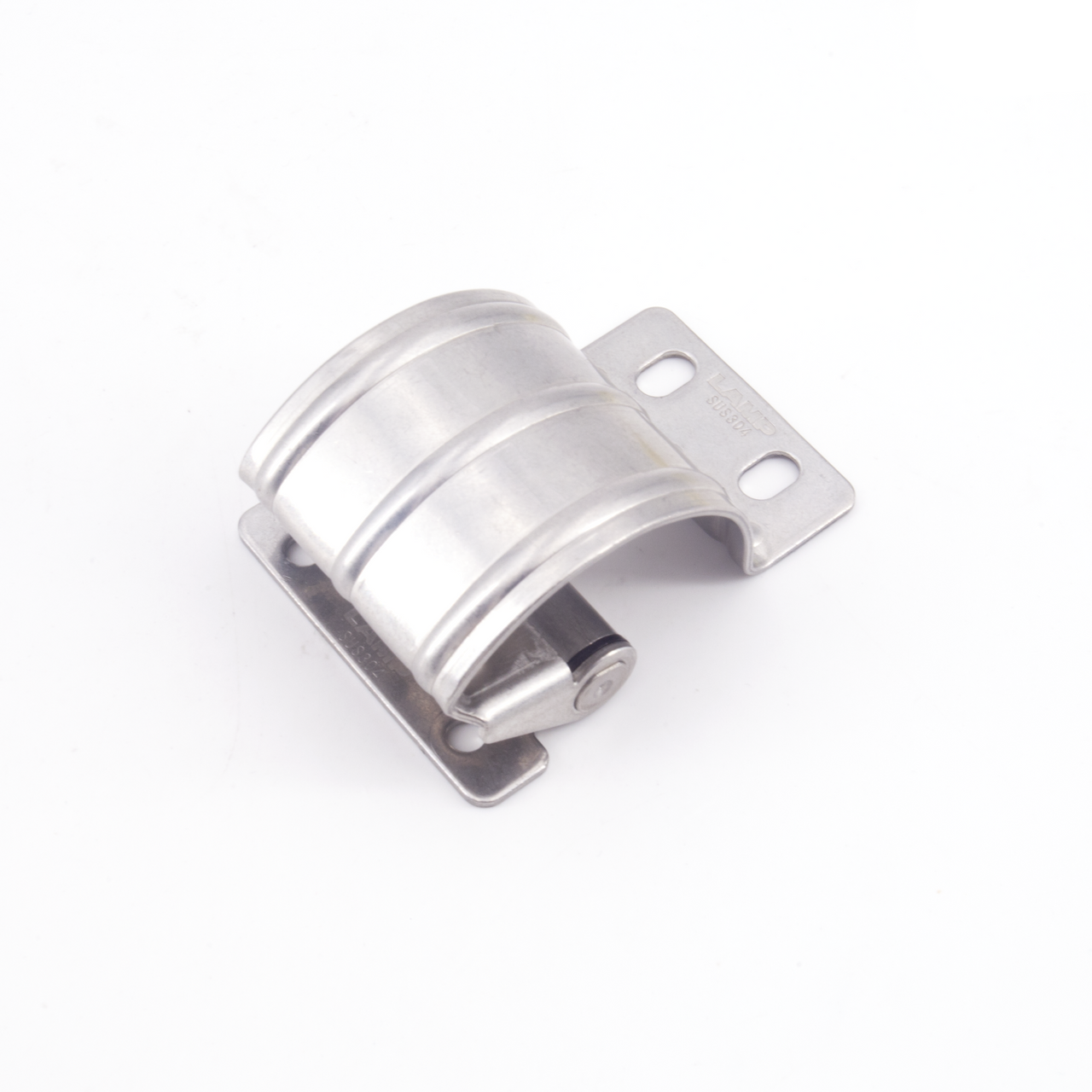

Sugatsune HG-TUWA15: 130 Degree Hidden Torque Hinge - Polished Stainless Steel

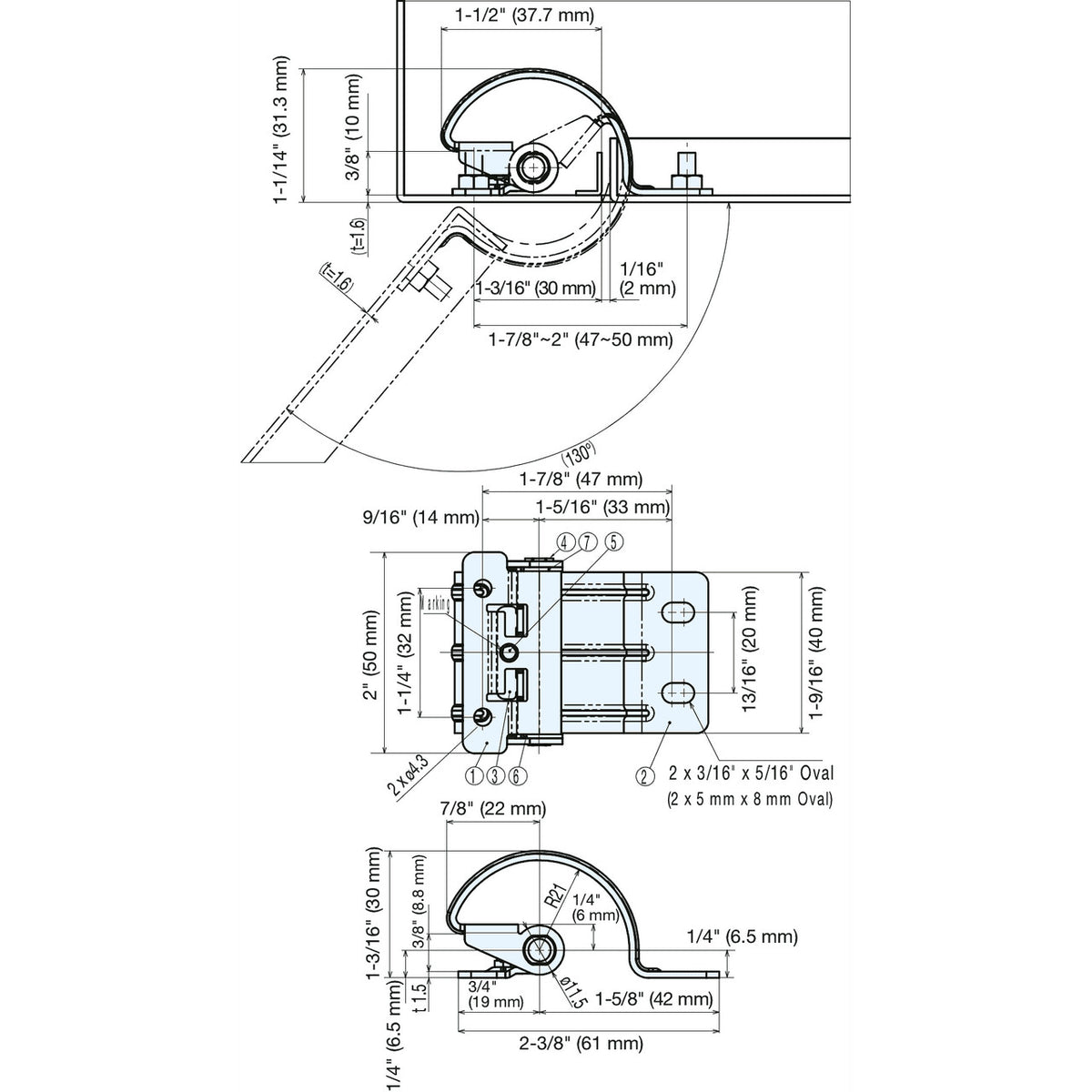

Sugatsune HG-TUWA torque hinge technical drawings
Sugatsune HG-TUWA15: 130 Degree Hidden Torque Hinge - Polished Stainless Steel

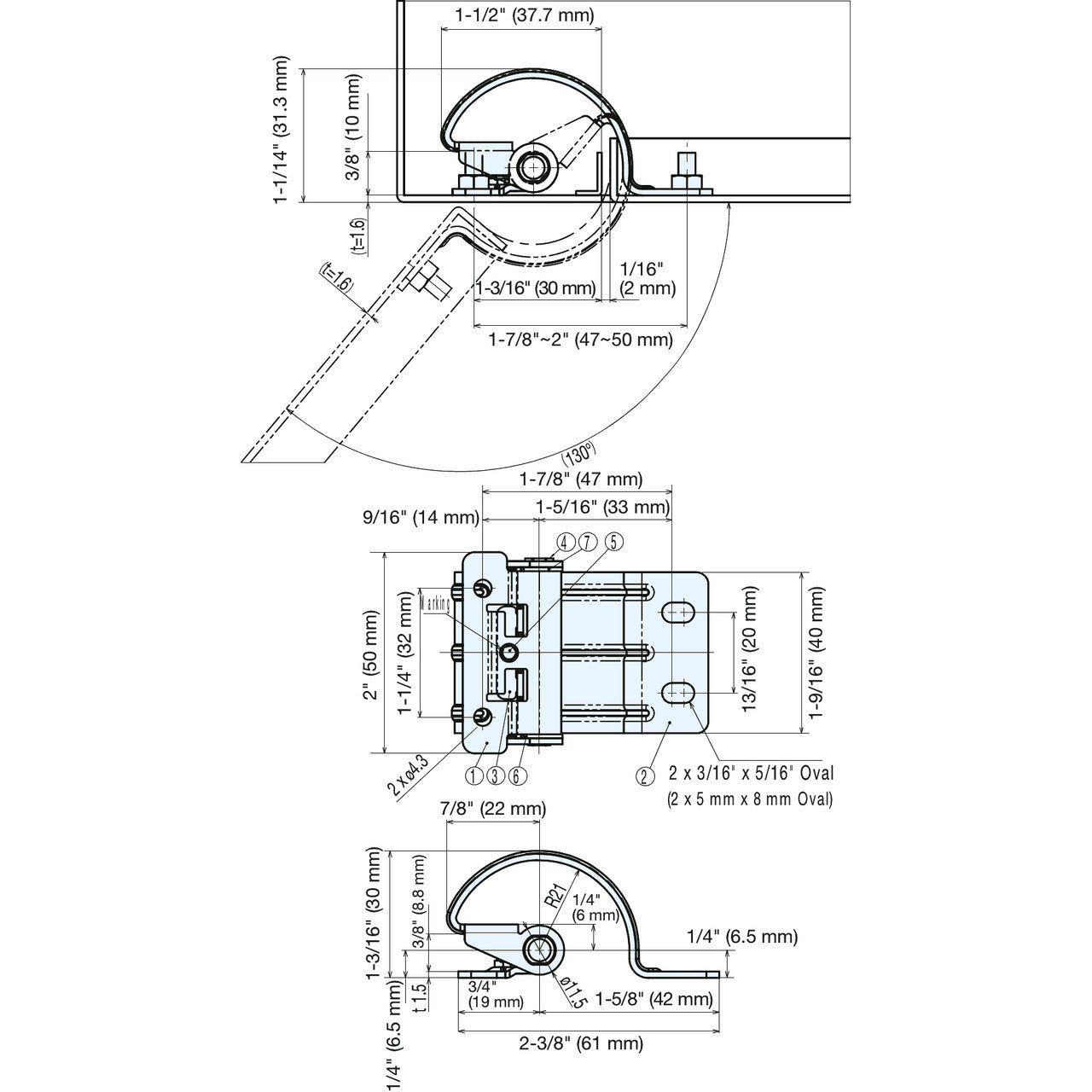

Sugatsune HG-TUWA torque hinge technical drawings

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Sugatsune HG-TUWA15: 130 Degree Hidden Torque Hinge - Polished Stainless Steel

Sugatsune
|
SKU: suga-HG-TUWA15
In stock
(0)
$24.91
-15% $29.30 $24.91

IMPORTANT!

This item has specific information available that should be reviewed before purchasing. Please click the button below to see more.

View Sugatsune Catalog
Usually Ships In 1 to 3 Business Days

Have Questions? Ask an Expert!

888-566-2748 Email Us

Sugatsune HG-TUWA15: 130 Degree Hidden Torque Hinge in Polished Stainless Steel.

  • Installation on the back side of the door
  • High torque with 130 degree operating range
  • 304 grade stainless steel
  • Can be used for horizontal or vertical applications
  • Not suitable for high frequency use
  • Do not lubricate
  • For interior use only
  • Torque rating: 15.3 lbs./inch per hinge
  • Torque calculation: Torque = door height x .5 x door weight
  • Sold individually
  • Mounting hardware not included
Click here to view the Sugatsune catalog page for more information about this item

Specifications

Height: 1.97″
Width: 2.4″
Depth: 1.18″
